Section 3 - Conguration

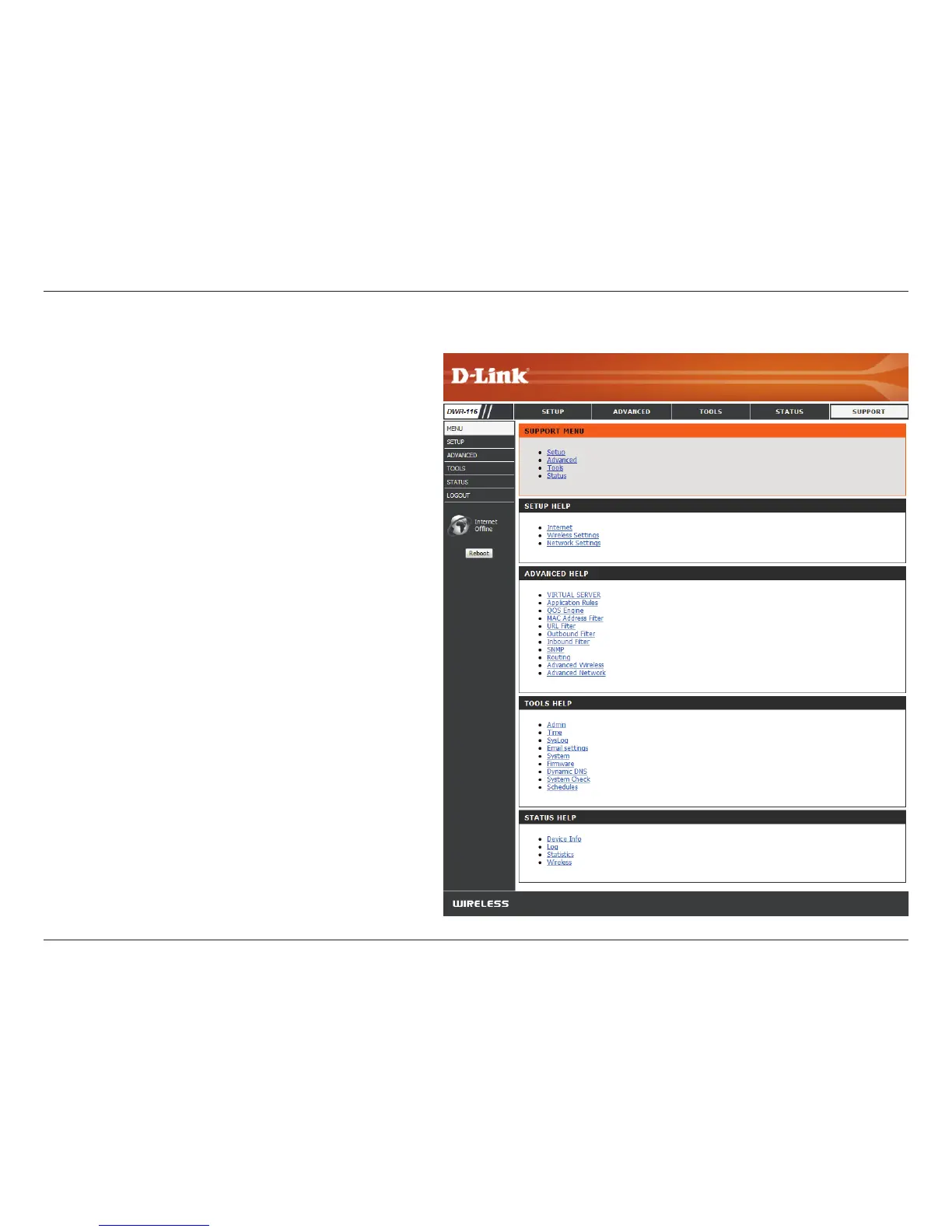

Support
The SUPPORT pages provide help information for each section
of the device’s interface. To view the Support pages, click on
SUPPORT at the top of the screen.

D-Link DWR-116 Specifications

Data Rates and Standards

data rates in 802.11n mode	300, 150, 135, 120, 90, 60, 45, 30, 15 Mbps
data rates in 802.11g mode	6/9/11/12/18/24/36/48/54Mbps
data rates in 802.11b mode	1/2/5.5/11Mbps

Frequency and Security

frequency	2.4 - 2.4835 GHz
wireless security	64/128-bit WEP, WPA & WPA2

Ports and Antenna

ports	4 x LAN (RJ-45), 1x WAN, 1 x USB

Power and Dimensions

power adapter	External 5 V DC 2 A
dimensions	148.5 x 113.5 x 25 mm, 5.85 x 4.47 x .98 inches

Operating Environment

operating temperature	0 to 40 °C, 32 to 104 °F
operating humidity	10% to 95% non-condensing
