D-Link DWR-116 User Manual

47D-Link DWR-116 User Manual
Section 3 - Conguration
Time
Displays the current time and date of the
DWR-116.
Select the appropriate Time Zone from the
drop-down box.
Select this checkbox to automatically
synchronize the DWR-116 with an Internet
time server.
Choose the NTP Server used for synchronizing
time and date.
Shows the result of the last time
synchronization.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.

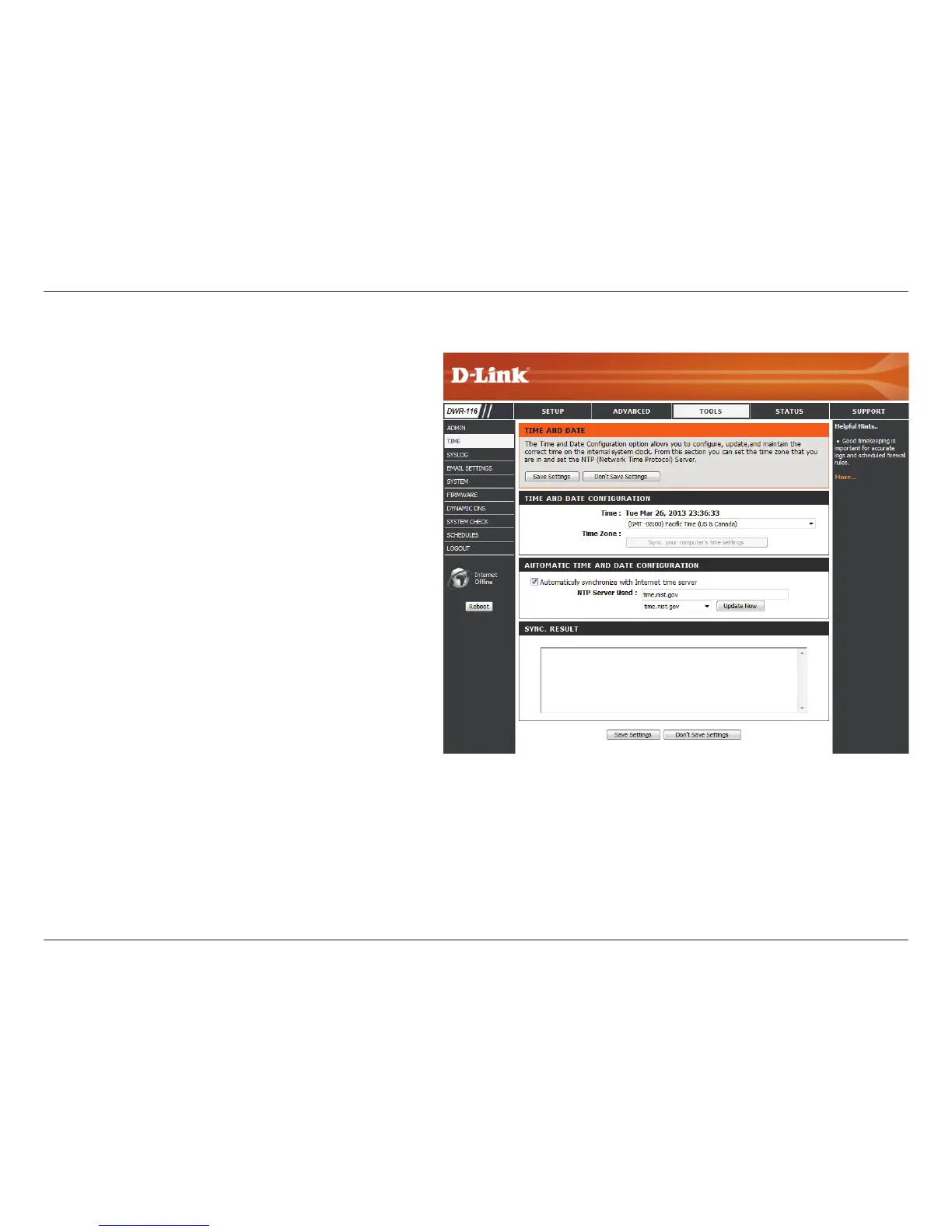

This section will help you set the time zone that you are in and
the NTP (Network Time Protocol) server. Daylight Saving can also
be configured to adjust the time when needed.
Time:
Time Zone:
Automatically
synchronize
with Internet
time server:
NTP Server
Used:
Sync. Result:

D-Link DWR-116 Specifications

Data Rates and Standards

data rates in 802.11n mode	300, 150, 135, 120, 90, 60, 45, 30, 15 Mbps
data rates in 802.11g mode	6/9/11/12/18/24/36/48/54Mbps
data rates in 802.11b mode	1/2/5.5/11Mbps

Frequency and Security

frequency	2.4 - 2.4835 GHz
wireless security	64/128-bit WEP, WPA & WPA2

Ports and Antenna

ports	4 x LAN (RJ-45), 1x WAN, 1 x USB

Power and Dimensions

power adapter	External 5 V DC 2 A
dimensions	148.5 x 113.5 x 25 mm, 5.85 x 4.47 x .98 inches

Operating Environment

operating temperature	0 to 40 °C, 32 to 104 °F
operating humidity	10% to 95% non-condensing
