D-Link DXS-1210 Series User Manual
66

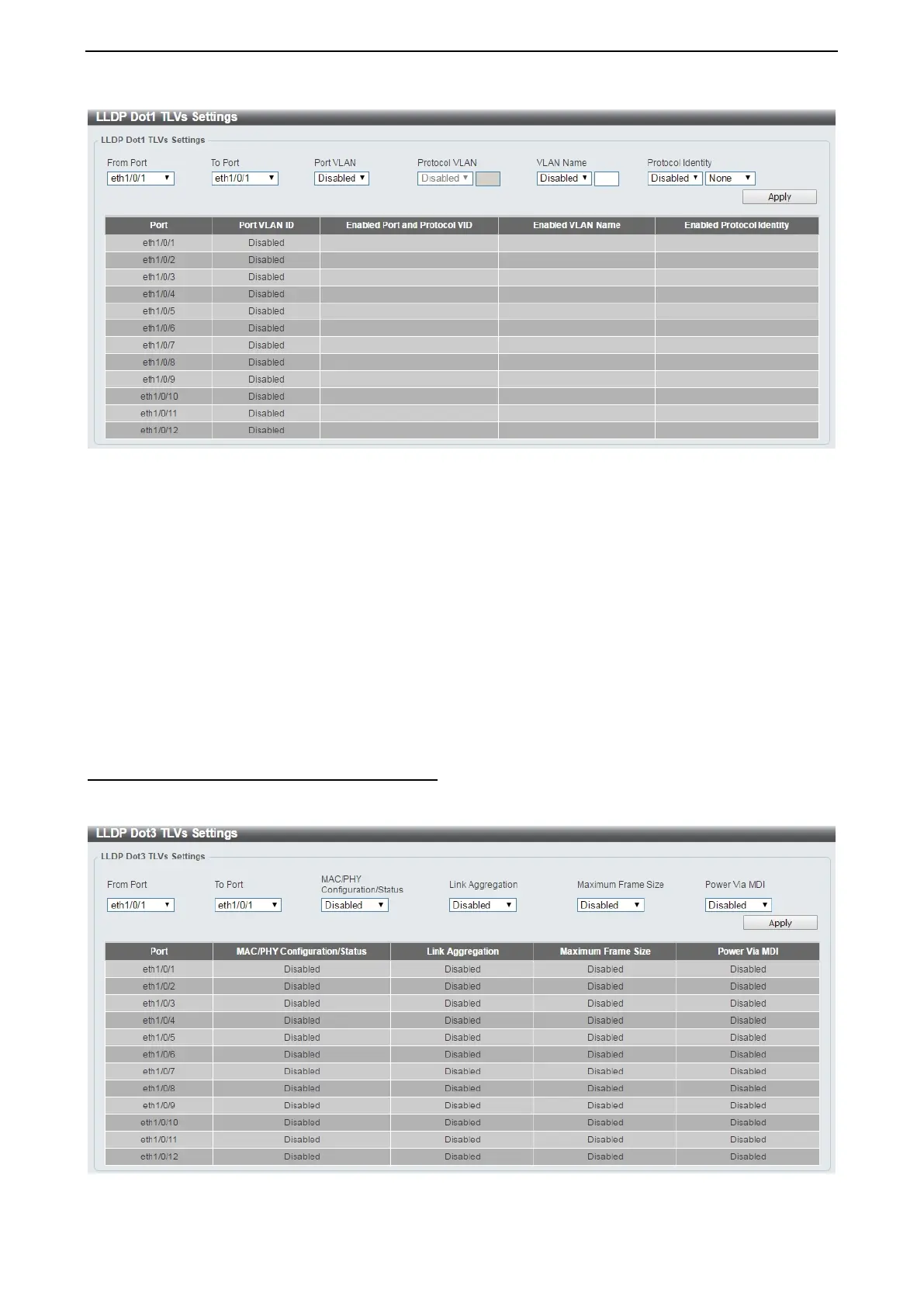

Figure 4.107 – L2 Features > LLDP > LLDP Dot1 TLVs Settings
From Port / To Port: Select the range of ports to be configured.
Port VLAN: Select to enable or disable the port VLAN ID TLV to send. The Port VLAN ID TLV is an optional
fixed length TLV that allows a VLAN bridge port to advertise the port’s VLAN identifier (PVID) that will be
associated with untagged or priority tagged frames.
Protocol VLAN: Select to enable or disable Port and Protocol VLAN ID (PPVID) TLV to send, and enter the
VLAN ID in PPVID TLV.
VLAN Name: Select to enable or disable the VLAN name TLV to send, and enter the ID of the VLAN in the
VLAN name TLV.
Protocol Identity: Select to enable or disable the Protocol Identity TLV to send, and the protocol name.
Options for protocol name to choose from are None, EAPOL, LACP, GVRP, STP, and All.
Click the Apply button to save your settings.
L2 Features > LLDP > LLDP Dot3 TLVs Settings
The LLDP Dot3 TLVs Settings page allows you to configure an individual port or group of ports to exclude
one or more IEEE 802.3 organizational specific TLV data type from outbound LLDP advertisements.
Figure 4.108 – L2 Features > LLDP > LLDP Dot3 TLVs Settings
