D-Link DXS-1210 Series User Manual
80

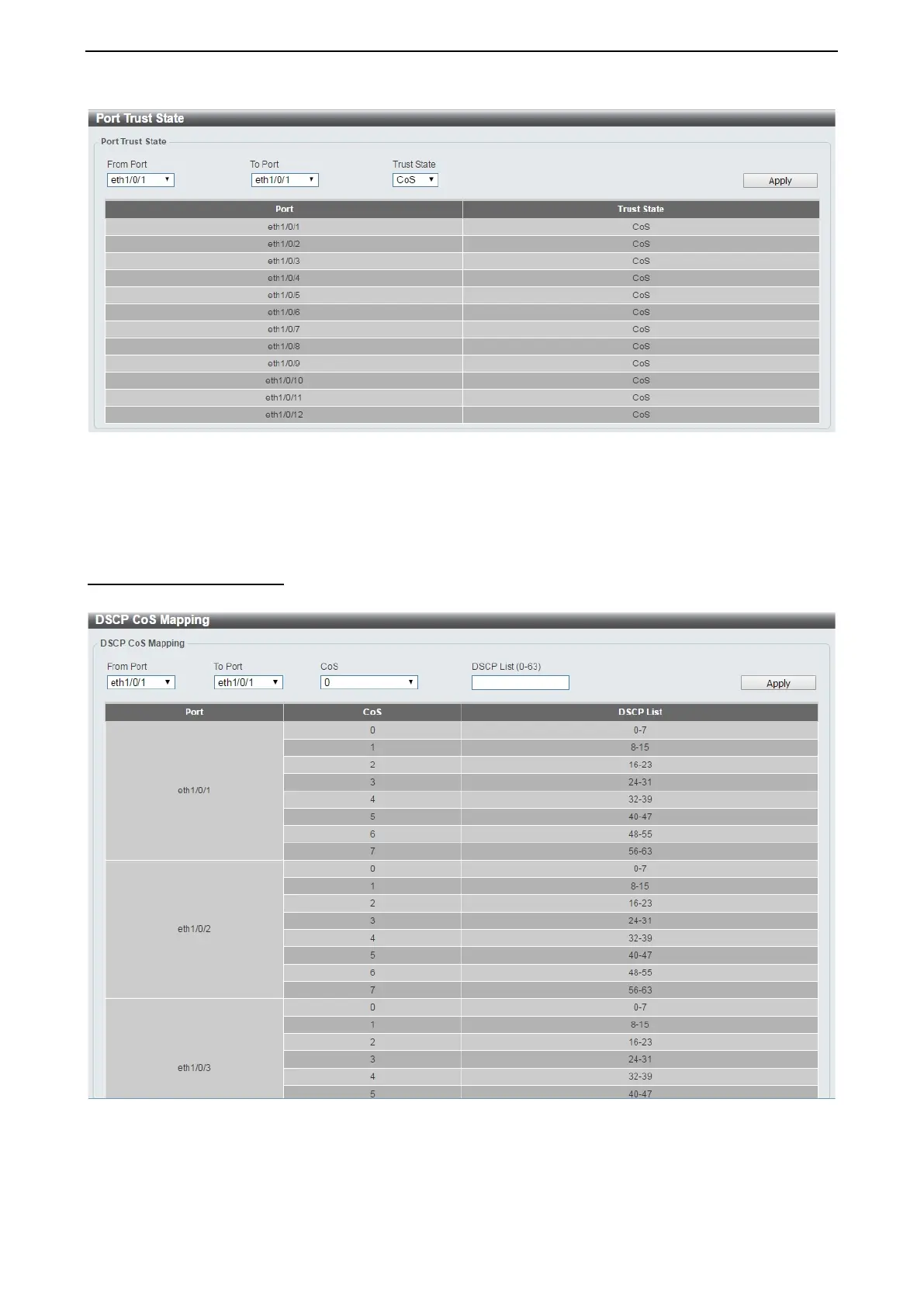

Figure 4.135 – QoS > Port Trust State
From Port / To Port: Select the range of ports to be configured.
Trust State: Select the trust state to be CoS or DSCP.
Click the Apply button to save your settings.
QoS > DSCP CoS Mapping
The DSCP CoS Mapping page allows you to view and configure the DSCP CoS mapping settings.
Figure 4.136 – QoS > DSCP CoS Mapping
From Port / To Port: Select the range of ports to be configured.
CoS: Select the CoS priority.
DSCP List (0-63): Enter the DSCP list number.
