D-Link DXS-1210 Series User Manual
72
Click the Back button to return to the previous window.
State: Select to enable or disable the IPv4 interface’s global state.
Click the Apply button to save your settings.
IP Settings:
Get IP From: Select Static or DHCP. When the Static option is selected, users can enter the IPv4 address
of this interface manually. When the DHCP option is selected, this interface will obtain IPv4 information from
a DHCP server located on the local network.
IP Address: Enter the IPv4 Address for this interface.
Mask: Enter the IPv4 subnet mask for this interface.
Click the Apply button to save your settings.
After clicking the DHCP Client tab, the following page will appear.

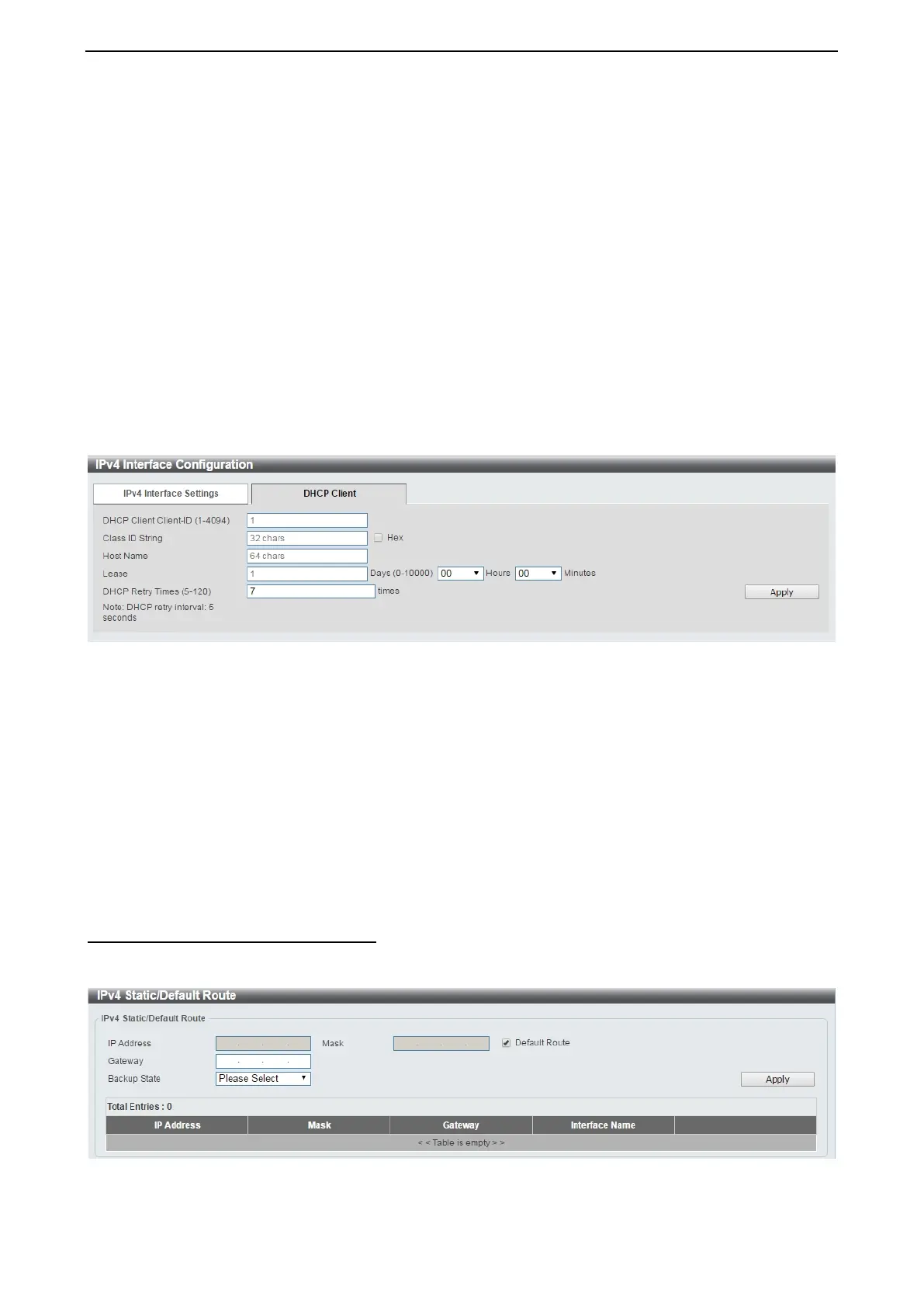

Figure 4.119 – L3 Features > IPv4 Interface – DHCP Client
DHCP Client Client-ID (1-4094): Enter the VLAN interface, whose hexadecimal MAC address will be used
as the client ID to be sent with the discover message.
Class ID String: Enter the vendor class identifier with the maximum of 32 characters. Tick the Hex check
box to have the class identifier in the hexadecimal form.
Host Name: Enter the host name.
Lease: Enter the preferred lease time for the IP address to request from the DHCP server. Enter the day
duration of the lease, or select the hour and minute duration of the lease.
DHCP Retry Times (5-120): Enter the DHCP retry times. The value is between 5 and 120 and default is 7
times.
Click the Apply button to save your settings.
L3 Features > IPv4 Static/Default Route
The IPv4 Static/Default Route page allows you to view and configure the IPv4 static and default route
settings.
Figure 4.120 – L3 Features > IPv4 Static/Default Route
