11

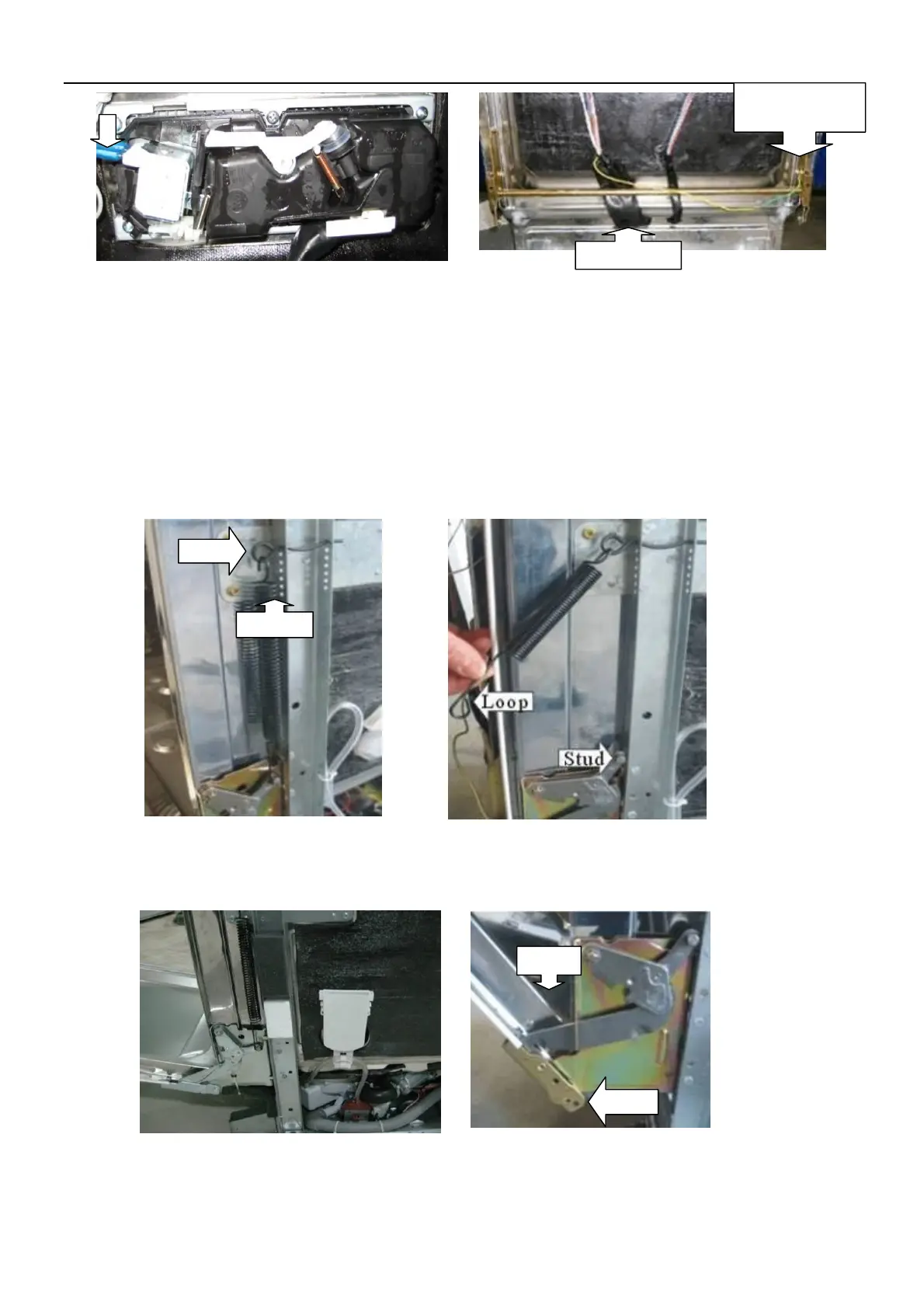

Note: There is a door hinge assembly on both the left and right sides of the
dishwasher. Both door hinge assemblies must be removed in order to
remove the door. The procedure to remove the right- side door hinge
assembly is outlined in steps 12 through 21. The left-side door hinge
assembly is identical.
12. Mark the position of the spring bolt key in the mounting bracket with
a felt-tip marker.
13. Pull the spring and spring bolt key from the mounting bracket.
14. Lift the bottom of the spring loop from the hinge arm stud.
15. Open the dishwasher door approximately 30 degrees.
16. Lift the bottom hinge arm up from the bottom hinge, far enough to expose the hook.
17. Close the dishwasher door.
Caution: The star washer is easily damaged during removal and should not be reused. Order
wire harness
Ground Wire
Hook
To Next Page
