13

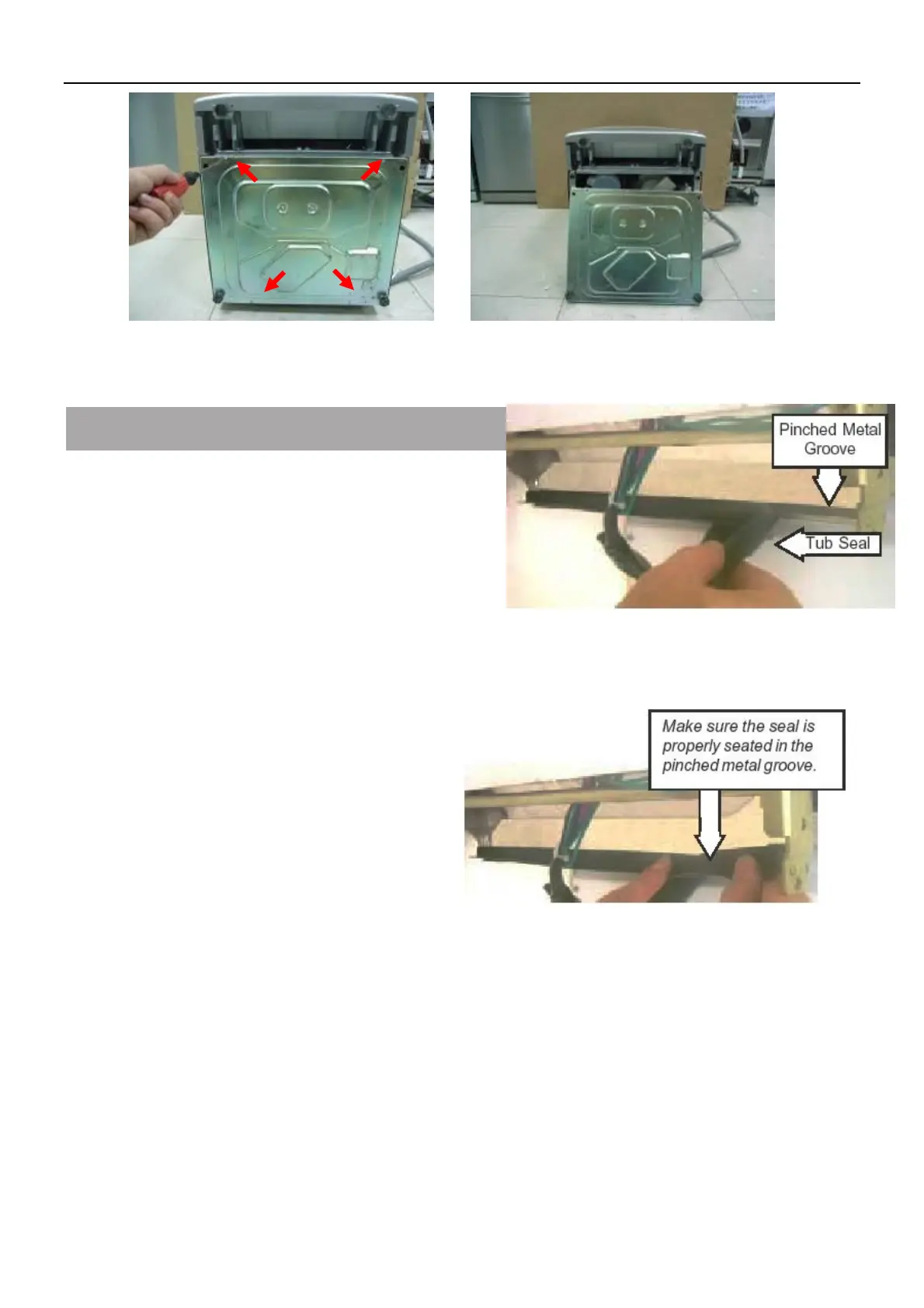

The bottom door seal prevents water leakage.
The seal is fitted in a pinched metal groove at the
bottom of the dish- washer door.
Removal and Replacement
1. Remove the Outer Door.
2. Remove the Door Assembly (see Door assembly).
3. Grab one end of the bottom door seal and peal it away from the pinched metal groove.
Warning: The pinched metal groove is sharp.
Wear Kevlar gloves when removing
or installing the door seal. Failure to
comply may result in personal injury.
4. Reverse the above procedure to install.
Note: When installing the door, seal make sure
it is seated properly in the pinched
metal groove. Run your finger over
the groove to make sure it is smooth
and even for a proper seal.
Bottom Door Seal
