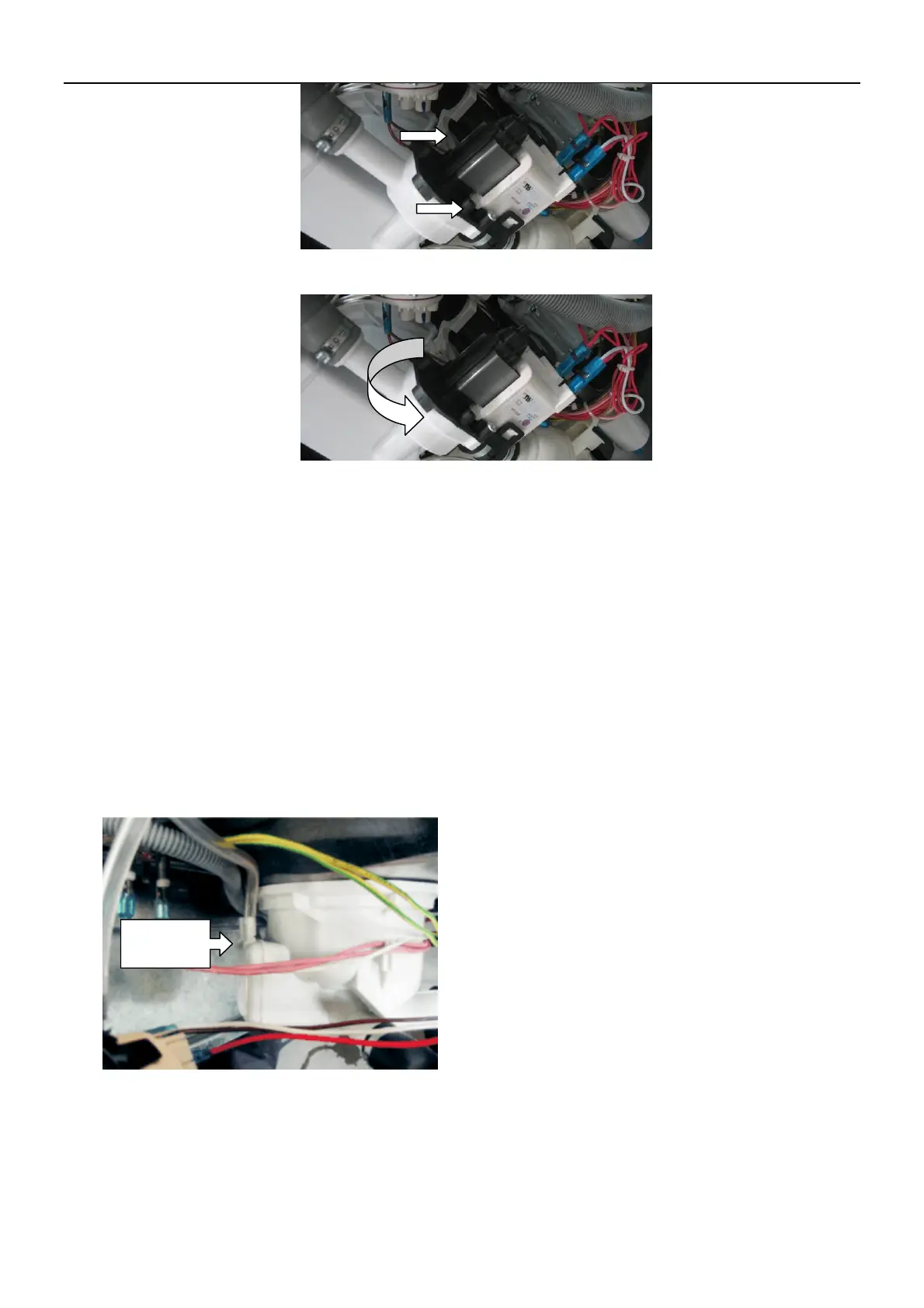

5、remove the pump by rotating the pump for 30°counterclockwise
6、Reverse the above procedure to install
Sump Assembly
The sump assembly consists of the filter assembly, micro-filter, sump clamping nut, sump gasket,
and sump. The filter assembly prevents large particles from reaching the micro-filter, and the
micro-filter prevents all small particles from flowing back to the cycle water. The filter assembly rests
above the sump and the micro-filter sits above the sump basin. The clamping nut fixes the sump to the
bottom of the dishwasher. The filter assembly, micro-filter, and sump clamping nut are assembled from
inside to outside. The gasket and sump are located under the tub bottom in front of the motor pump
assembly.
Removal & replacement
1、disconnect power
2、remove top panel, left/ right panel and bottom board
3、remove the pressure switch hose connected with the sump
Pressure
Switch Hose
To Next Page
