7. CTXG, CTXS, FTXS, CDXS, FDXS, FVXS Series
Functions
7.1 Temperature Control
Definitions of
Temperatures
The definitions of temperatures are classified as following.
îš„
Room temperature: temperature of lower part of the room
îš„
Set temperature: temperature set by remote controller
îš„
Room thermistor temperature: temperature detected by room temperature thermistor
îš„
Target temperature: temperature determined by microcomputer
★
The illustration is for CTXS, FTXS series as representative.
Temperature
Control
The temperature of the room is detected by the room temperature thermistor. However, there is
difference between the temperature detected by room temperature thermistor and the temperature
of lower part of the room, depending on the type of the indoor unit or installation condition.
Practically, the temperature control is done by the target temperature appropriately adjusted for the
indoor unit and the temperature detected by room temperature thermistor.
7.2 Airflow Direction Control
Applicable
Models
CTXG09/12/18QVJUW(S)
CTXS07JVJU
CTXS09/12HVJU
CTXS07LVJU
FTXS09/12/15/18/24LVJU
FVXS09/12/15/18NVJU
Power-Airflow
(Dual) Flap(s)
The large flap sends a large volume of air downward to the floor and provides an optimum control in
cooling, dry, and heating operation.
Cooling/Dry
During cooling or dry operation, the flap retracts into the indoor unit. Then, cool air can be blown far
and distributed all over the room.

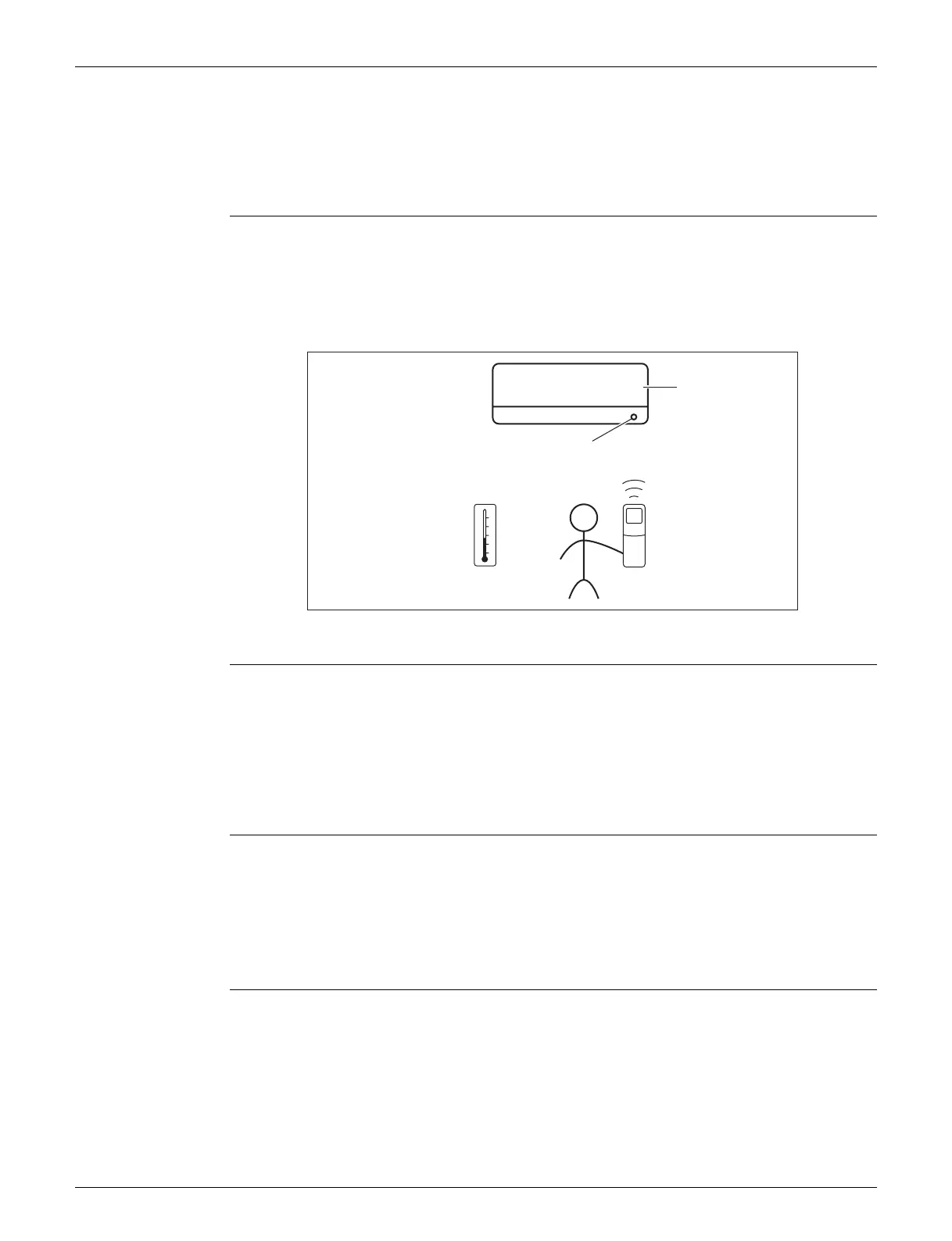

Target temperature
Set temperature
Room temperature
Room thermistor temperature
(R12321)
