Auxiliary pads
You may install auxiliary mounting pads on pumps equipped with through-drive radial ported end caps.
Follow these steps to either remove, replace, or exchange auxiliary mounting pads.
Removal
1. Remove the screws (J130), retaining the cover plate (J110) or auxiliary pump (not shown). Remove the
shipping cover or auxiliary pump and its seal (J120).
2. Remove the drive coupling (J140) if present.
3. Remove the 4 screws (J100) retaining the pad adapter (J080) to the endcap. Discard the pad adapter
O-ring (J090) if present.

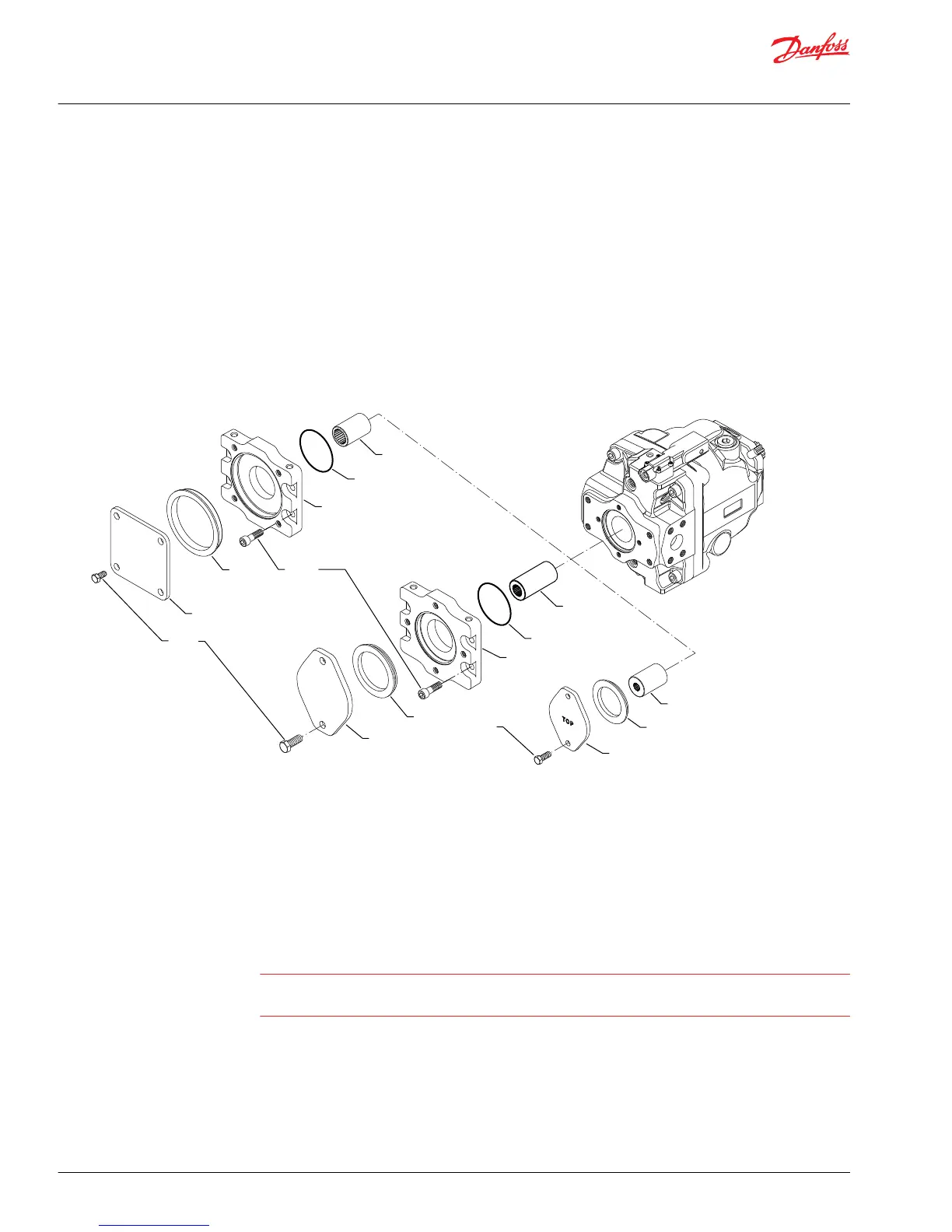

Auxiliary mounting pads
J140
J090 dg
J100
J130
J120
J110
J080
J140
J090 dg
J120
J080
J110
TOP
J120
J140 (Some auxiliary A pads
do not have this coupling)
J110
J131
I10 mm
t47.5 - 61 N•m
[35 - 45 lbf•ft]
h
3
/4 inch
t91 - 111 N•m
[67 - 82 lbf•ft]
P104357
h
9
/16 inch
t37 - 50 N•m
[27 - 37 lbf•ft]
Installation
1. Lubricate new O-ring (J090) with petroleum jelly. Install the pad adapter to the endcap.
2. Install the 4 screws (J100 ) and torque to 47.5 - 61 N•m [35 - 45 lbf•ft].
3. Install the drive coupling (J140) if present.
4. Install shipping cover with seal (J120) or auxiliary pump with O-ring (customer supplied).
C
Caution
Shipping cover is intended only to retain coupling during shipment and storage. Do not operate
pump with coupling and shipping cover installed.
5. Install the screws (J130) and torque to 94 - 115 N•m [67 - 82 lbf•ft]. If you have an auxiliary A pad,
install the screws (J131) and torque to 37 - 50 N•m [27 - 37 lbf•ft].
LS and PC Controls
Disassembly
1. Remove the 4 screws (C300) holding the control housing onto the end cap.
Service Manual
Series 45 E Frame Open Circuit Pumps
Minor repair
30 |
©
Danfoss | September 2016 AX00000024en-US0401
