Angle Sensor
Removal
1. Remove the four sensor housing screws (K195), sensor housing (K265), and sensor housing O-ring
(K175).
2. Remove two locating dowels (K185).
3. Remove two magnet carrier screws (K115) and discard. Remove magnet carrier (K105) from pump
swashplate through housing.
Screws (K115) must be discarded after disassembly. Used magnet carrier screws may loosen and lead
to premature failure. Ensure that new screws with locking compound are utilized.
During O-ring removal from sensor housing, be careful not to damage or scratch seal area .

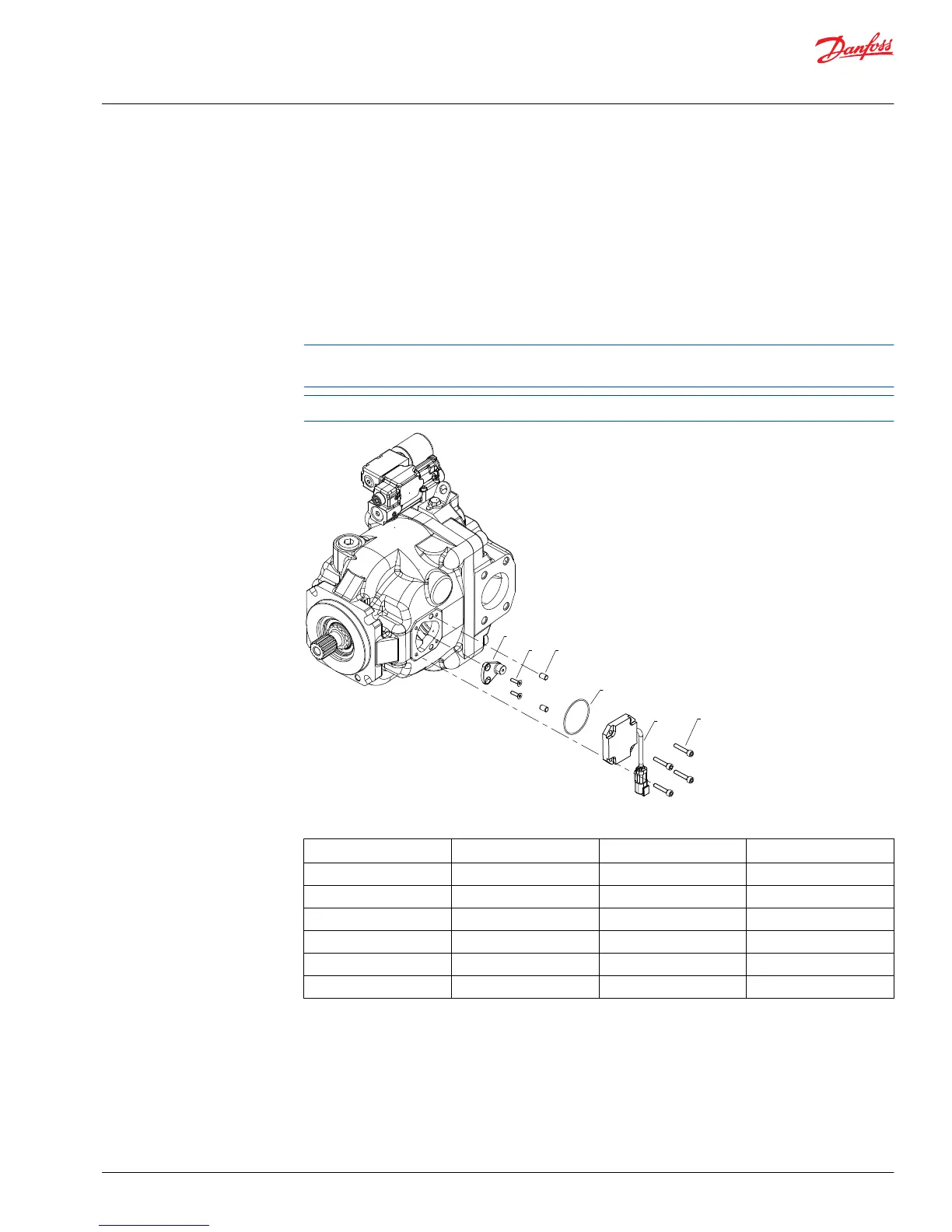

Right side
P108840
K105
K115
K185
K175
K265
K195
Item Description Wrench size Torque
K105 Magnet carrier -
K115 Carrier screws - 4.5 Nm [3.35 lbf ft]
K175 O-ring - -
K185 Locating dowels - -
K195 Screws 5.9 Nm [4.35 lbf ft]
K265 Housing - -
Inspection
1. Carefully examine the angle sensor housing for mechanical damages, cracks, or scratched surfaces.
2. Check the angle sensor connector for breaks, pin deformation, or contamination.
3. Check sensor wiring for heat damage, scuffing/chafing, or kinks.
4. Check sensor seal area for contamination and surface damage
Service Manual
Series 45 E Frame Open Circuit Pumps
Minor repair
©
Danfoss | September 2016 AX00000024en-US0401 | 37
