Plug and fitting sizes and torques
If any plugs or fittings are removed from the unit during service, install and torque as indicated here. This
drawing is a composite. Your configuration may differ but here is the appropriate wrench size and
torque:

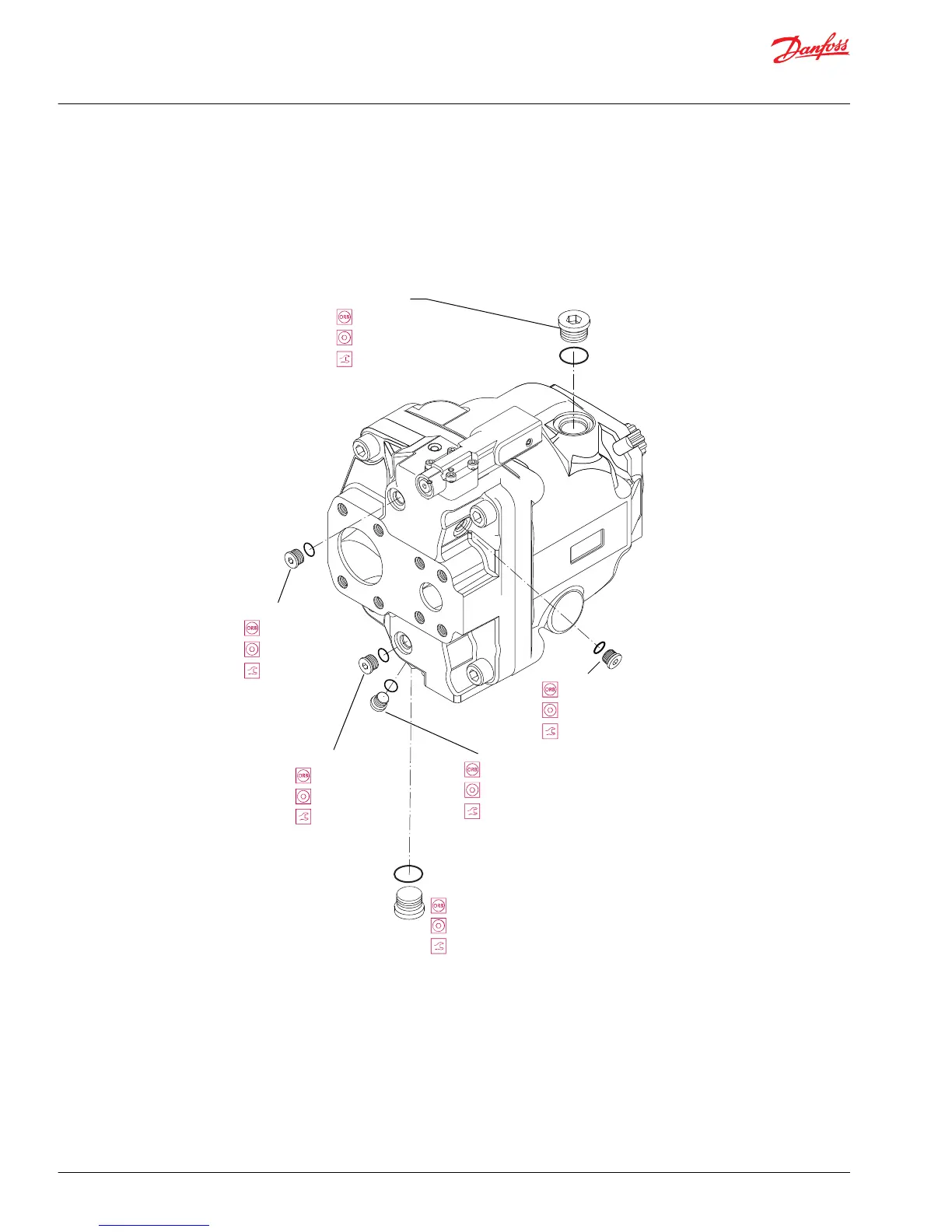

Plug locations, sizes, and torques
K040
1-1/16 inch
9/16 inch
95-135 N•m
[70-100 lbf•ft]
J040
9/16 inch
1/4 inch
20.5-27 N•m
[15-20 lbf•ft]
J042
9/16 inch
1/4 inch
36-50 N•m
[27-37 lbf•ft]
L020
3/4 inch
5/16 inch
41-95 N•m
[30-70 lbf•ft]
P104060
J041
9/16 inch
1/4 inch
20.5-27 N•m
[15-20 lbf•ft]
K070
1-1/16 inch
9/16 inch
95-135 N•m
[70-100 lbf•ft]
Service Manual
Series 45 E Frame Open Circuit Pumps
Minor repair
40 |
©
Danfoss | September 2016 AX00000024en-US0401
