Datalogic QuickScan Lite QW2400 User Manual

Enter/Exit Programming Mode Datalogic 2 of 5
160 QuickScan™ Lite QW2400
Datalogic 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for Datalogic 2 of 5 Length
Control on page 159. Length 1 is the minimum label length if in Variable Length
on page 154 Mode, or the first fixed length if in Fixed Length on page 154
Mode. The length includes the bar
code’s data characters only.
The length can be set from 2 to 50 characters in increments of two. See "Set
Length 1" on
page 257 for more detailed programming instructions.
$CD2L1

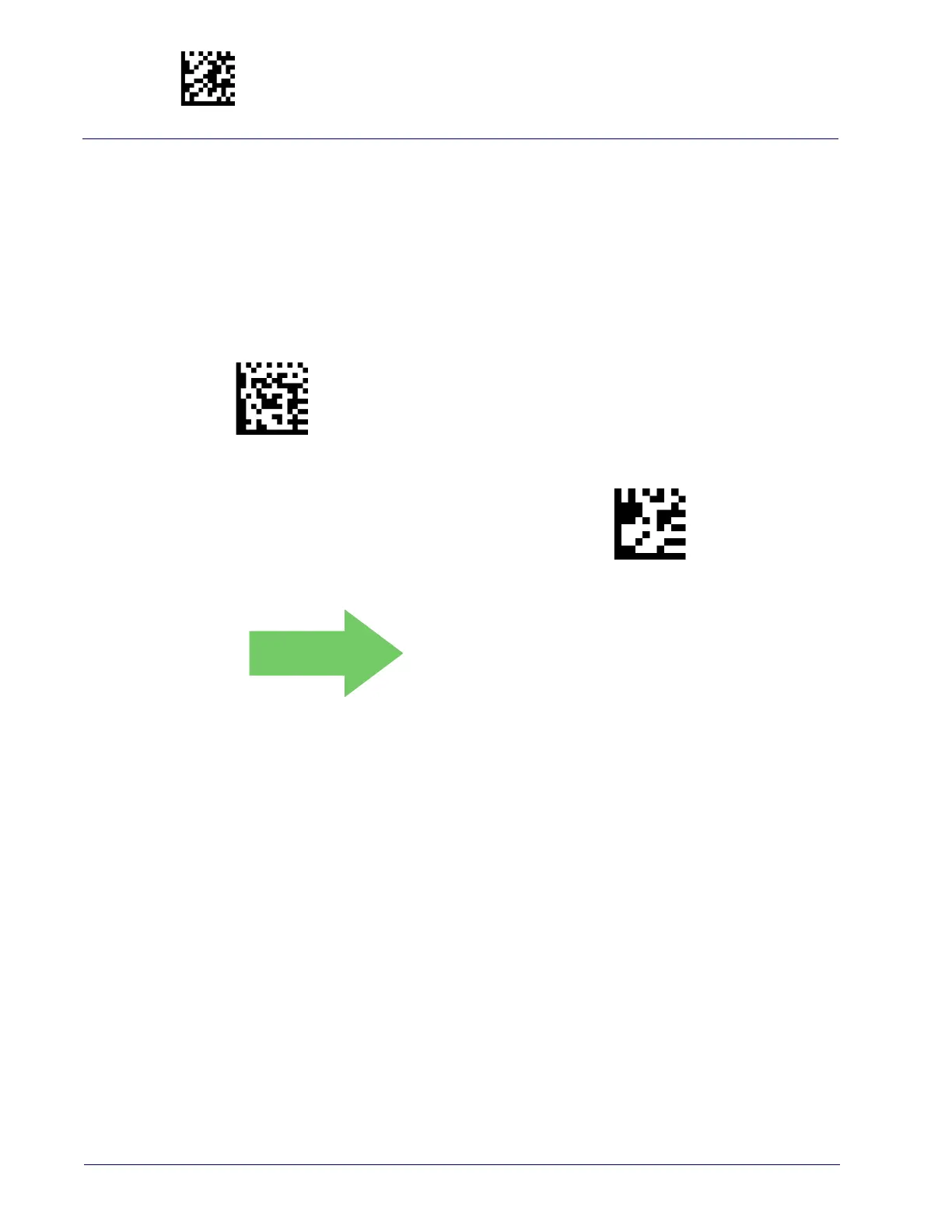

Select Datalogic 2 of 5 Length 1 Setting
To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save
the entry string. You can then start again at the
beginning.
~
CANCEL
DEFAULT
06 = Length 1 is 6 Characters

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
