Datalogic QuickScan Lite QW2400 User Manual

Enter/Exit Programming Mode Codabar
168 QuickScan™ Lite QW2400
Codabar Set Length 2
This feature specifies one of the bar code lengths for Codabar Length Control
on page 166. Length 2 is the maximum label length if in Variable Length on
page 166 Mode, or the second fixed length if in Fixed Length on
page 166
Mode. The length includes the bar code’s sta
rt, stop, check and data charac-
ters. The length must include at least one data character.
The length can be set from 3 to 50 characters. A setting of 00 specifies to
ig
nore this length (only one fixed length). See "Set Length 2" on
page 259 for
more detailed programming instructions.
$CCBL2
Select Codabar Length 2 Setting

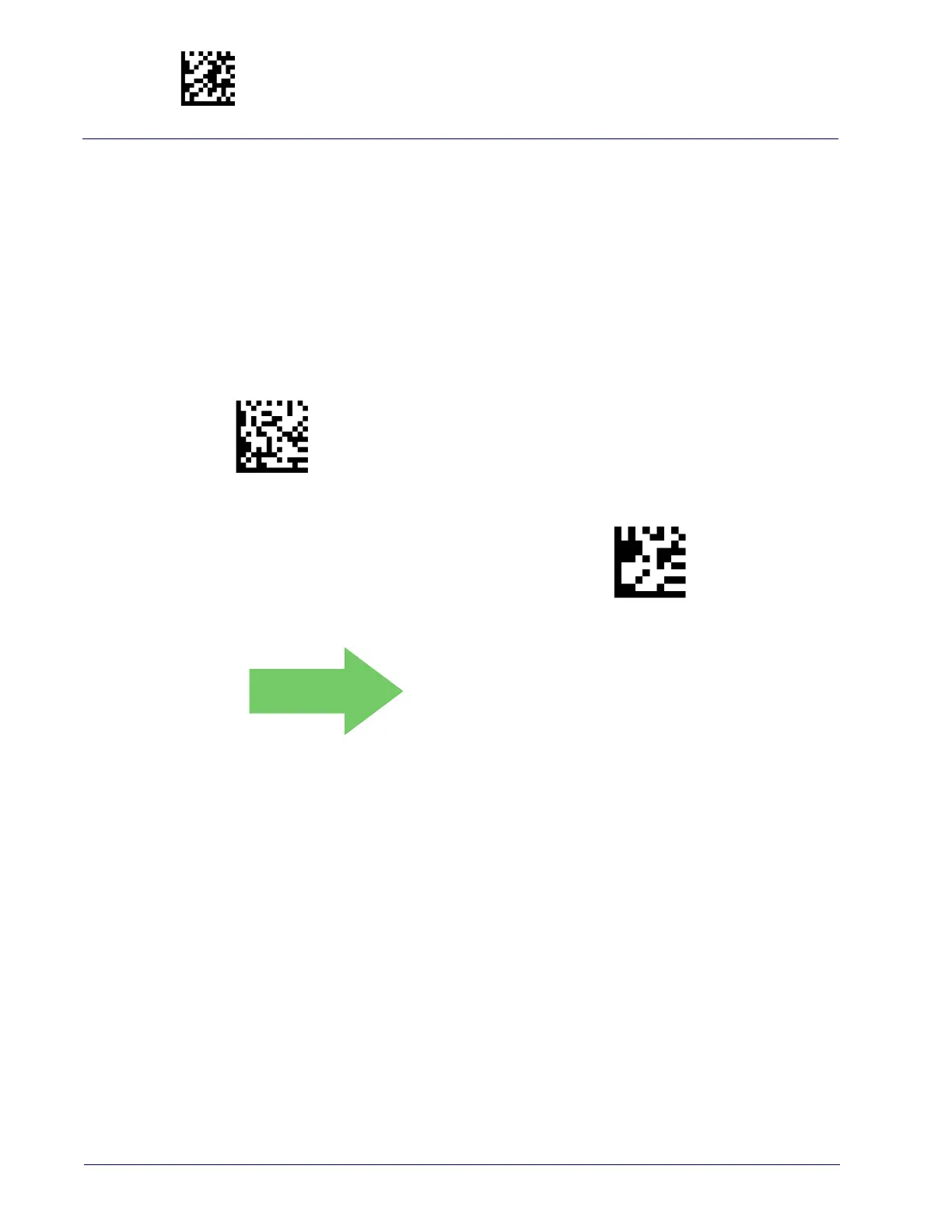

To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save
the entry string. You can then start again at the
beginning.
~
CANCEL
DEFAULT
50 = Length 2 is 50 Characters

Datalogic QuickScan Lite QW2400 Specifications

General

IP Rating	IP42
Connectivity	Wired
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-40 to 70 °C / -40 to 158 °F
Light Source	Red LED
Interface	USB, RS-232
Drop Resistance	1.5 m / 5 ft
Reading Range	Up to 30 cm / 11.8 in (depending on barcode density)
Dimensions	6.7 x 2.8 x 2.6 in
Print Contrast Ratio	25%
Decode Capability	1D, 2D codes
Resolution	4 mils
Depth of Field	5 - 30 cm (depending on barcode density and type)
Power Supply	5 VDC
Humidity	5 to 95% (Non-condensing)
