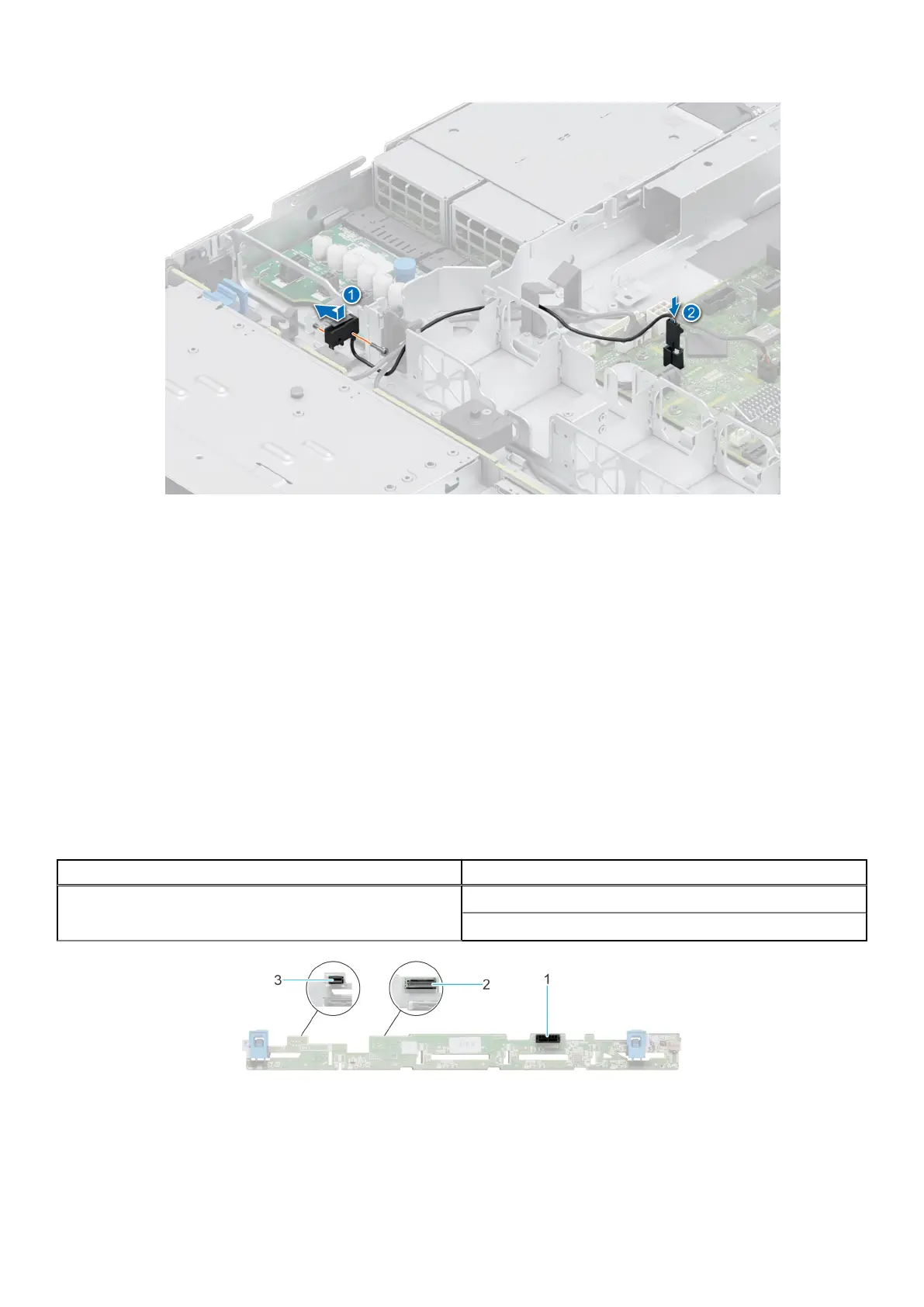

Figure 18. Installing the intrusion switch
Next steps
1. Install the air shroud.
2. Follow the procedure listed in After working inside your system.
Drive backplane
This is a service technician replaceable part only.
Drive backplane
Depending on your system configuration, the drive backplanes supported for R350 system are listed here:
Table 11. Supported backplane options for R350 system
System Supported hard drives options
PowerEdge R350
3.5 inch (x4) SAS, SATA backplane
2.5 inch (x8) SAS or SATA backplane
Figure 19. 4 x 3.5-inch drive backplane
1. BP_PWR_1 (backplane power and signal cable to PIB)
2. BP_DST_SA1 (SAS/SATA connector)
3. BP_PWR_CTRL (backplane power)
32
Installing and removing system components
