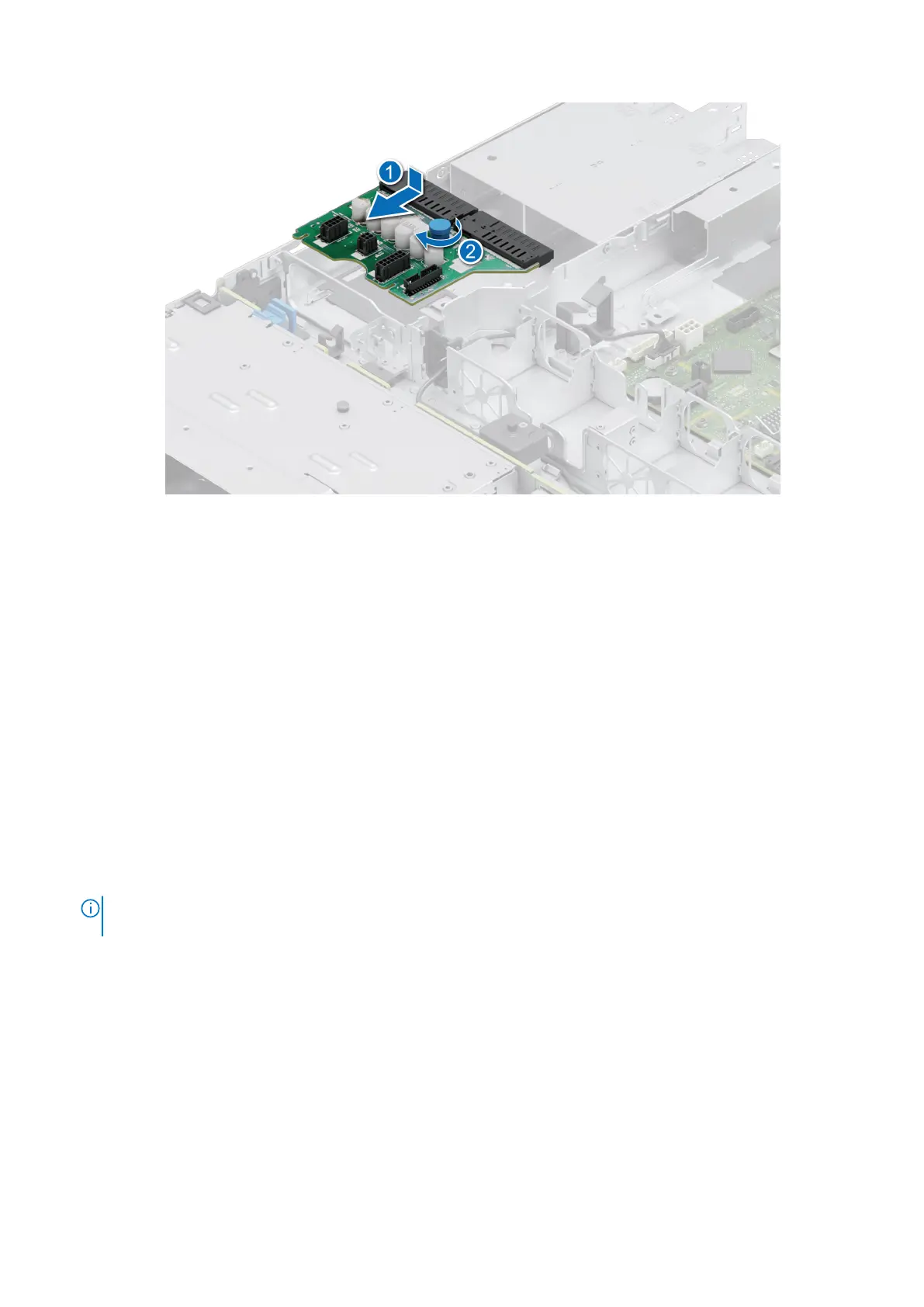

Figure 72. Installing the power interposer board
3. Reconnect all the required cables.
Next steps
1. Install the PSU.
2. Install the air shroud.
3. Follow the procedure listed in After working inside your system.
Optional IDSDM module
Removing the IDSDM module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If you are replacing the IDSDM card, remove the MicroSD cards.
NOTE:
Before removing the SD cards, label them temporarily with the corresponding slot numbers. Reinstall the SD
cards into the corresponding slots.
Steps
Holding the blue pull tab, lift the IDSDM card out of the system.
Installing and removing system components
77
