Expansion card installation guidelines

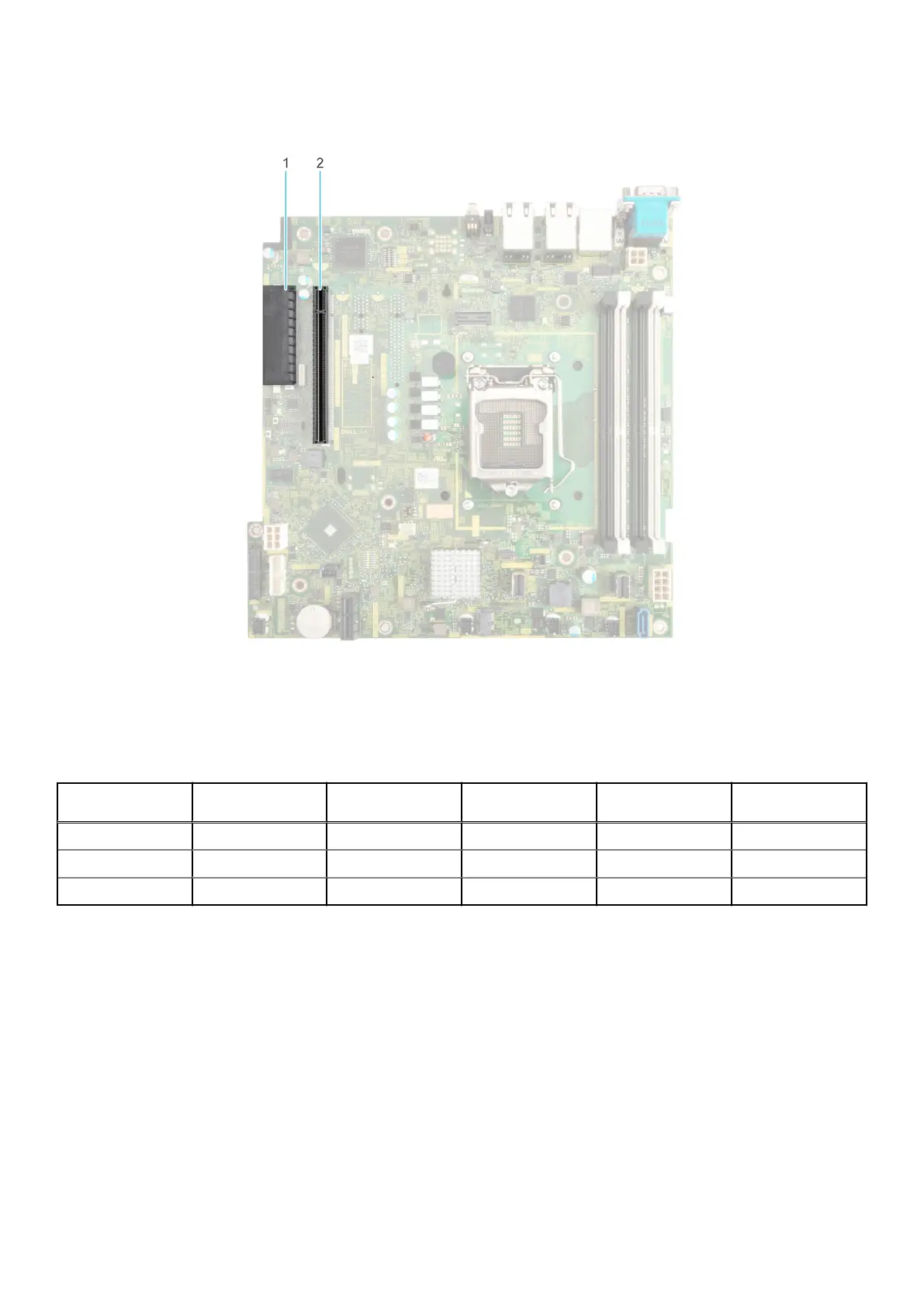

Figure 45. Expansion card slot connectors
1. Internal PERC connector
2. Butterfly riser connector
The following table describes the expansion card riser configurations:
Table 21. Expansion card riser configurations
Expansion card
risers
PCIe Slots Controlling
processor
Height Length Slot width
NA INT Processor 1 Half Height Half length x8
Riser 2 Processor 1 Half Height Half length x16
Riser 1 Processor 1 Half Height Half length x8
Installing and removing system components 55
