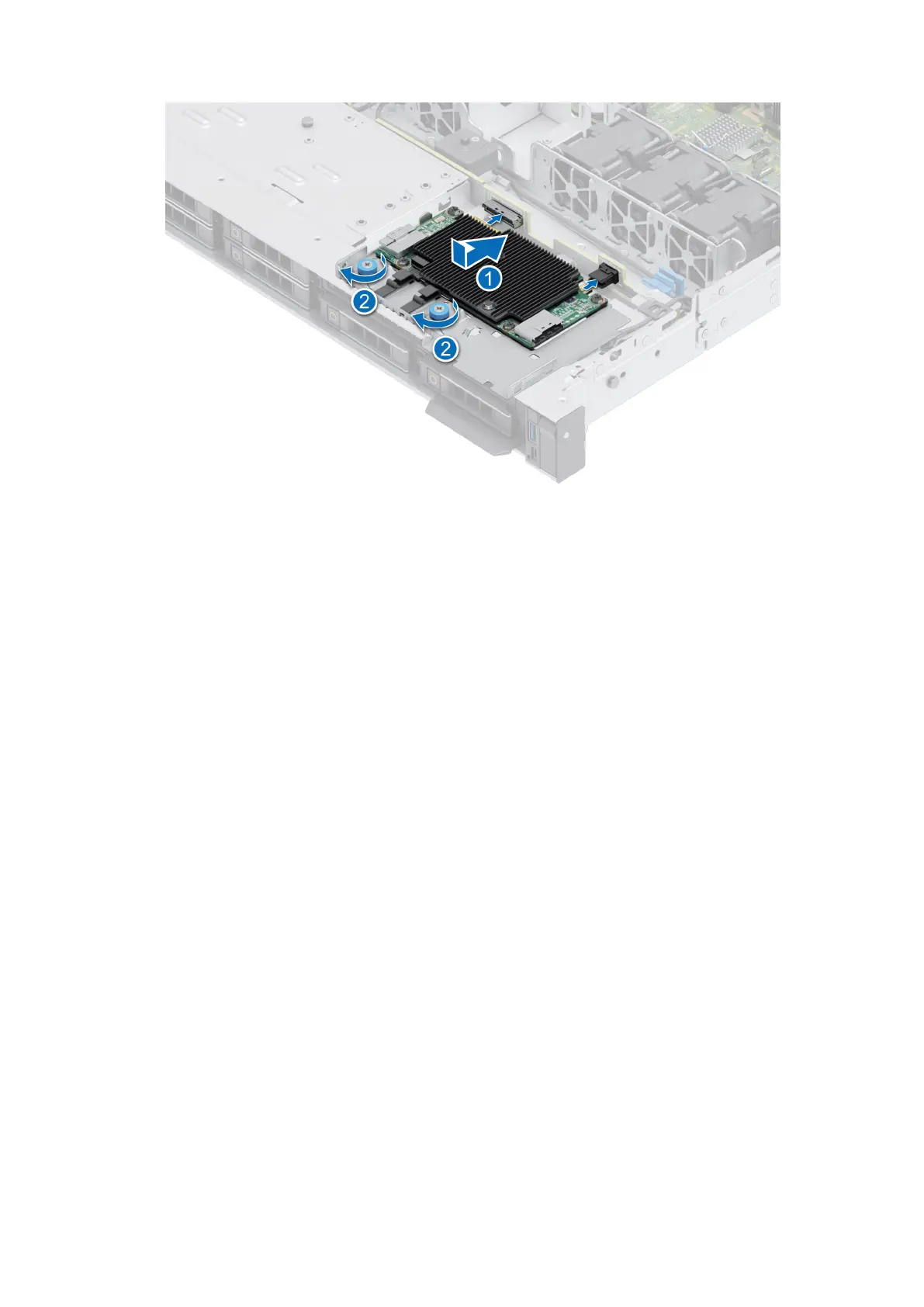

Figure 62. Installing the front mounting front PERC module
Next steps
1. Reconnect all the required cables.
2. If removed, install the air shroud.
3. Follow the procedure listed in After working inside your system.
Removing the PERC card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser.
Steps
1. Using Phillips #2 screw driver, remove the two screws.
2. Hold the metal holder and slide it toward the PSU, then take it out of the chassis.
3. Disconnect the cable.
68
Installing and removing system components
