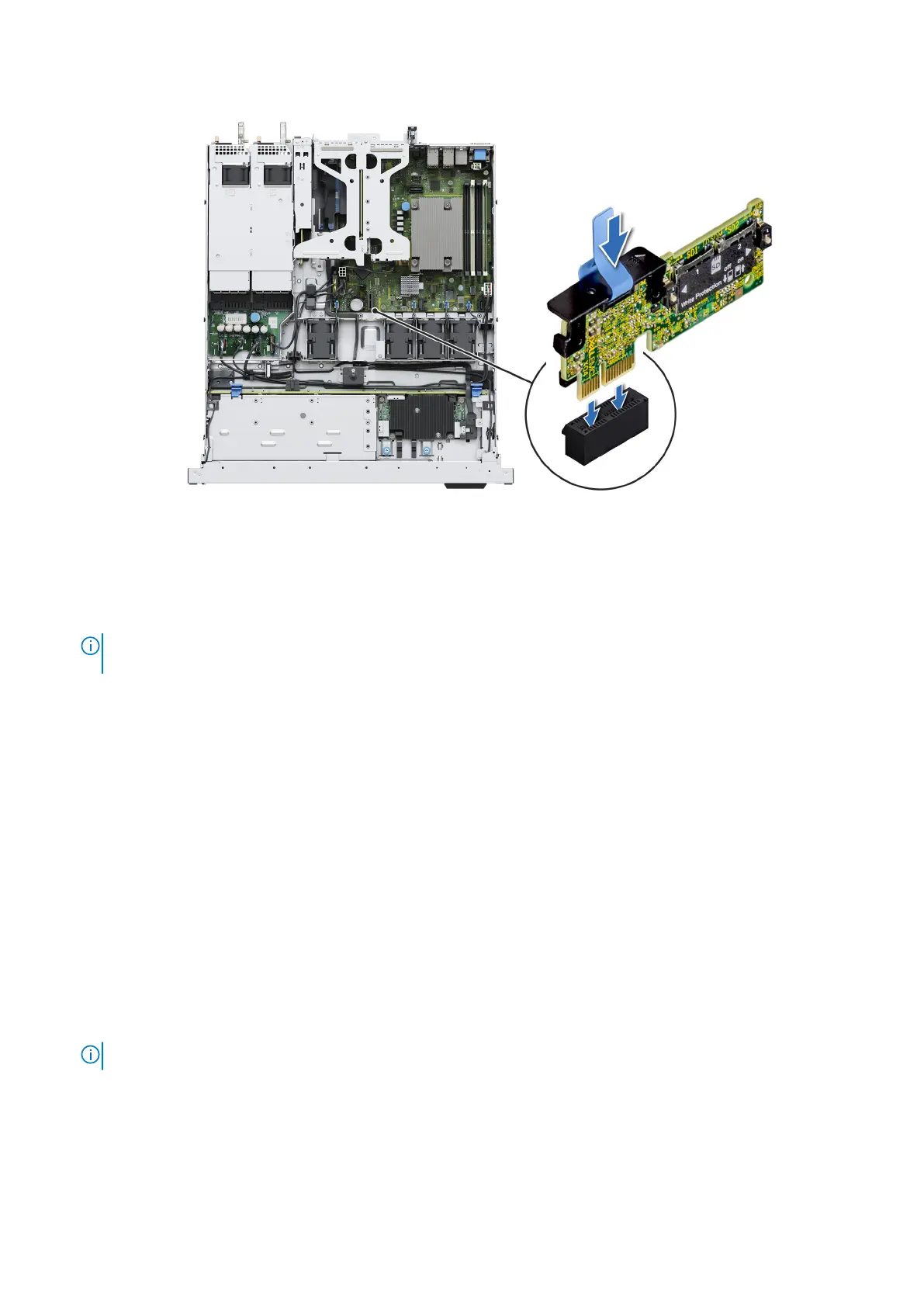

Figure 74. Installing the IDSDM module
Next steps
1. Install the MicroSD cards.
NOTE:
Install the MicroSD cards back into their original slots according to the labels you marked on the cards before
removing.
2. Follow the procedure listed in the After working inside your system.
MicroSD card
Removing the MicroSD card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
4. Remove the IDSDM module.
Steps
1. Locate the MicroSD card slot on the IDSDM module, and press the card to partially release it from the slot. For more
information on the slot location, see System board jumpers and connectors section.
2. Hold the MicroSD card and remove it from the slot.
NOTE: Temporarily label each MicroSD card with its corresponding slot number after removal.
Installing and removing system components 79
