2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
Steps
For butterfly riser, holding the touch points, lift the expansion card riser from the riser connector on the system board.

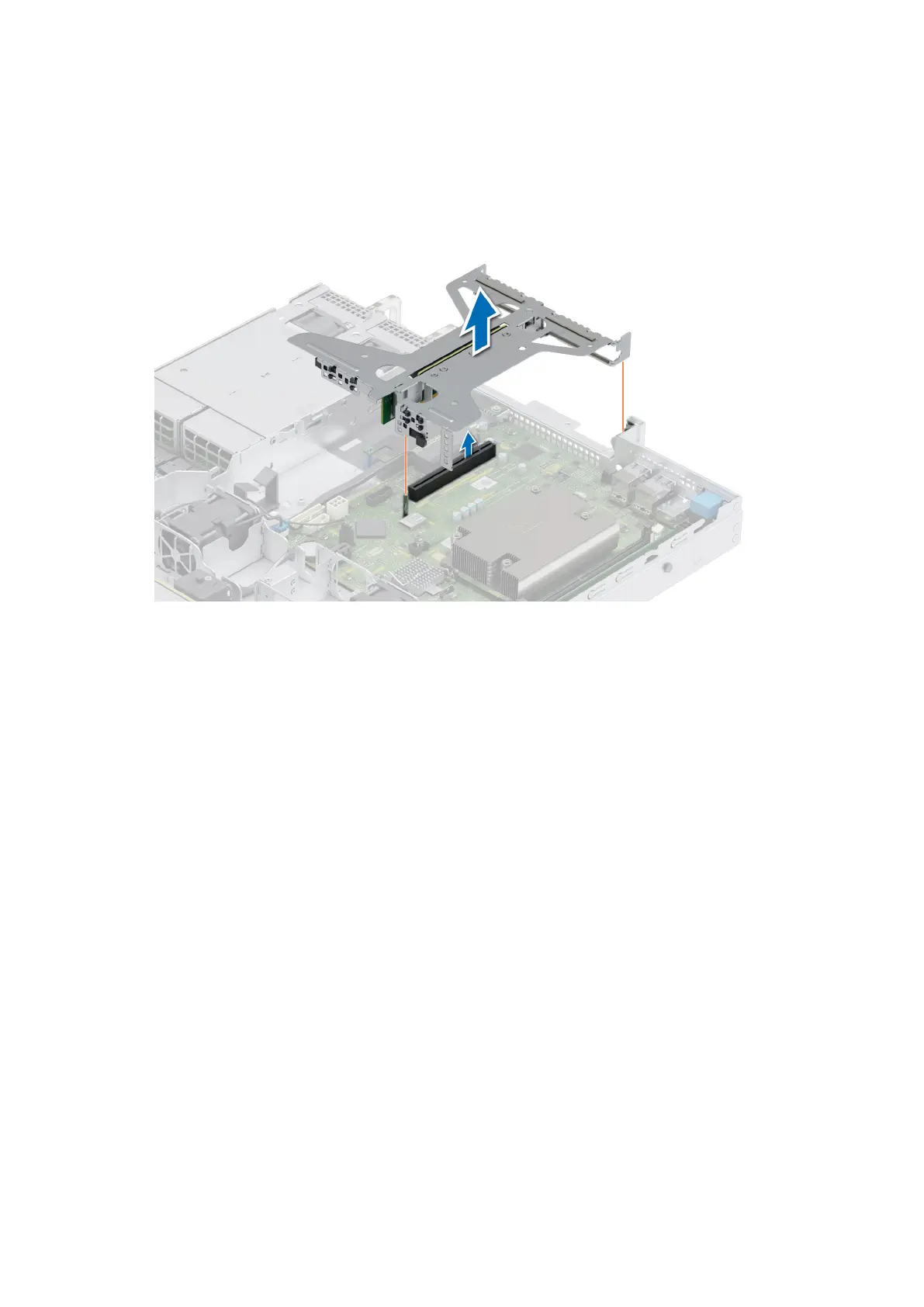

Figure 47. Removing the butterfly riser
Next steps
Replace the expansion card riser.
Installing the expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
4. If removed, install the expansion cards into the expansion card risers.
Steps
For butterfly riser, holding the touch points, align the expansion card riser with the connector and the riser guide pin on the
system board. Lower the expansion card riser into place until the expansion card riser connector is fully seated in the connector.
Installing and removing system components
57
