2. Loosen the thumb-screw (6x32) that secures the side cover to the chassis.
3. Slide and lift the side cover off the chassis.
Installing the side cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

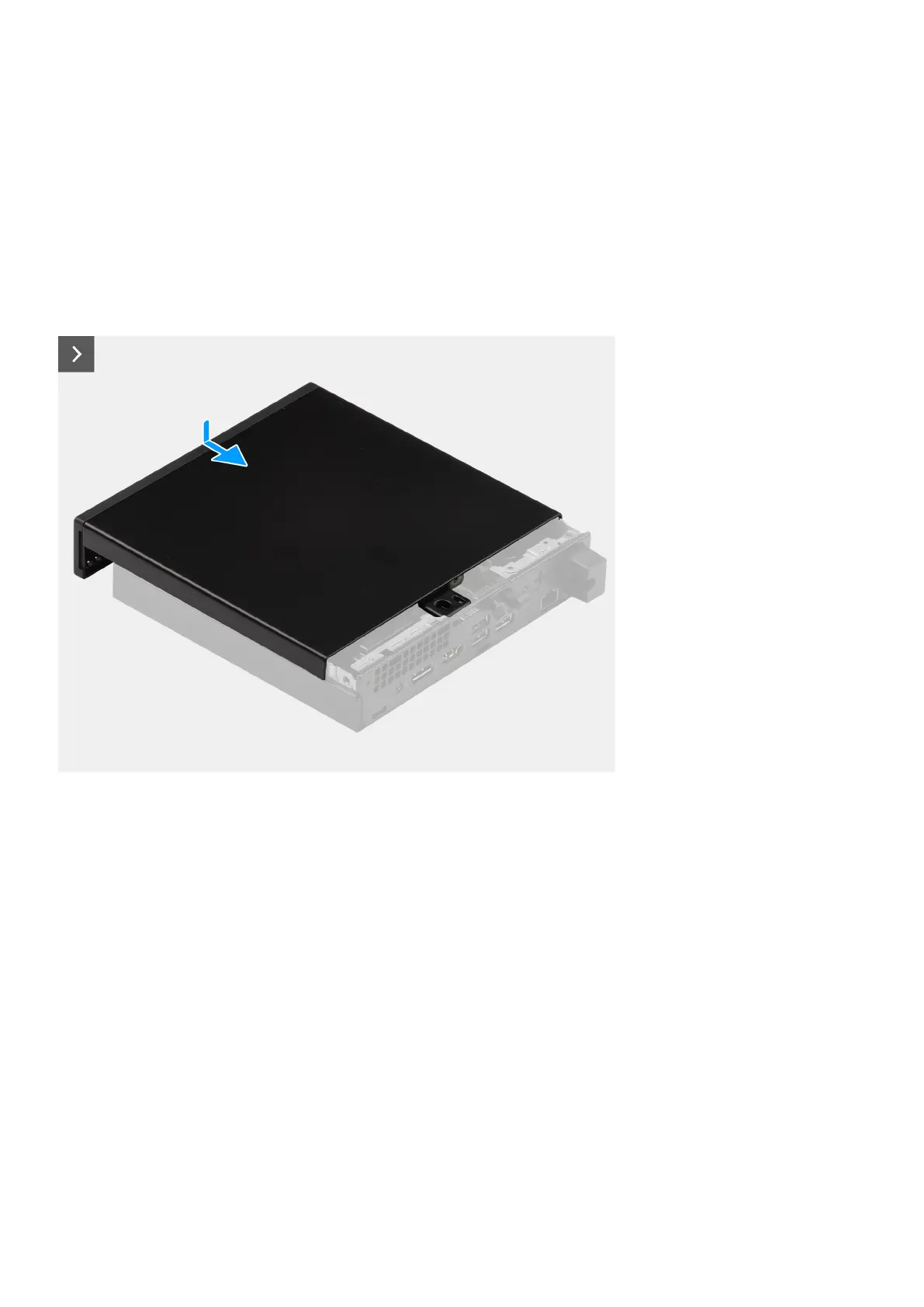

The following image(s) indicate the location of the side cover and provides a visual representation of the installation procedure.
32 Removing and installing Customer Replaceable Units (CRUs)
