2. Remove the side cover.
About this task

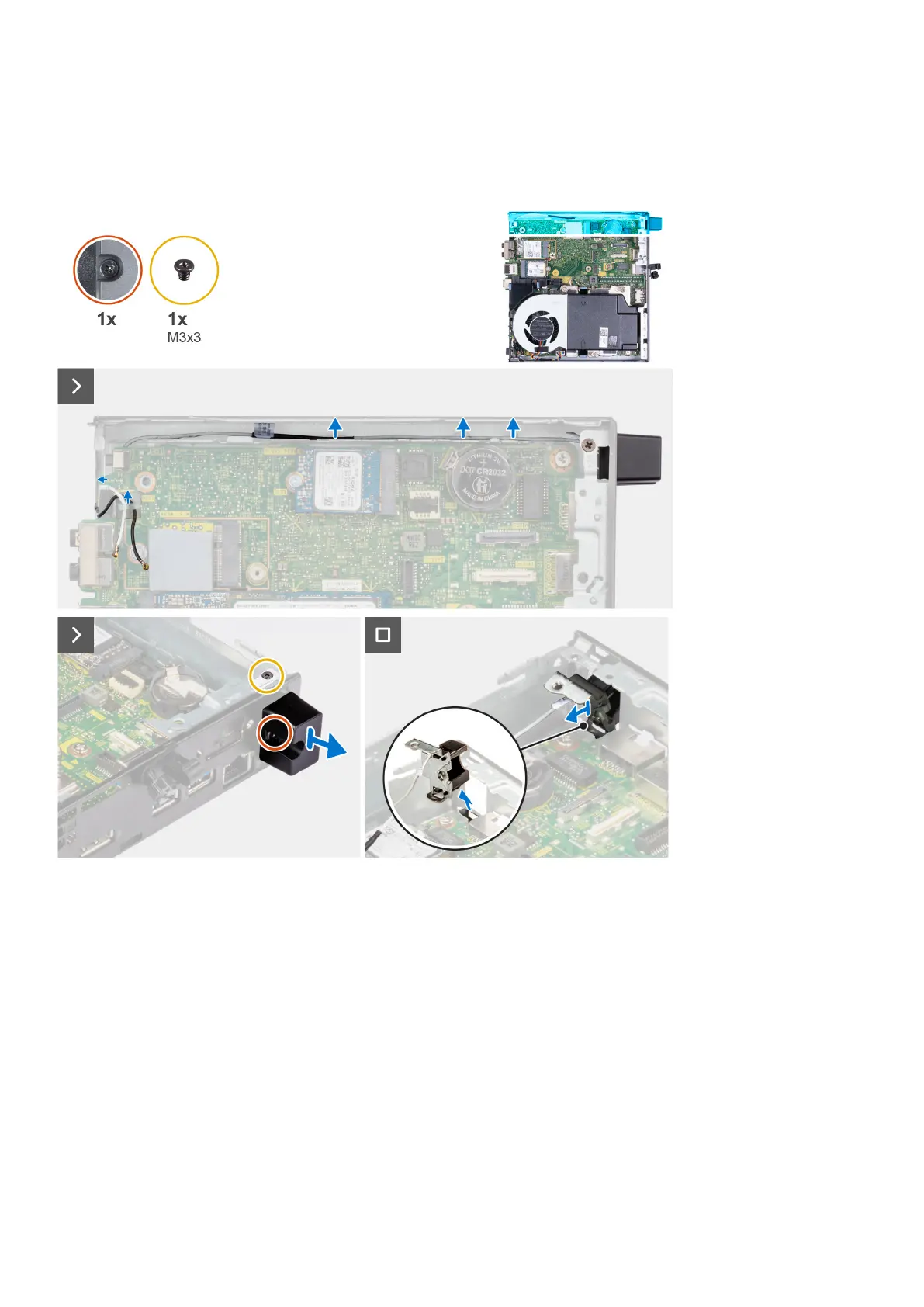

The following image(s) indicate the location of the antenna module (white cable) and provides a visual representation of the
removal procedure.
Steps
1. Remove the antenna cable from the routing guides on the chassis and system board.
2. Remove the screw (M3x3) that secures the antenna module (white cable) to the chassis.
3. Listen the captive screw that secures the antenna module (white cable) to the chassis.
4. Push the antenna module (white cable) through the slot on the chassis.
5. Lift the antenna module (white cable) off the chassis.
Installing the antenna module (white cable)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
Removing and installing Field Replaceable Units (FRUs)
