About this task

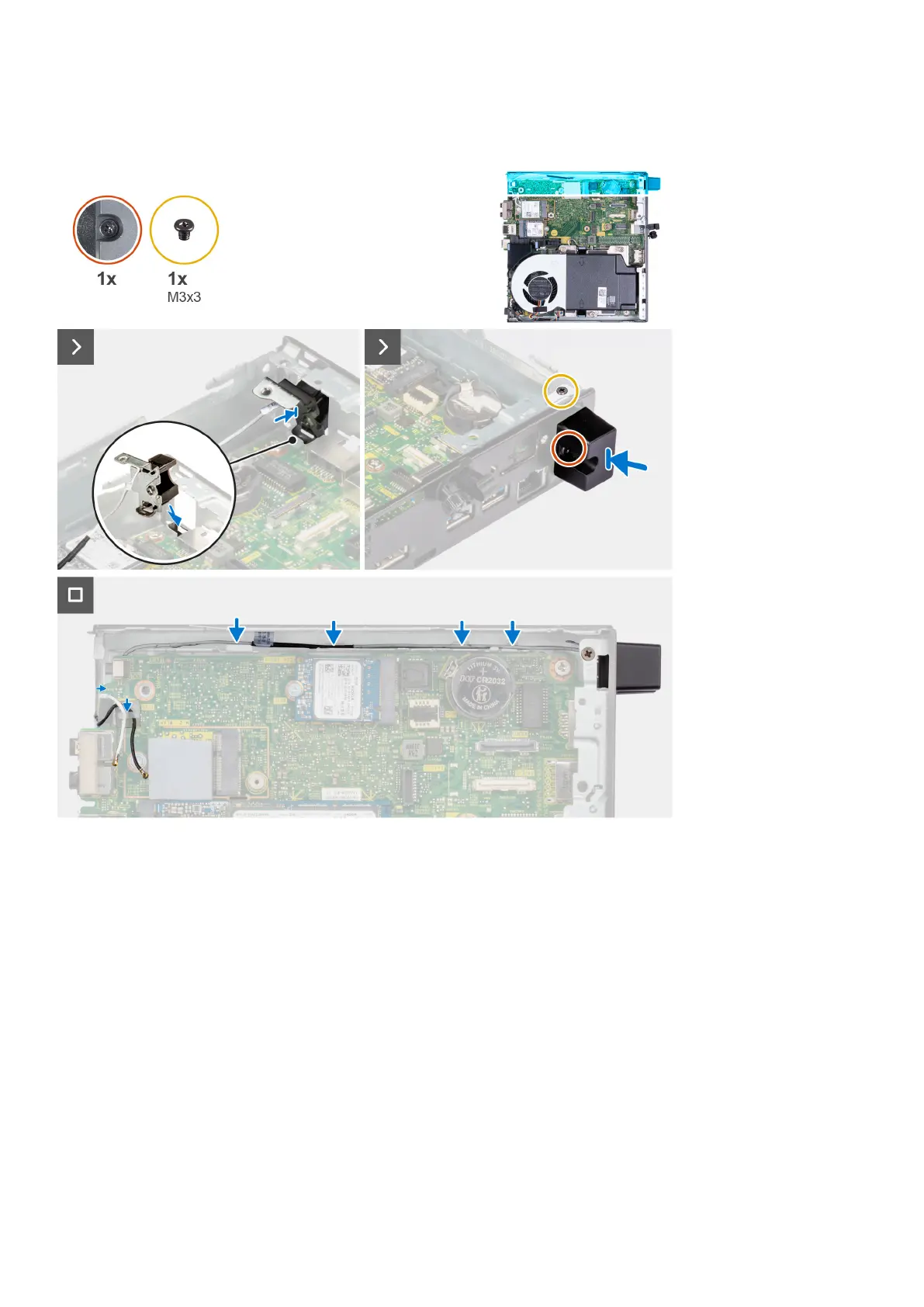

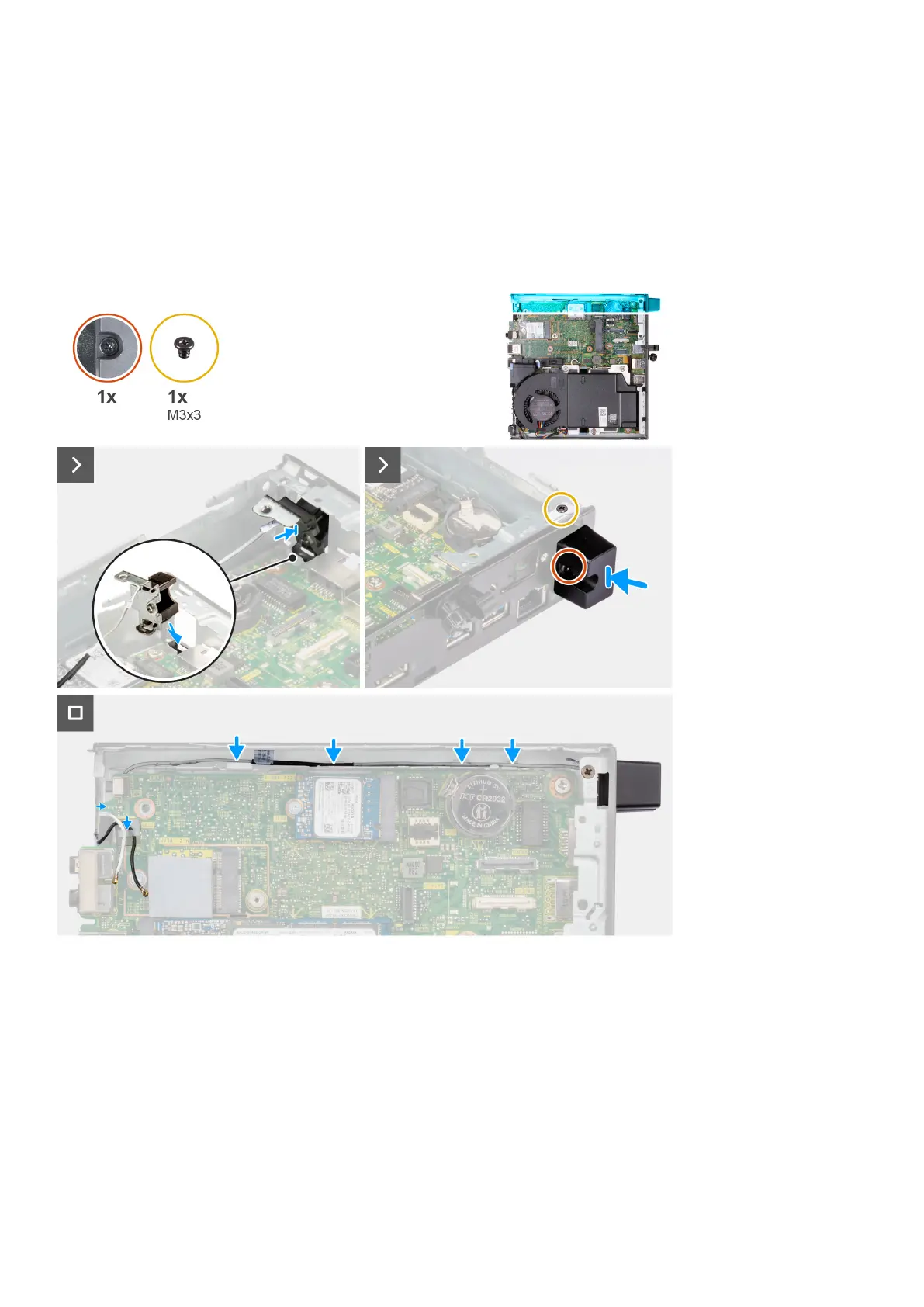

The following image(s) indicate the location of the antenna module (white cable) and provides a visual representation of the
installation procedure.
Steps
1. Push the antenna module (white cable) though the slot the chassis.
2. Align the screw hole and captive screw on the antenna module (white cable) to the screw holes on the chassis.
3. Tighten the captive screw that secures the antenna module (white cable) to the chassis.
4. Replace the screw (M3x3) that secures the antenna module (white cable) to the chassis.
5. Route the antenna cable through the routing guides on the chassis and system board.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Removing SMA antenna assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
74
Removing and installing Field Replaceable Units (FRUs)
