Installing the antenna module (black cable)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

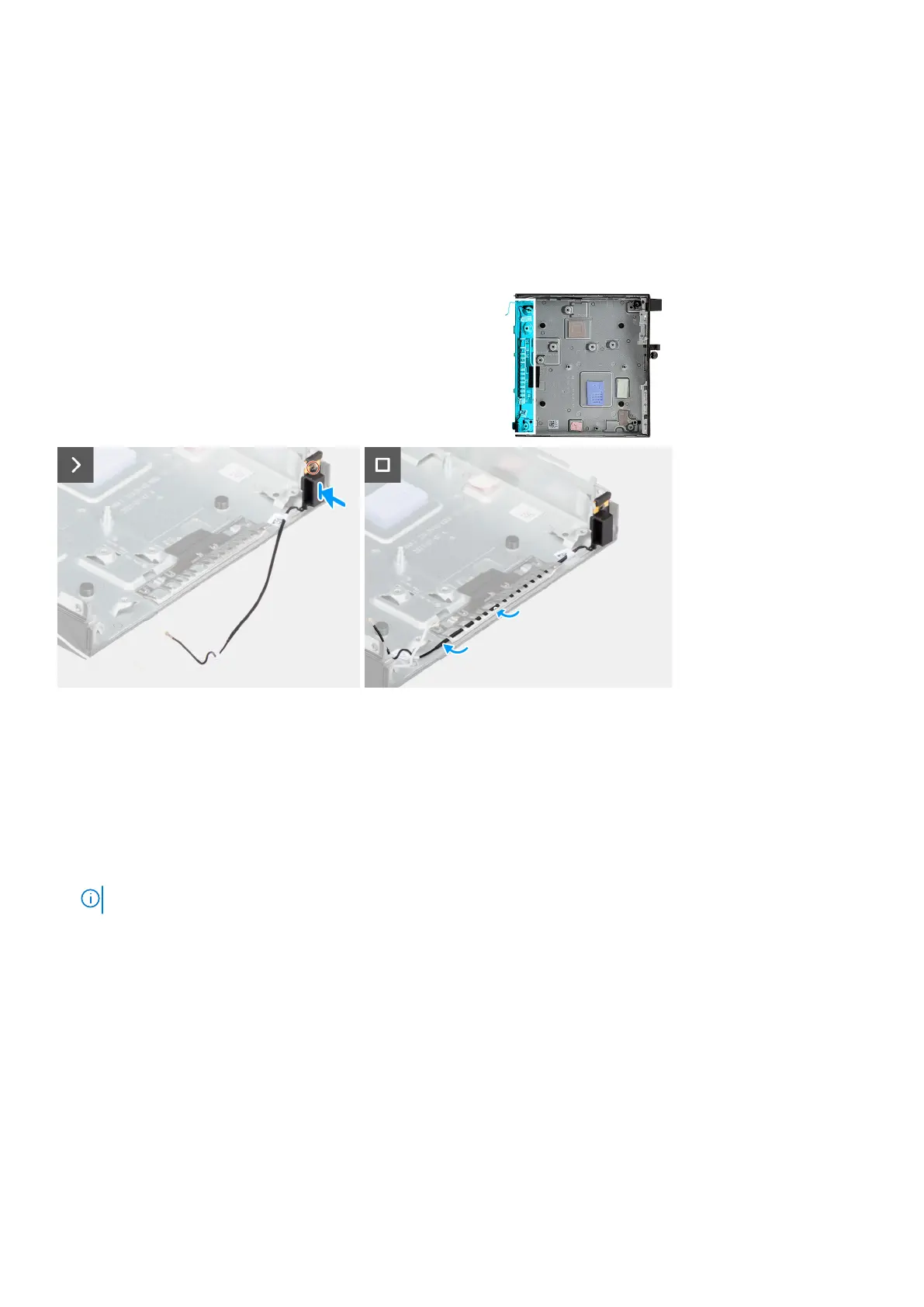

The following image(s) indicate the location of the antenna module (black cable) and provides a visual representation of the
installation procedure.
Steps
1. Place the antenna module (black cable) on the chassis.
2. Align the captive screw on the antenna module (black cable) to the screw hole on the chassis.
3. Tighten the captive screw that secures the antenna module (black cable) to the chassis.
4. Route the antenna cable through the routing guides on the chassis.
Next steps
1. Install the system board
NOTE: The system board can be installed with the memory, coin-cell battery, and processor preattached.
2. Install the optional I/O module (VGA/HDMI/DP/Serial) or the optional Type-C module, whichever applicable.
3. Install the heat sink.
4. Install the fan.
5. Install the speaker.
6. Install the wireless card.
7. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, whichever applicable.
8. Install the side cover.
9. Follow the procedure in After working inside your computer.
Removing the antenna module (white cable)
Prerequisites
1. Follow the procedure in Before working inside your computer.
72
Removing and installing Field Replaceable Units (FRUs)
