Steps

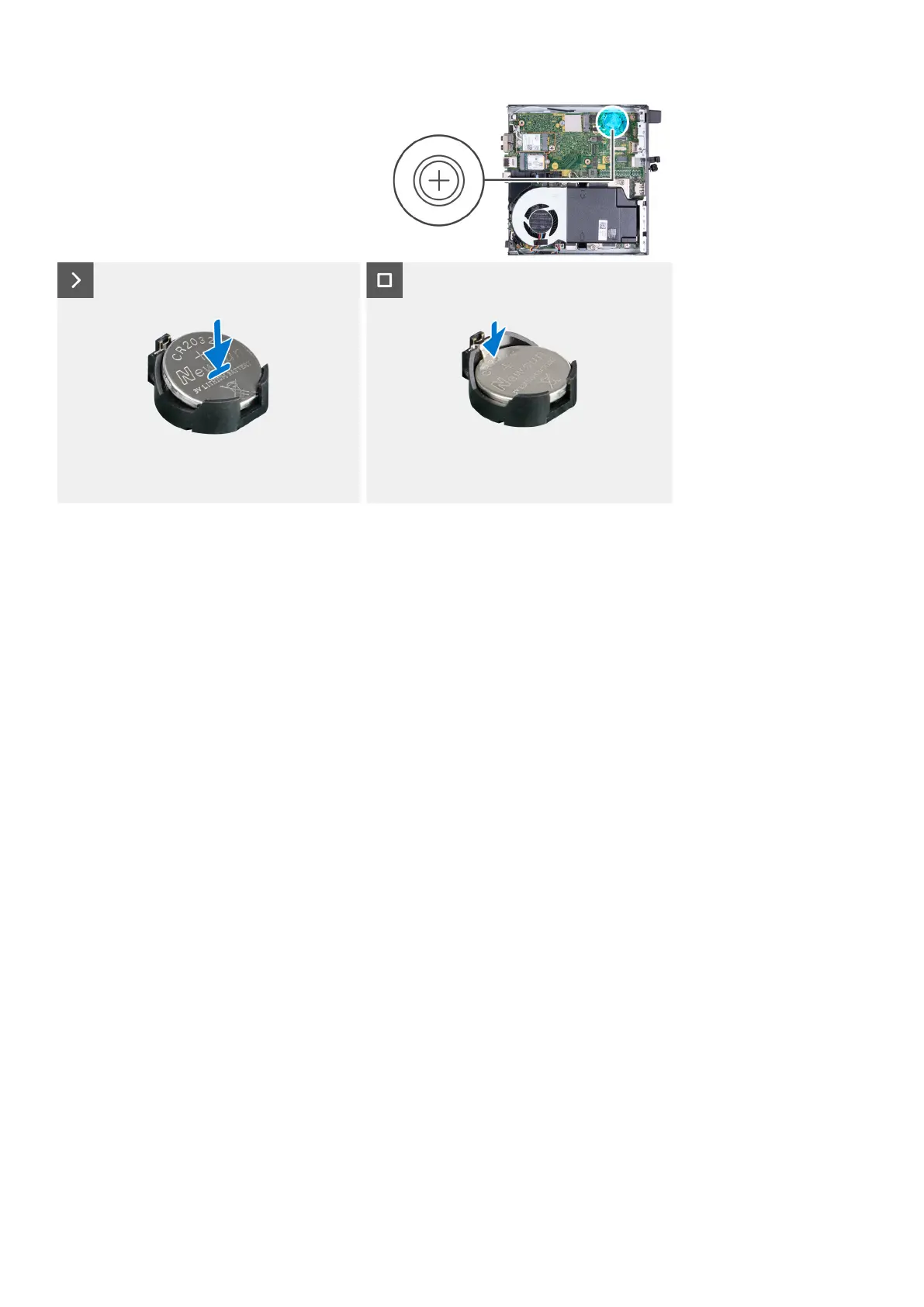

With the positive side (+) facing up, insert the coin-cell battery into the battery socket on the system board and snap the
battery into place.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Memory
Removing the memory
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the speaker.
4. Remove the fan.
About this task
The following image(s) indicate the location of the memory and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
53
