Steps

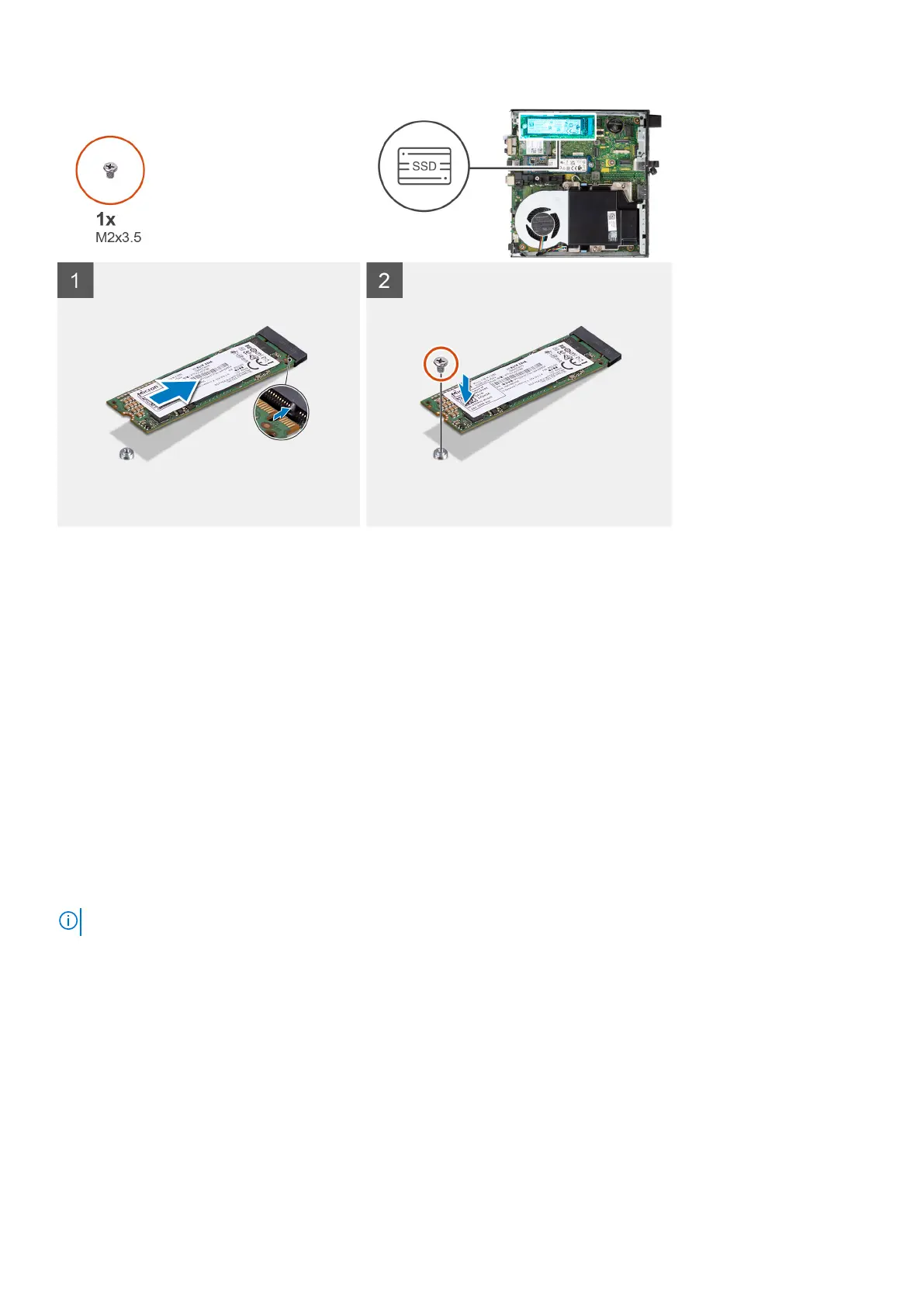

1. Align the notch on the M.2 2280 solid-state drive with the tab on the solid-state drive slot 1 (M.2 PCIe SSD 1).
2. Slide the M.2 2280 solid-state drive into solid-state drive slot 1 (M.2 PCIe SSD 1) on the system board.
3. Replace the screw (M2x3.5) that secures the M.2 2280 solid-state drive to the system board
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Location of the screw mount on the M.2 slot
Prerequisites
To install an M.2 solid-state drive of a different form factor on the M.2 slot, the location of the screw mount on the M.2 slot has
to be changed in order to install the M.2 solid-state drive of a different form factor.
About this task
NOTE: This procedure only applies to the screw mount located on the M.2 slot for the solid-state drive.
The following image(s) indicate the location of the screw mount on the M.2 slot and provides a visual representation of the
procedure to change the position of the screw mount.
Removing and installing Customer Replaceable Units (CRUs)
43
