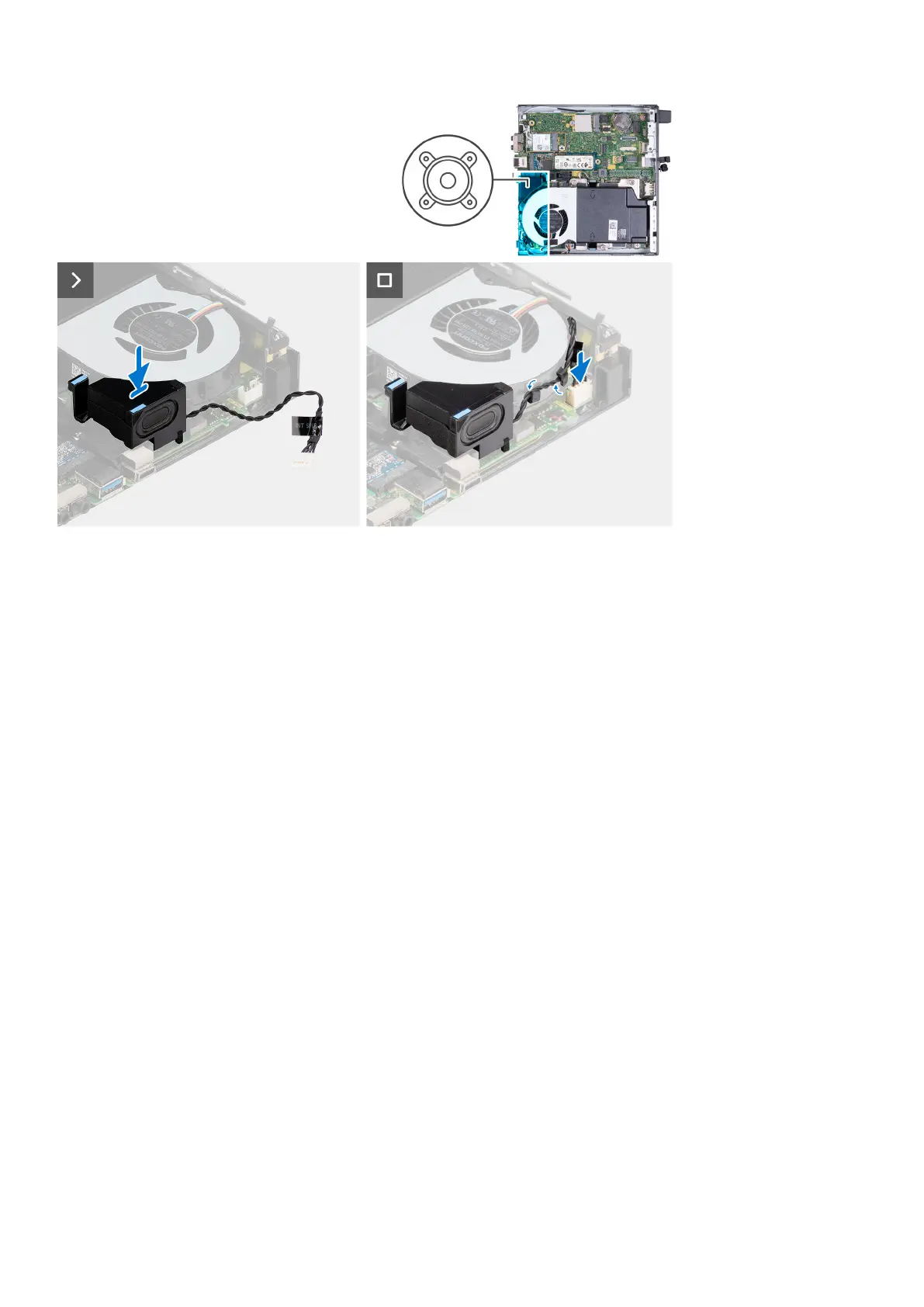

Steps
1. Connect the speaker cable to the system board.
2. Press and hold on the tab that secures the speaker to the system board.
3. Place the speaker on the system board.
4. Release the tab that secures the speaker to the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the speaker.
About this task

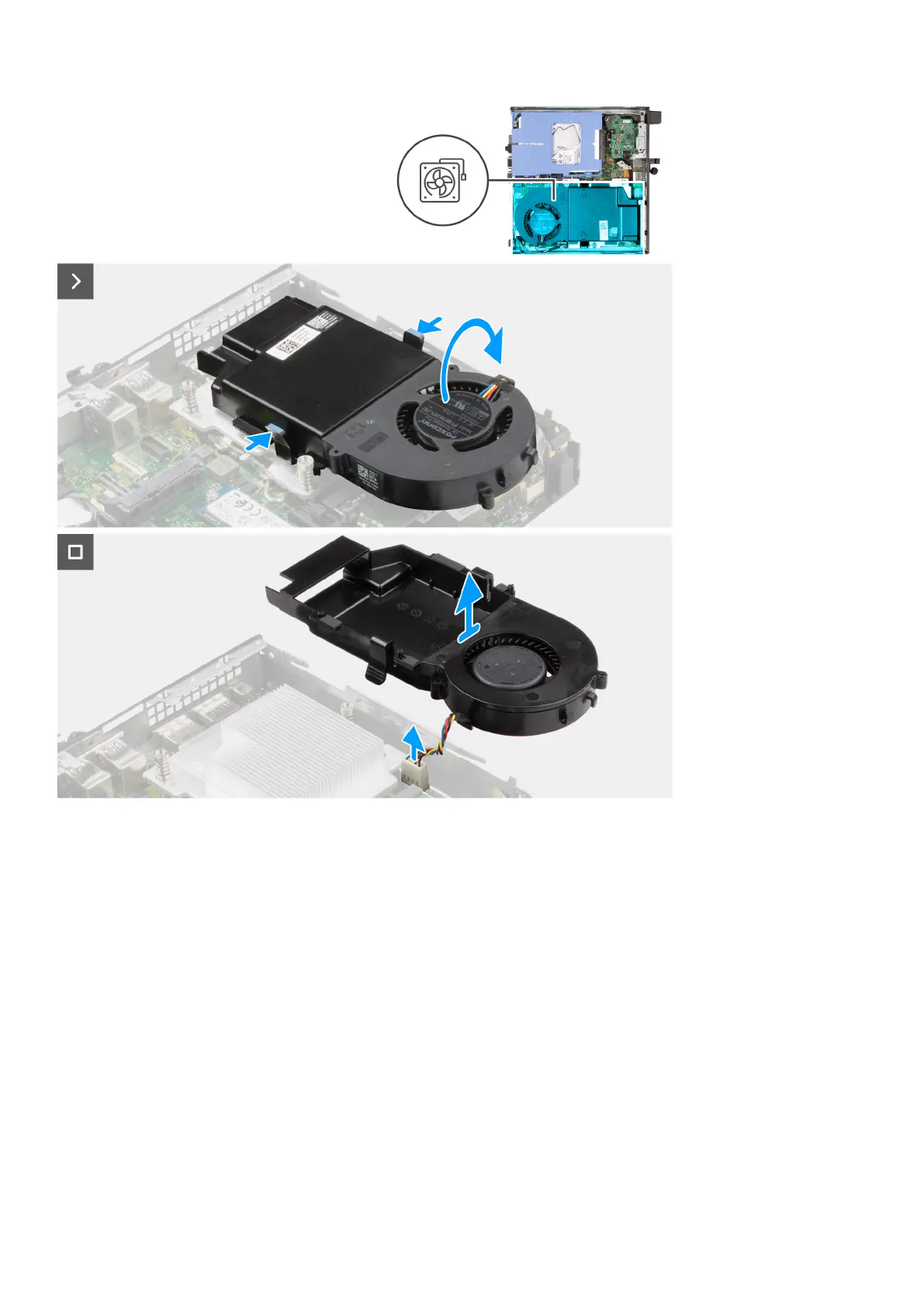

The following image(s) indicate the location of the fan and provides a visual representation of the removal procedure.
48
Removing and installing Customer Replaceable Units (CRUs)
