Dell C1765NFW User Manual

82 Installing Printer Drivers on Computers Running Windows
®
5 Wait until the driver is copied from the server to the client computer. A new printer object will be added to the
Printers folder. The time taken for these activities varies based on network traffic.
6 Print a test page to verify installation.
a Right-click the bottom left corner of the screen, and then click Control Panel → Hardware and Sound
(
Hardware for Windows Server 2012 and Windows Server 2012 R2) → Devices and Printers .
b Right-click the printer you just created and select Printer properties .
c On the General tab, click Print Test Page .
When a test page is printed successfully, installation is complete.
Peer-to-Peer
If you use the peer-to-peer method, the printer driver is installed on each client computer. The client computers can
modify the drivers and handle the print jobs.
For Windows XP, Windows XP 64-bit Edition, Windows Server 2003, Windows Server 2003 x64 Edition
1 Click start ( Start for Windows Server 2003 / Windows Server 2003 x64 Edition) → Settings (for Windows XP /
Windows XP 64-bit Edition)
Printers and Faxes .
2 Click Add a Printer to launch the Add Printer wizard.
3 Click Next .

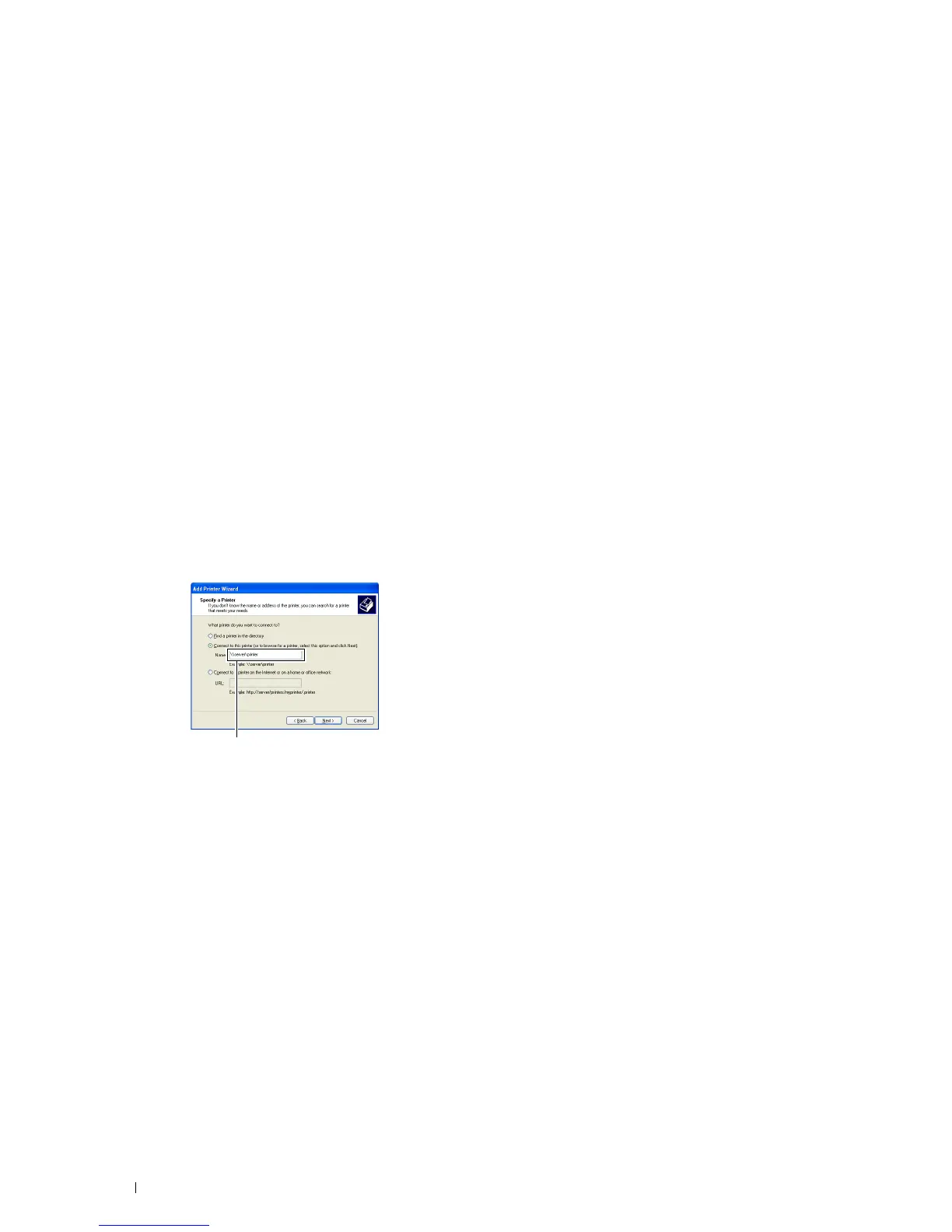

4 Select A network printer, or a printer attached to another computer , and then click Next . If the printer is not
listed, type in the path of the printer in the text box.
The server host name is the name of the server computer that identifies it to the network. The shared printer name
is the name assigned during the server installation process.
5 Click Browse for a printer , and then click Next .
If this is a new printer, you may be prompted to install a printer driver. If no system driver is available, specify the
location where the driver is available.
6 Select Yes if you want this printer to be set as the default printer, and then click Next .
If you want to verify installation, click
Yes to print a test page.
7 Click Finish .
When a test page prints successfully, installation is complete.
For Windows Vista, Windows Vista 64-bit Edition
1 Click Start → Control Panel → Hardware and Sound → Printers .
2 Click Add a Printer to launch the Add Printer wizard .
For example:\\<server host name>\<shared printer name>

Dell C1765NFW Specifications

General

Duplex printing	No
Print technology	LED
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	16 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	15 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Fax polling	Yes
Flash memory	16 MB
Scan file formats	JPG, PDF, TIFF
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Connectivity technology	Wired & Wireless
Color all-in-one functions	copy, print
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	30000 pages per month
Number of print cartridges	4
Page description languages	GDI
Copier resize	25 - 400 %
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2
Time to first copy (black, normal)	24 s
Time to first copy (color, normal)	40 s
Copy speed (black, normal quality, A4)	15 cpm
Copy speed (color, normal quality, A4)	12 cpm
Scan to	E-mail, FTP, USB
Scanner type	Flatbed & ADF scanner
Input color depth	24 bit
Maximum scan area	A4 / Letter (216 x 297) mm
Image formats supported	JPG, TIF
Maximum scan resolution	4800 x 4800 DPI
Document formats supported	PDF
Optical scanning resolution	1200 x 1200 DPI
Faxing	Mono faxing
Fax memory	2 MB
Modem speed	33.6 Kbit/s
Paper input type	Paper tray
Total input capacity	150 sheets
Total output capacity	100 sheets
Total number of input trays	1
Auto document feeder (ADF) input capacity	15 sheets
Envelopes sizes	7 3/4, C5, DL
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Coated paper, Envelopes, Labels, Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Hagaki card, Legal (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black
Market positioning	Business
Display number of lines	4 lines
Display number of characters	20
Standard interfaces	USB 2.0
Wi-Fi standards	802.11b, 802.11g
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-TKIP, WPS
Supported network protocols (IPv4)	TCP/IP, HTTP, Port 9100, LPD/LPR, BOOTP, DHCP, RARP, Auto IP, DNS, mDNS
Internal memory	128 MB
Processor frequency	295 MHz
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	2 W
Power consumption (standby)	40 W
Power consumption (PowerSave)	10 W
Power consumption (average operating)	280 W
Package depth	530 mm
Package width	561 mm
Package height	505 mm
Package weight	18300 g
Storage temperature (T-T)	5 - 32 °C
Operating temperature (T-T)	0 - 3100 °C
Operating relative humidity (H-H)	15 - 85 %
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	379 mm
Width	410 mm
Height	338 mm
Weight	15500 g
