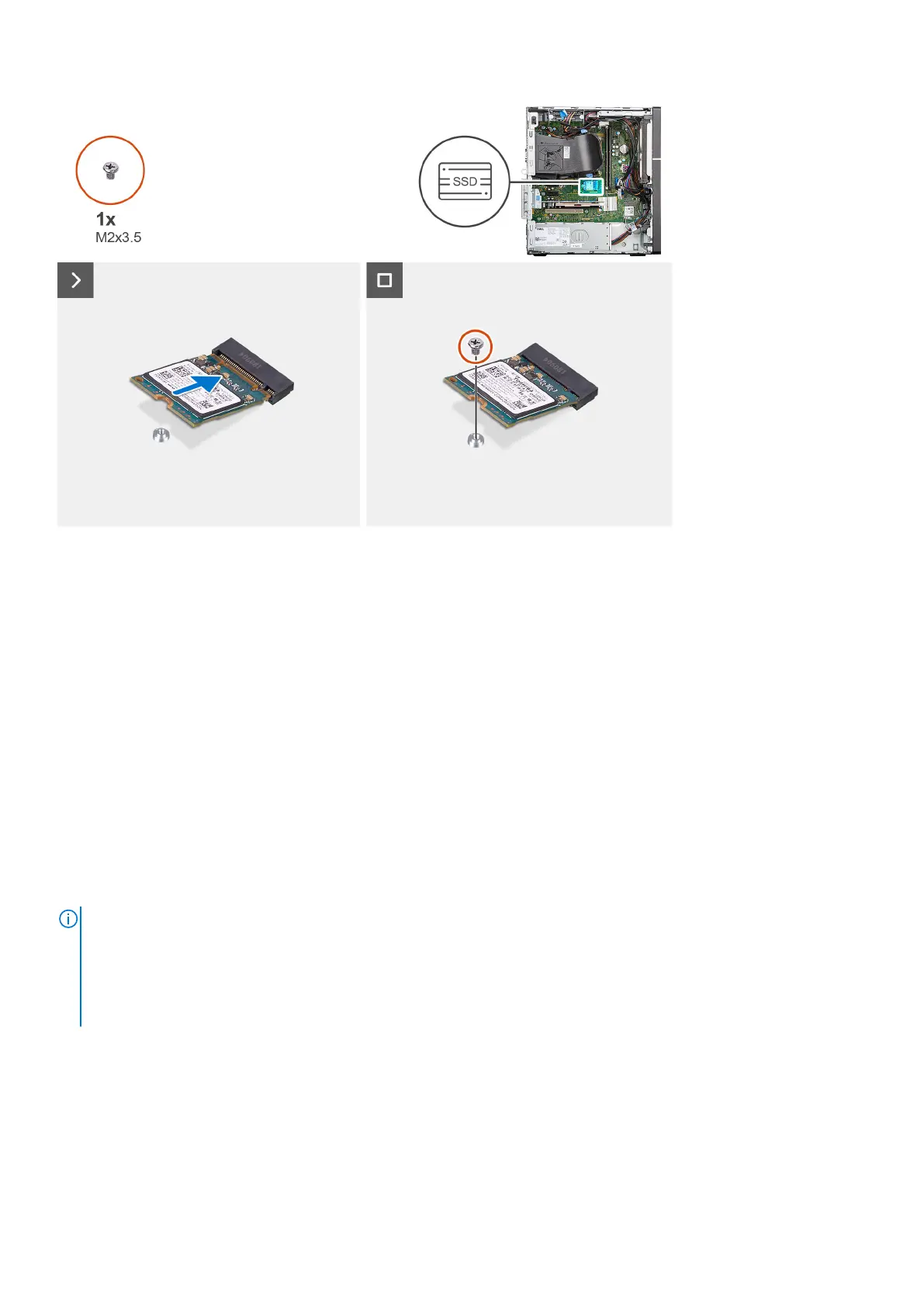

Steps
1. Align the notch on the solid-state drive with the tab on the M.2 card slot and slide the solid-state drive into the M.2 card slot
on the system board.
2. Replace the screw (M2x3.5) that secures the solid-state drive to the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
NOTE:
The M.2 card installed on your computer will depend on the configuration ordered. Supported card configurations on the
M.2 card slot:
● M.2 2230 solid-state drive
● M.2 2280 solid-state drive
The following images indicate the location of the M.2 2280 solid-state drive and provide a visual representation of the removal
procedure.
46
Removing and installing Customer Replaceable Units (CRUs)
