● Phillips screwdriver #0
● Phillips screwdriver #1
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

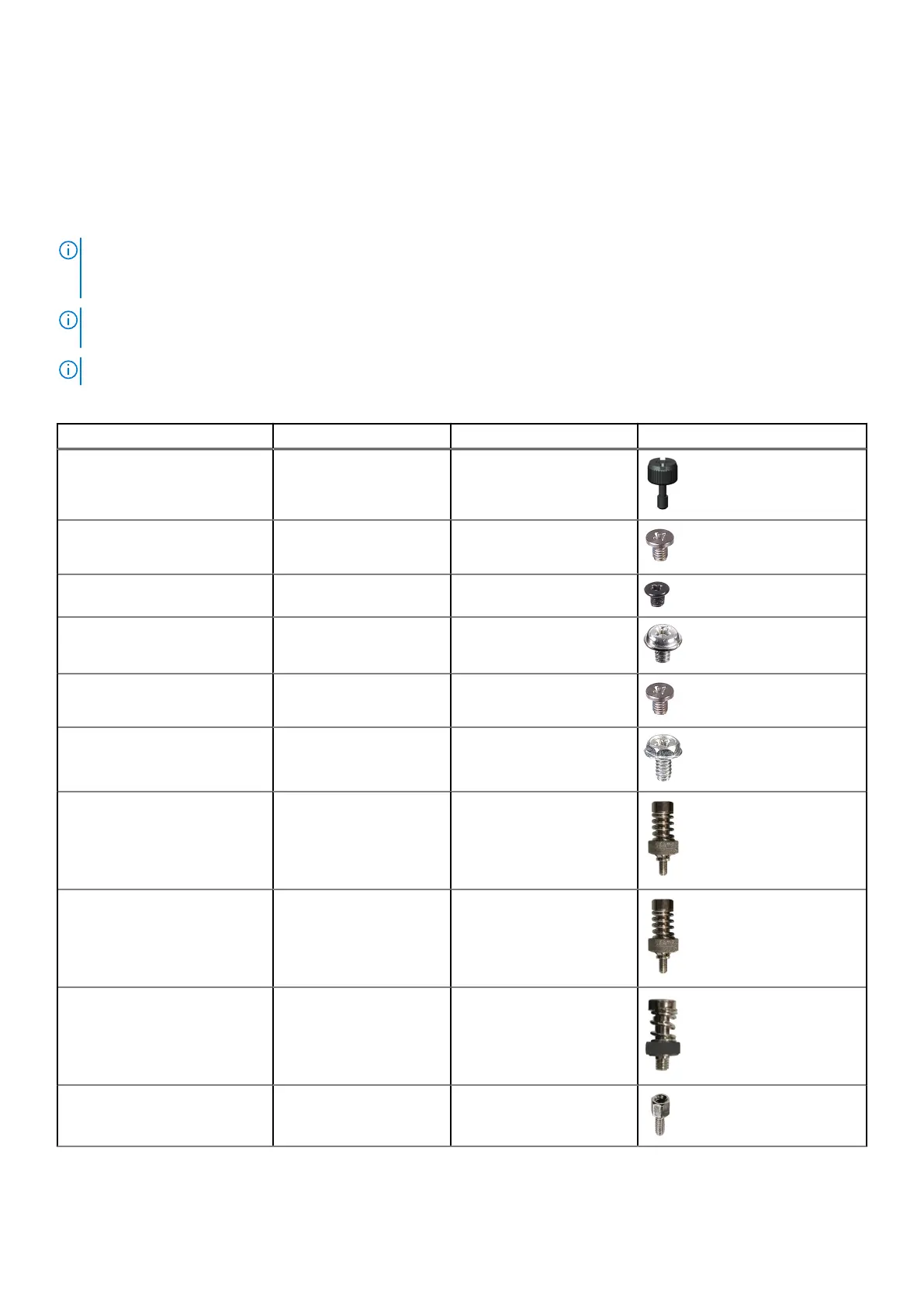

Table 23. Screw list
Component Screw type Quantity Screw image
Left-Side cover Captive screw 2
M.2 2230/2280 Solid-state
drive
M2x3.5 1
2.5-inch Hard-disk drive M3x3.5 4
3.5-inch Hard-disk drive 6-32 4
WLAN card M2x3.5 1
Power-supply unit #6-32 3
125 W heat-sink assembly Captive screw 4
Processor fan (for 125 W heat-
sink assembly
Captive screw 4
VR heat sink Captive screw 2
Serial/VGA module 4-40x6.5
2
32 Working inside your computer
