Steps

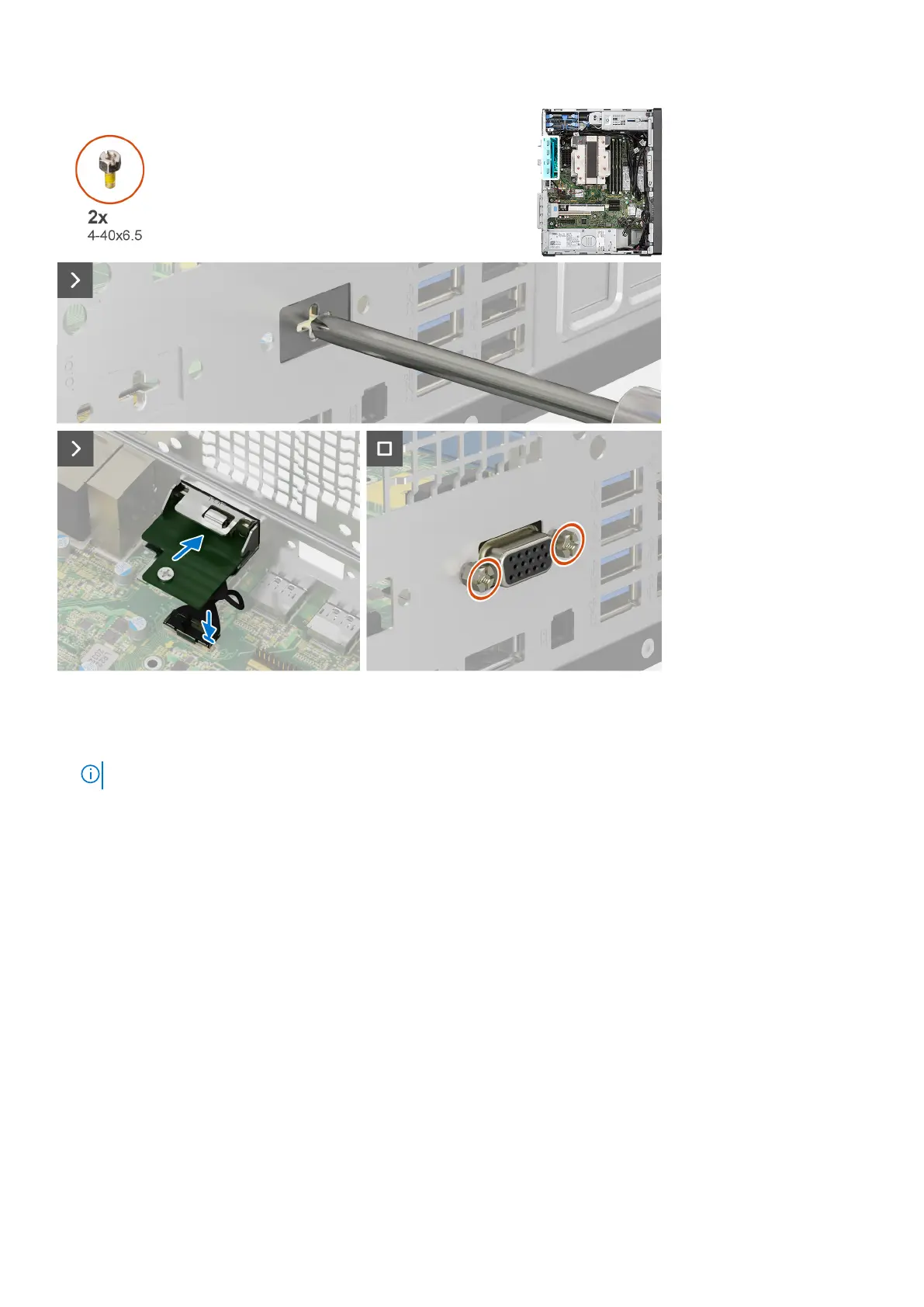

1. To remove the dummy metal bracket, insert a star-head screwdriver in the hole of the bracket, push the bracket to release
the bracket, and then lift the bracket out from the system.
NOTE: Applies if you are upgrading the system that did not have these optional modules.
2. Insert the optional VGA module into its slot from the inside of your computer.
3. Connect the VGA module cable to the connector on the system board .
4. Replace the two (4-40x6.5) screws to secure the optional VGA module to the system.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
DP module
Removing optional DisplayPort module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
