Steps

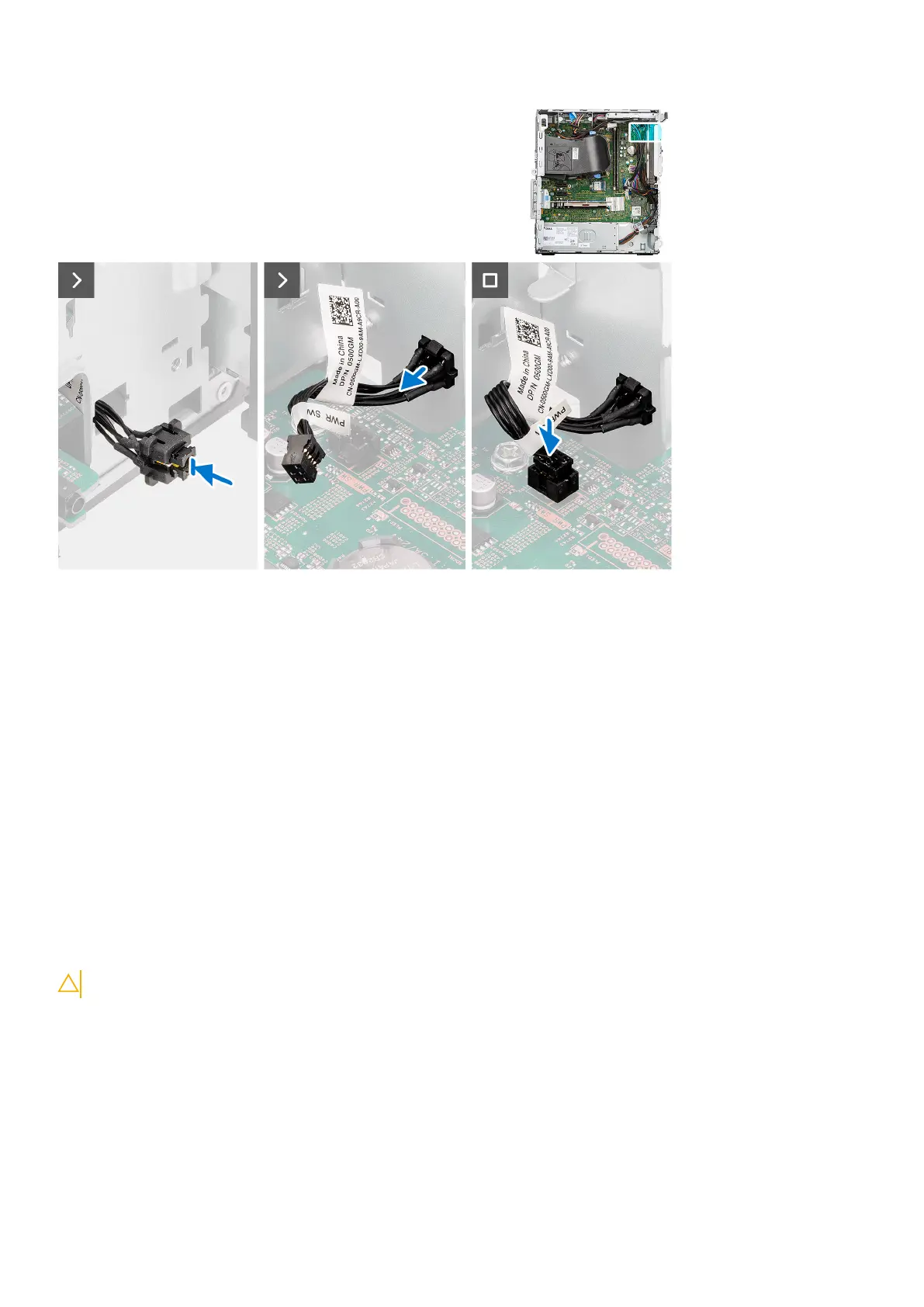

1. Insert the power-button cable into the slot from the front-side of the computer, and press the power-button head until it
clicks into the place in the chassis.
2. Align and connect the power-button cable to the connector on the system board.
Next steps
1. Install the front bezel.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Wireless antenna kit
Internal antenna kit
Removing the internal antenna kit
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the internal antenna and provides a visual representation of the removal procedure.
78
Removing and installing Field Replaceable Units (FRUs)
