Steps
1. Align the tabs on the side cover with the slots on the chassis.
2. Slide the side cover towards the front of the computer to install it.

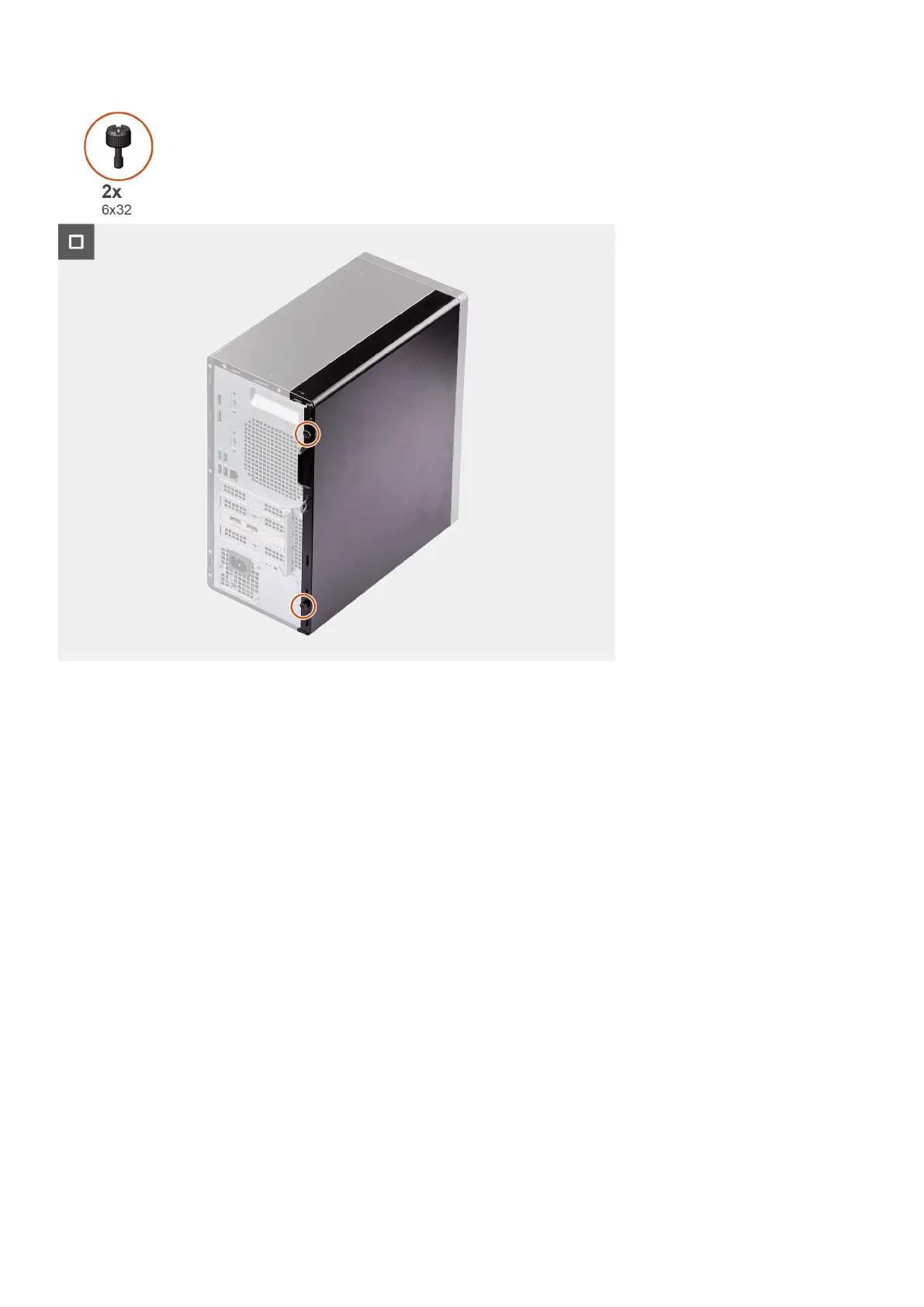

3. Tighten the two thumbscrews to secure the side cover to the chassis.
Next steps
1. Follow the procedure in after working inside your computer.
Front bezel
Removing the front bezel
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the front bezel and provide a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
39
