Memory
Removing the memory
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

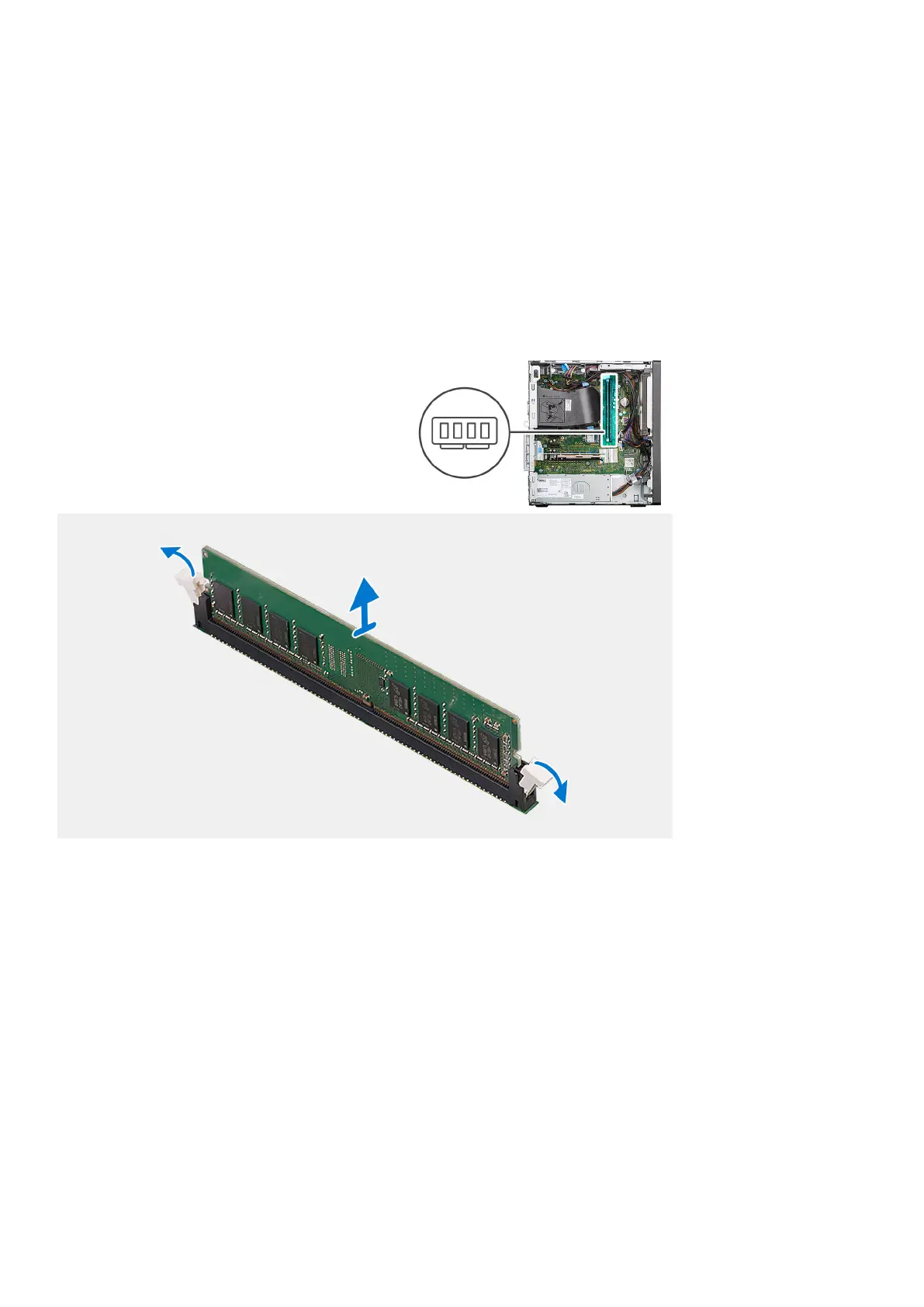

The following images indicate the location of the memory module and provide a visual representation of the removal procedure.
Steps
1. Pull the securing clips from both side of the memory module until the memory module pops up.
2. Slide and remove the memory module from the memory-module slot.
Installing the memory
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the memory module and provides a visual representation of the installation
procedure.
50
Removing and installing Customer Replaceable Units (CRUs)
