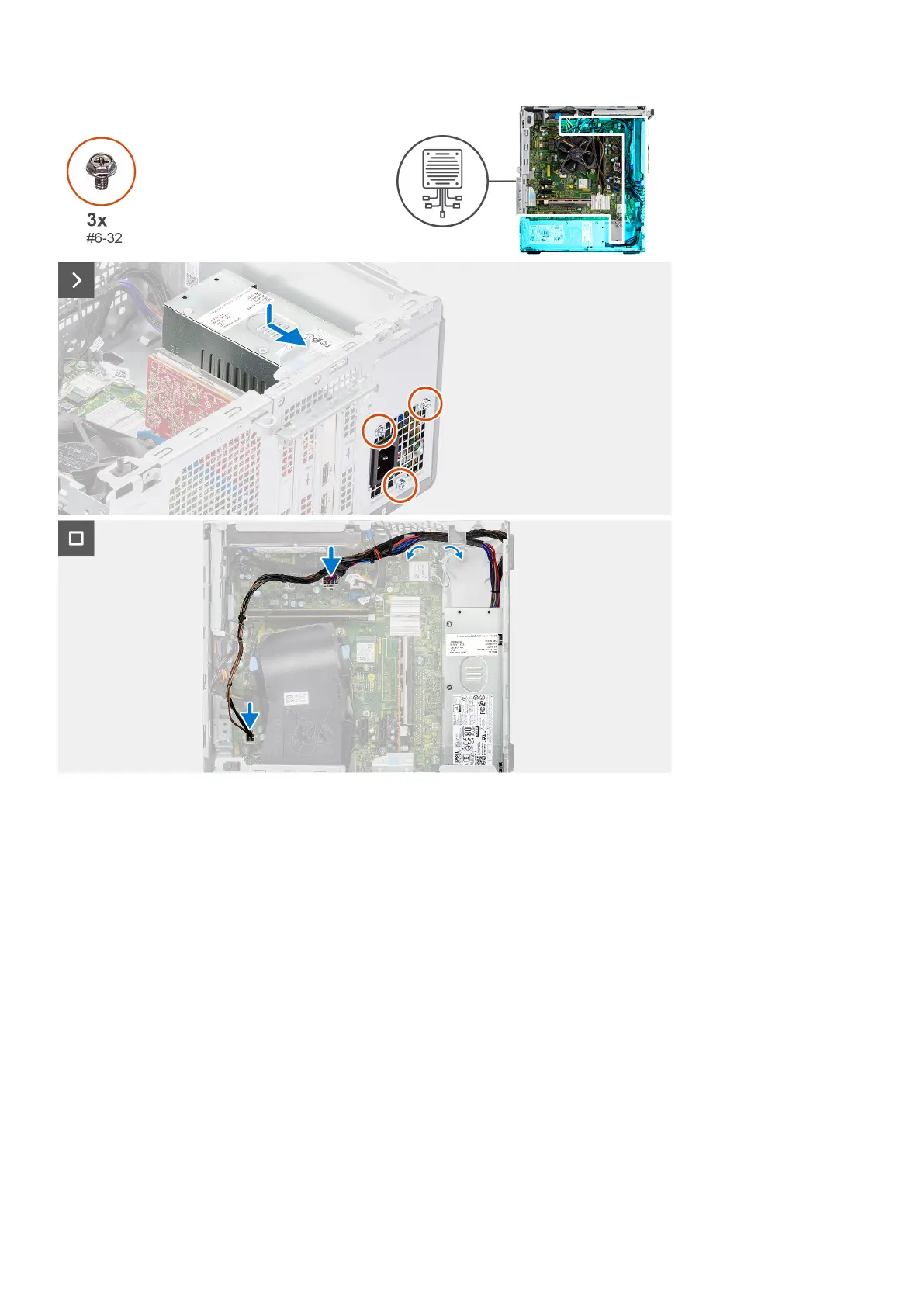

Steps
1. Place the power-supply unit on the chassis and slide it towards the back of the chassis.
2. Replace the three (#6-32) screws to secure the power-supply unit to the chassis.
3. Route the power-supply cables through their routing guides on the chassis.
4. Connect the power-supply cables to their connectors on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Processor fan and heat-sink assembly
Removing the processor fan and heat-sink assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
70
Removing and installing Field Replaceable Units (FRUs)
