Steps

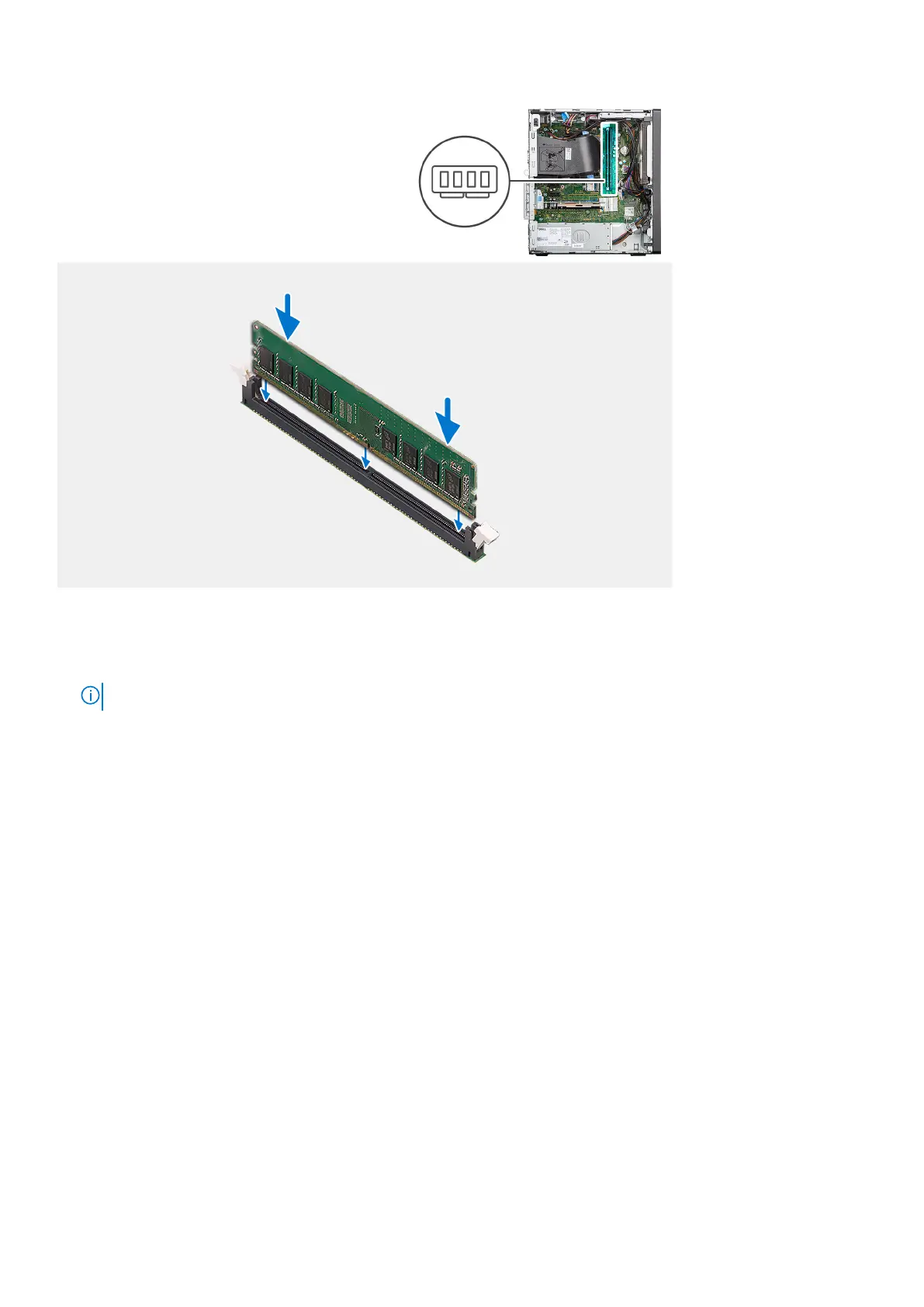

1. Align the notch on the memory module with the tab on the memory-module slot.
2. Slide the memory module firmly into the slot and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Solid-state drives
Solid-state drive (half-length)
Removing the M.2230 solid-state drives
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the M.2230 solid-state drives and provides a visual representation of the removal
procedure.
Removing and installing Customer Replaceable Units (CRUs)
51
