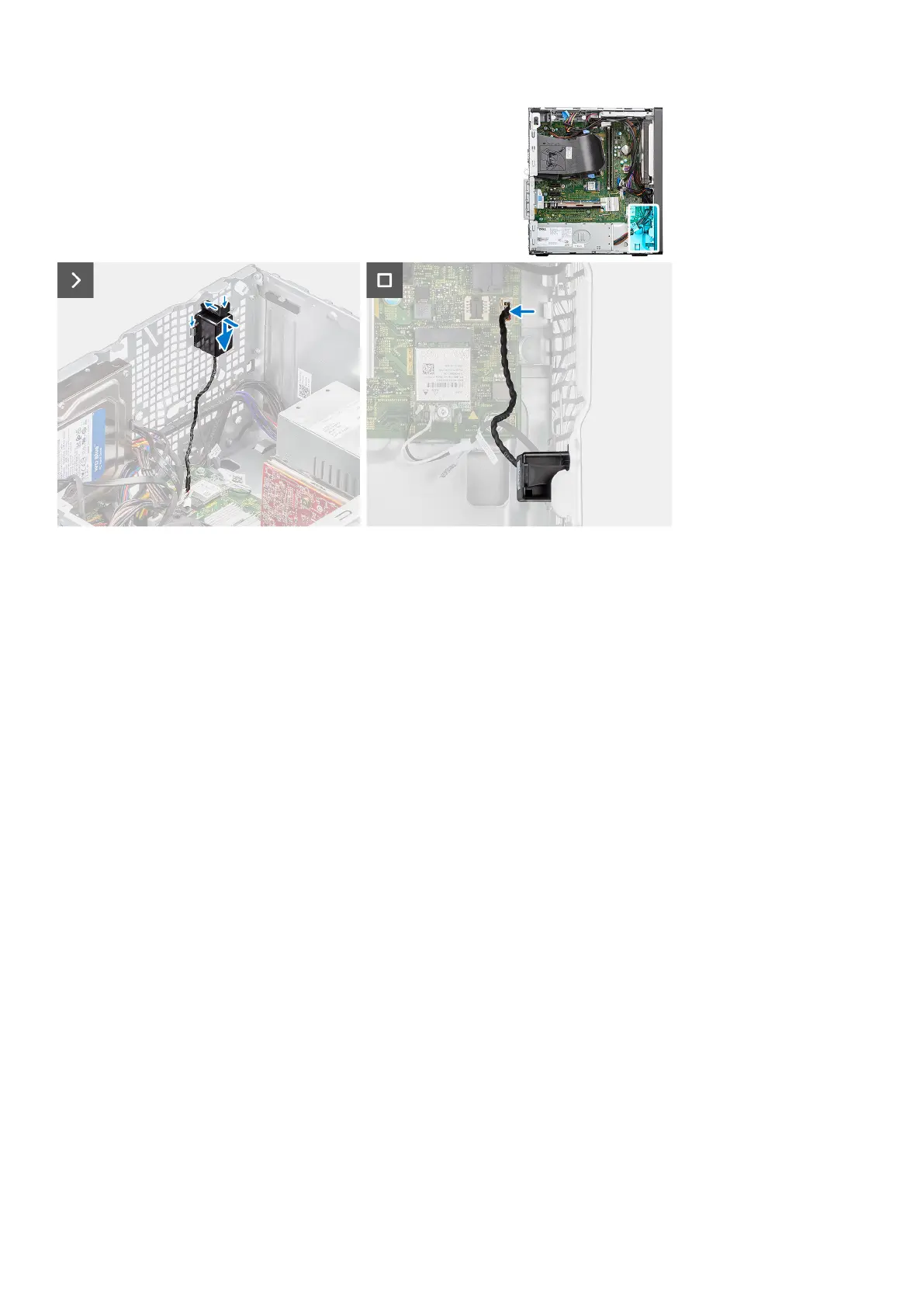

Steps
1. Press the tab on the speaker and slide the speaker into the slot on the chassis until it snaps into place.
2. Press down on the speaker to secure the speaker with the tab on the chassis.
3. Route the speaker cable through the routing guide on the chassis.
4. Connect the speaker cable to the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in After working inside your computer.
Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the coin-cell battery and provides a visual representation of the removal procedure.
Removing and installing Customer Replaceable Units (CRUs)
61
