Fan shroud
Removing the fan duct
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

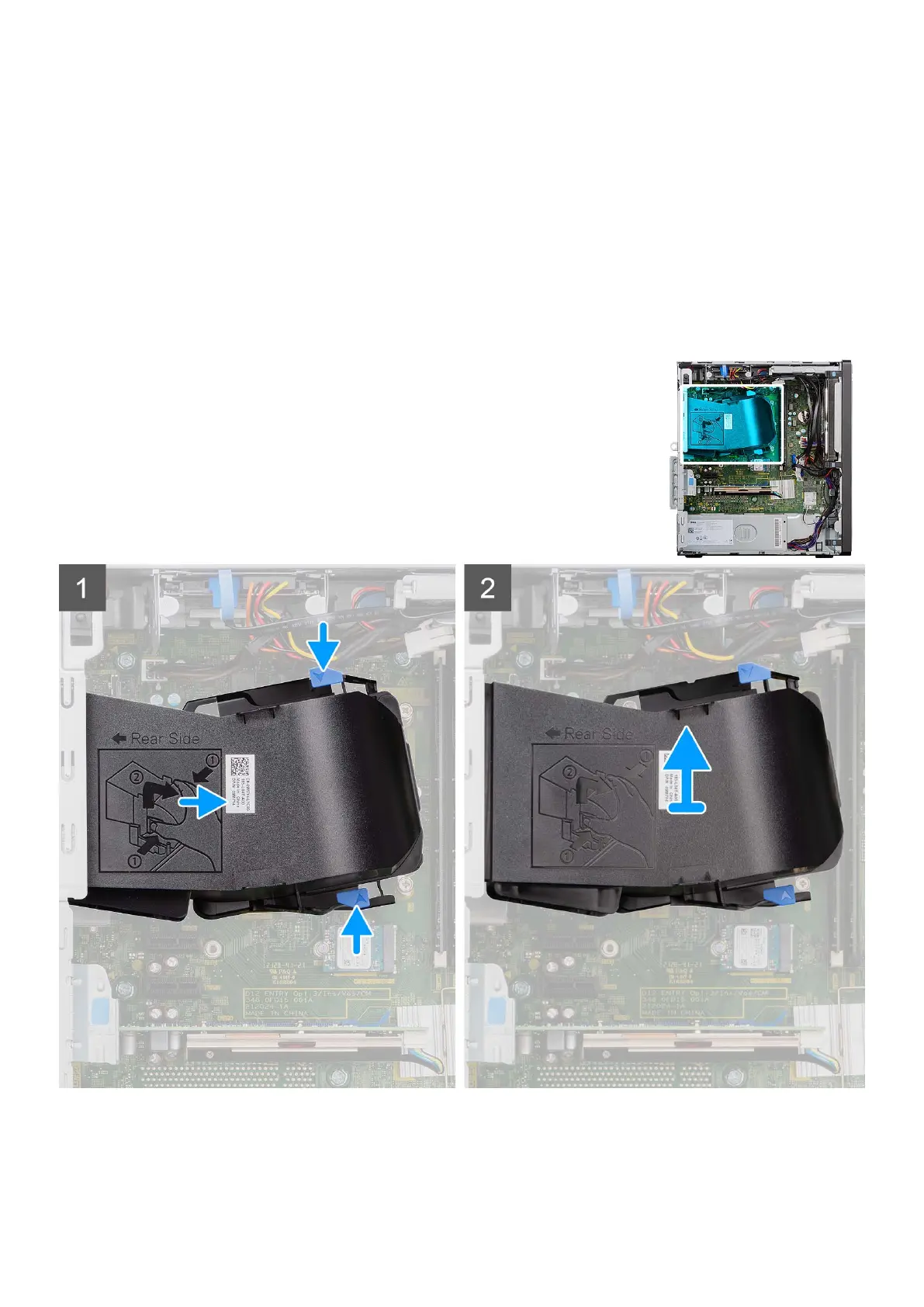

The following images indicate the location of the fan duct and provide a visual representation of the removal procedure.
Steps
1. Press the retention tabs on both sides of the fan duct to release it.
2. Pull and remove the fan duct from the computer.
Removing and installing Field Replaceable Units (FRUs)
73
