Installing the fan duct
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

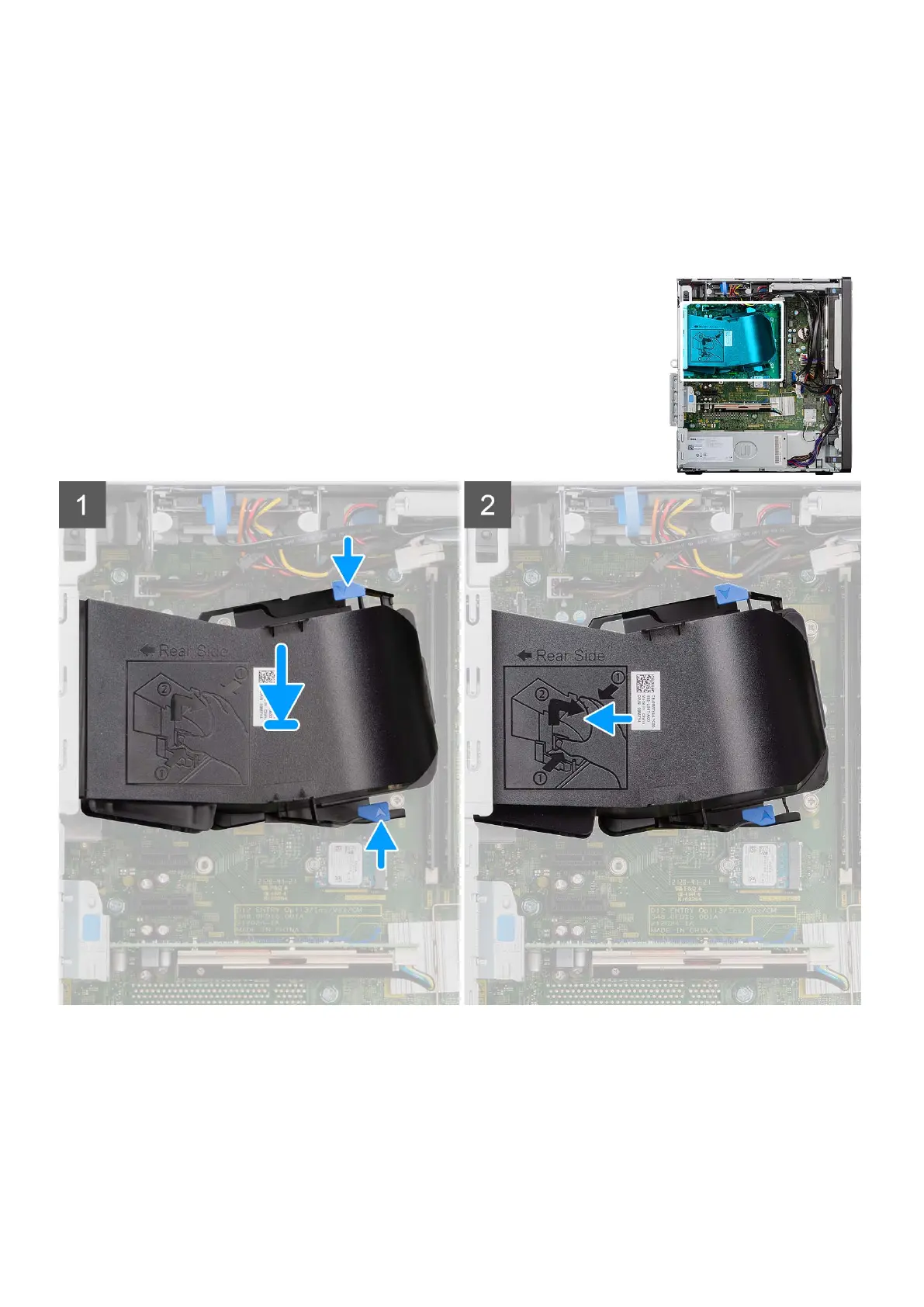

The following image indicates the location of the fan duct and provides a visual representation of the installation procedure.
Steps
1. Position the fan duct to align it with the slots on the computer chassis.
2. Press the fan duct until it clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
74
Removing and installing Field Replaceable Units (FRUs)
