NOTE: If you are replacing your old battery with the new battery, use the battery cable that came with the old battery.
If you want to replace the battery cable, it has to be purchase separately.
4. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

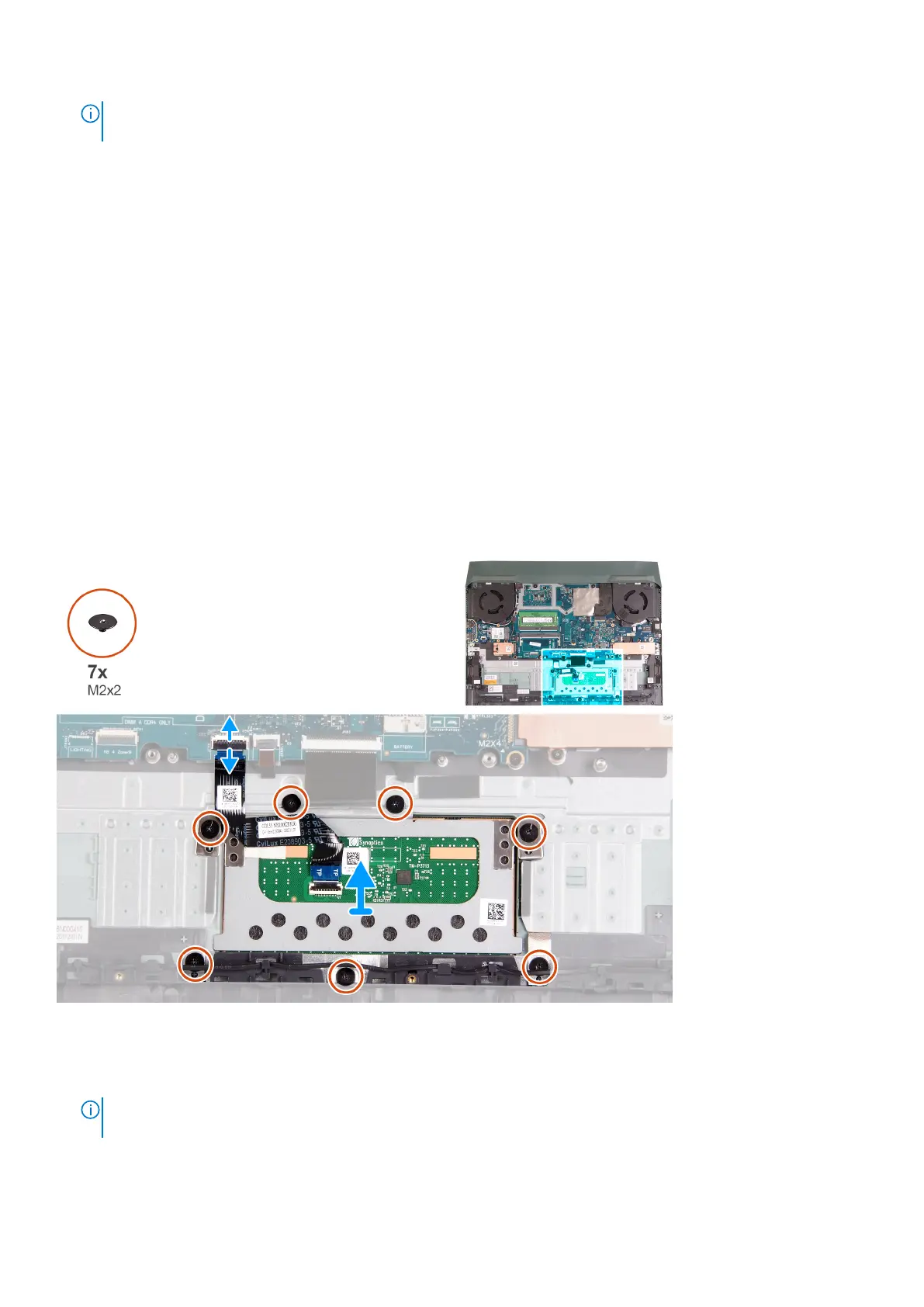

The following image indicates the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1. Remove the seven (M2x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly
2. Lift the touchpad bracket off the palm-rest and keyboard assembly.
NOTE:
After removing the touchpad, if the replacement touchpad is not installed immediately, replace the touchpad
bracket to the palm-rest and key board assembly.
3. Open the latch and disconnect the touchpad cable from the system board.
4. Lift the touchpad off the palm-rest and keyboard assembly.
Removing and installing components
17
