Dell G15 5510 User Manual

Installing the touchpad
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

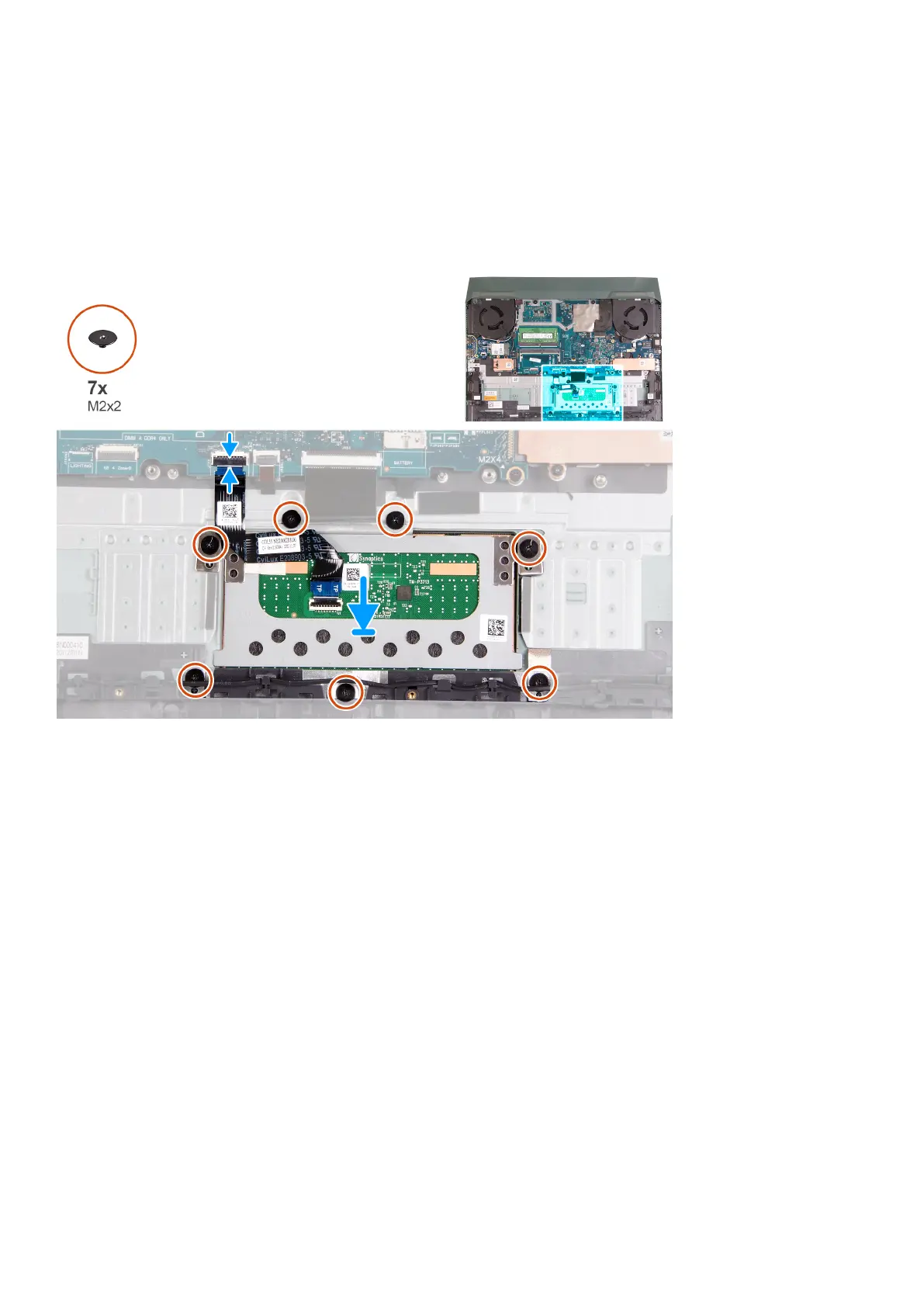

The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.
Steps
1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
2. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.
3. Replace the seven (M2x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
4. Connect the touchpad cable to the system board and close the securing latch.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Solid-state drives
Removing the 2230 solid-state drive in SSD slot one
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
18
Removing and installing components

Dell G15 5510 Specifications

General

Operating System	Windows 10 Home
Graphics	NVIDIA GeForce GTX 1650
Display	15.6-inch FHD (1920 x 1080) 120Hz
RAM	8GB DDR4
Storage	256GB, 512GB, or 1TB SSD
Battery	3-Cell, 56 WHr, Integrated
Ports	1x Headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Processor	10th Gen Intel Core i5-10200H, 10th Gen Intel Core i5-10500H, 10th Gen Intel Core i7-10870H
