Dell G15 5510 User Manual

USB board
Removing the USB board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive 1.
6. Remove the solid-state drive 2.
7. Remove the wireless card.
8. Remove the memory module.
9. Remove the right fan.
10. Remove the left fan.
11. Remove the system board.
NOTE: System board can be removed with the heat sink, I/O board and USB board attached.
About this task

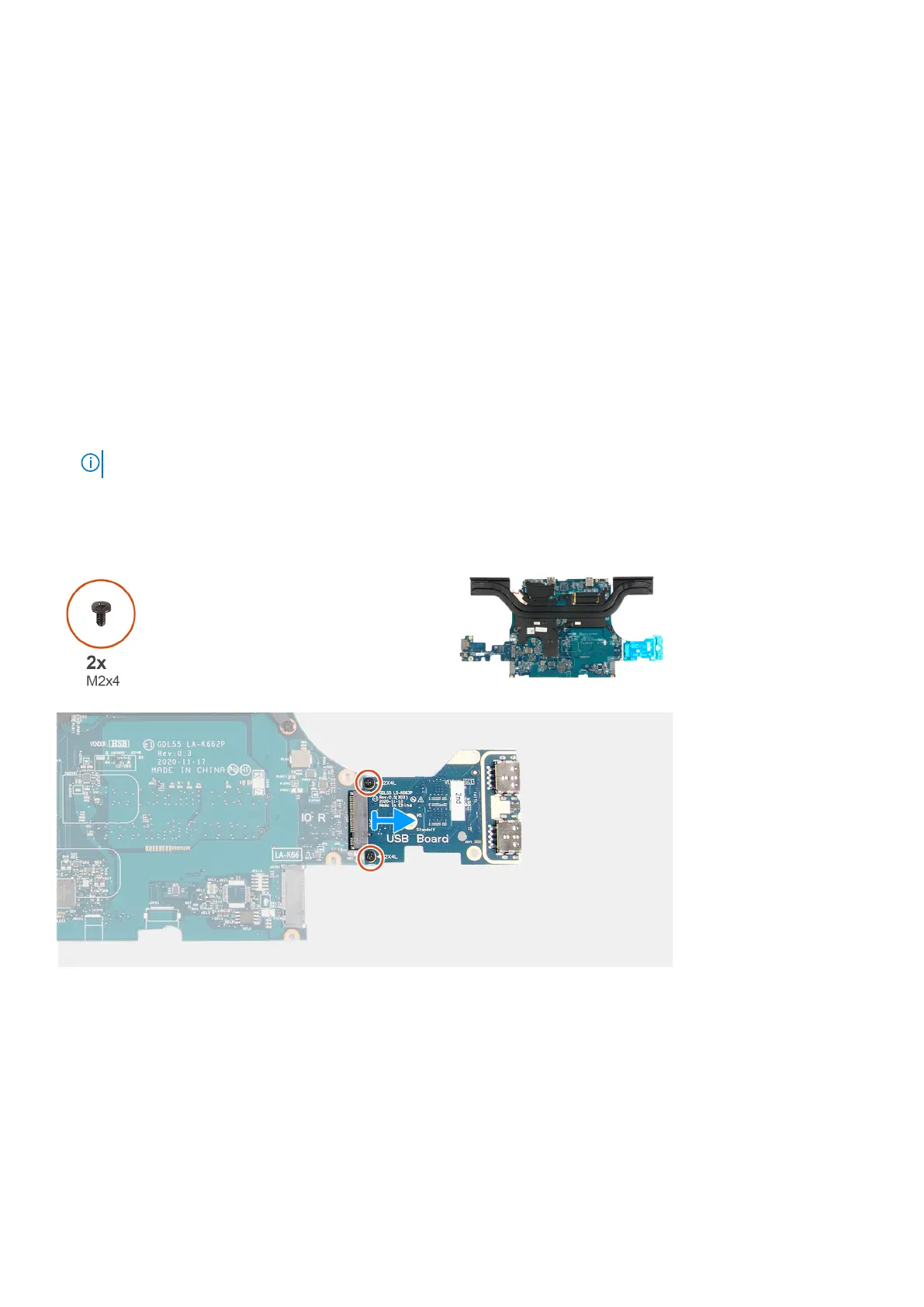

The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
Steps
1. Turn the system board over.
2. Remove the two screws (M2x4) that secure the USB board to the system board.
3. Remove the USB board from the system board.
Removing and installing components
49

Dell G15 5510 Specifications

General

Operating System	Windows 10 Home
Graphics	NVIDIA GeForce GTX 1650
Display	15.6-inch FHD (1920 x 1080) 120Hz
RAM	8GB DDR4
Storage	256GB, 512GB, or 1TB SSD
Battery	3-Cell, 56 WHr, Integrated
Ports	1x Headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Processor	10th Gen Intel Core i5-10200H, 10th Gen Intel Core i5-10500H, 10th Gen Intel Core i7-10870H
