Dell G15 5510 User Manual

Installing the I/O board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

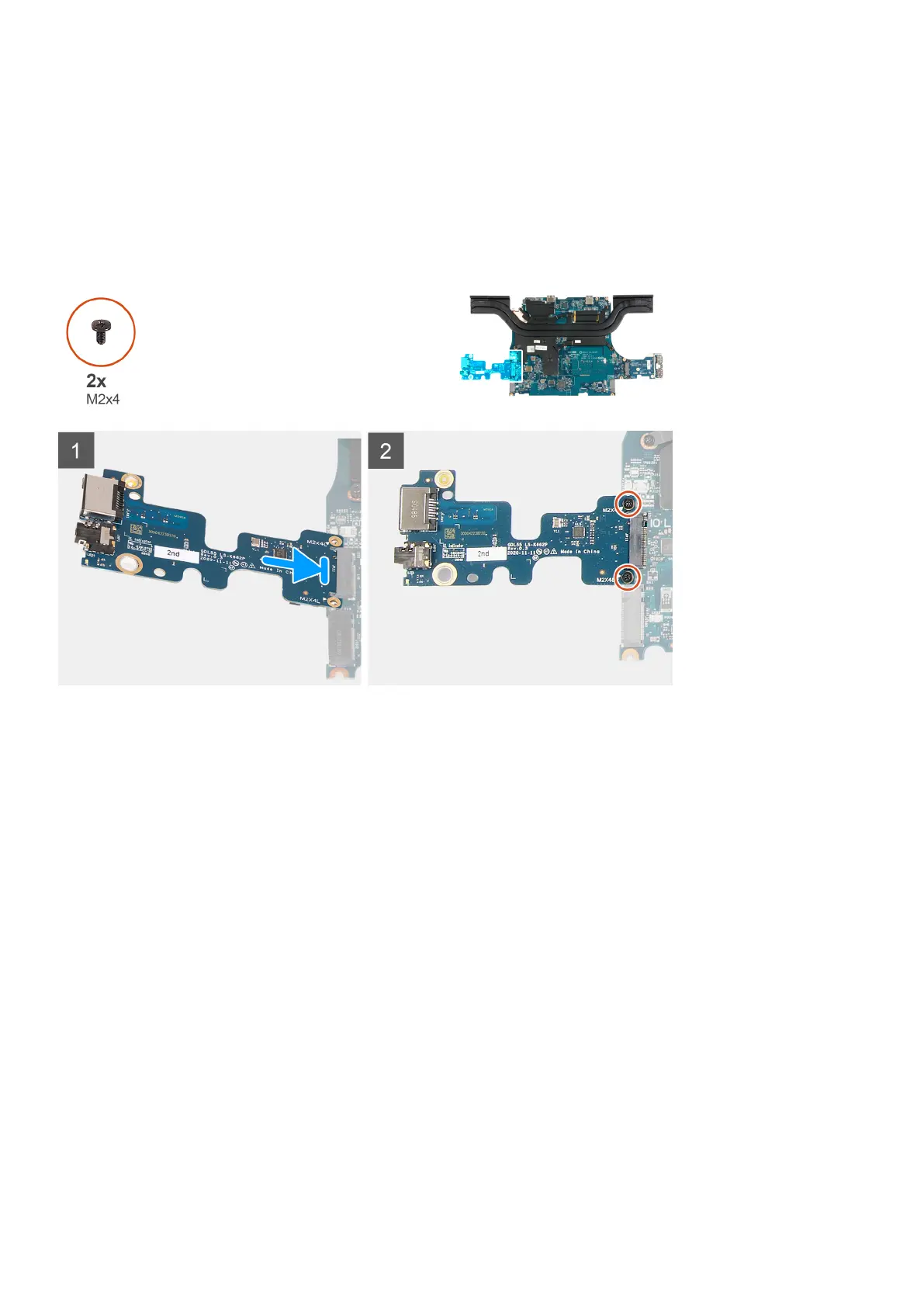

The following image indicates the location of the I/O board and provides a visual representation of the installation procedure.
Steps
1. Insert the I/O board at a 45 degree angle into the slot on the system board.
2. Align the screw holes on the I/O board with the screw holes on the system board.
3. Install the two screws (M2x4) that secure the I/O board to the system board.
4. Turn the system board to the front and align the screw holes on the system board with the screw holes on the palm-rest and
keyboard assembly.
Next steps
1. Install the system board.
2. Install the left fan.
3. Install the right fan.
4. Install the memory module.
5. Install the wireless card.
6. Install the solid-state drive 2.
7. Install the solid-state drive 1.
8. Install the rear cover
9. Install the battery.
10. Install the base cover.
11. Follow the procedure in After working inside your computer.
52
Removing and installing components

Dell G15 5510 Specifications

General

Operating System	Windows 10 Home
Graphics	NVIDIA GeForce GTX 1650
Display	15.6-inch FHD (1920 x 1080) 120Hz
RAM	8GB DDR4
Storage	256GB, 512GB, or 1TB SSD
Battery	3-Cell, 56 WHr, Integrated
Ports	1x Headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Processor	10th Gen Intel Core i5-10200H, 10th Gen Intel Core i5-10500H, 10th Gen Intel Core i7-10870H
