Dell G15 5510 User Manual

2. Remove the base cover.
3. Remove the rear cover.
About this task

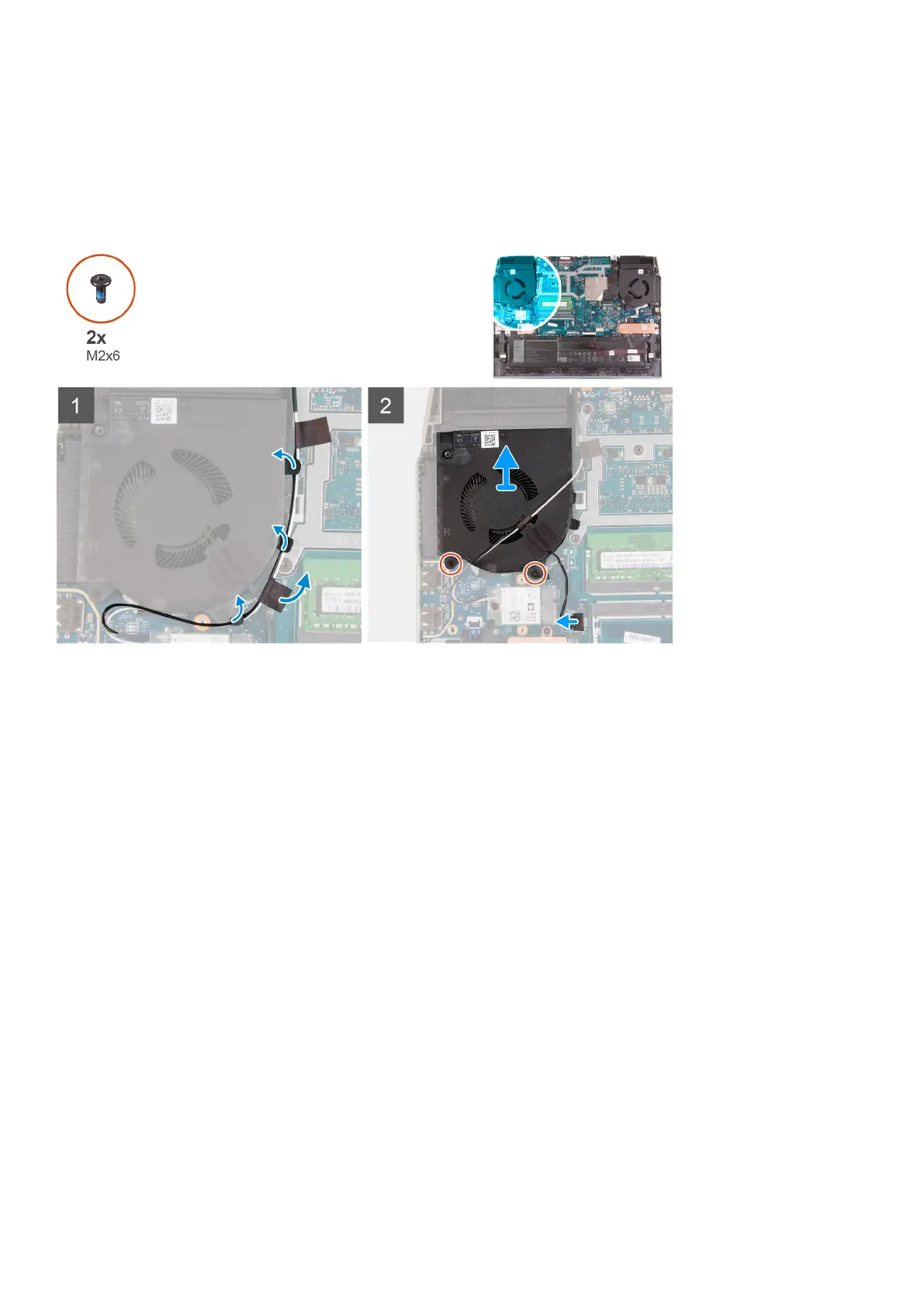

The following image indicates the location of the right fan and provides a visual representation of the installation procedure. The
orientation is based on the position of the fan when you are working on your computer.
Steps
1. Peel the tapes that secures the wireless-card cable to the system board.
2. Note the routing of the wireless-card cable and remove the wireless-card cable from the right fan.
3. Disconnect the fan cable from the system board.
4. Remove the two (M2x6) screws that secure the right fan to the system board.
5. Lift the right fan off the palm-rest and keyboard assembly.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the right fan and provides a visual representation of the installation procedure. The
orientation is based on the position of the fan when you are working on your computer.
Removing and installing components
37

Dell G15 5510 Specifications

General

Operating System	Windows 10 Home
Graphics	NVIDIA GeForce GTX 1650
Display	15.6-inch FHD (1920 x 1080) 120Hz
RAM	8GB DDR4
Storage	256GB, 512GB, or 1TB SSD
Battery	3-Cell, 56 WHr, Integrated
Ports	1x Headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Processor	10th Gen Intel Core i5-10200H, 10th Gen Intel Core i5-10500H, 10th Gen Intel Core i7-10870H
