Dell G15 5510 User Manual

2. Note the routing of the wireless-card cable and remove the wireless-card cable from the left fan.
3. Peel the tape and open the latch, and disconnect the display cable from the system board.
4. Flip the computer over and place the computer on a clean and flat surface.
5. Remove the wireless-card cable from the routing guides on the palm-rest and keyboard assembly.
6. Remove the eight screws (M2.5x4) that secure the display-assembly hinges to the palm-rest and keyboard assembly.
7. Lift the hinges from the palm-rest and keyboard assembly.
8. Slide and lift the display assembly off the palmrest and keyboard assembly.

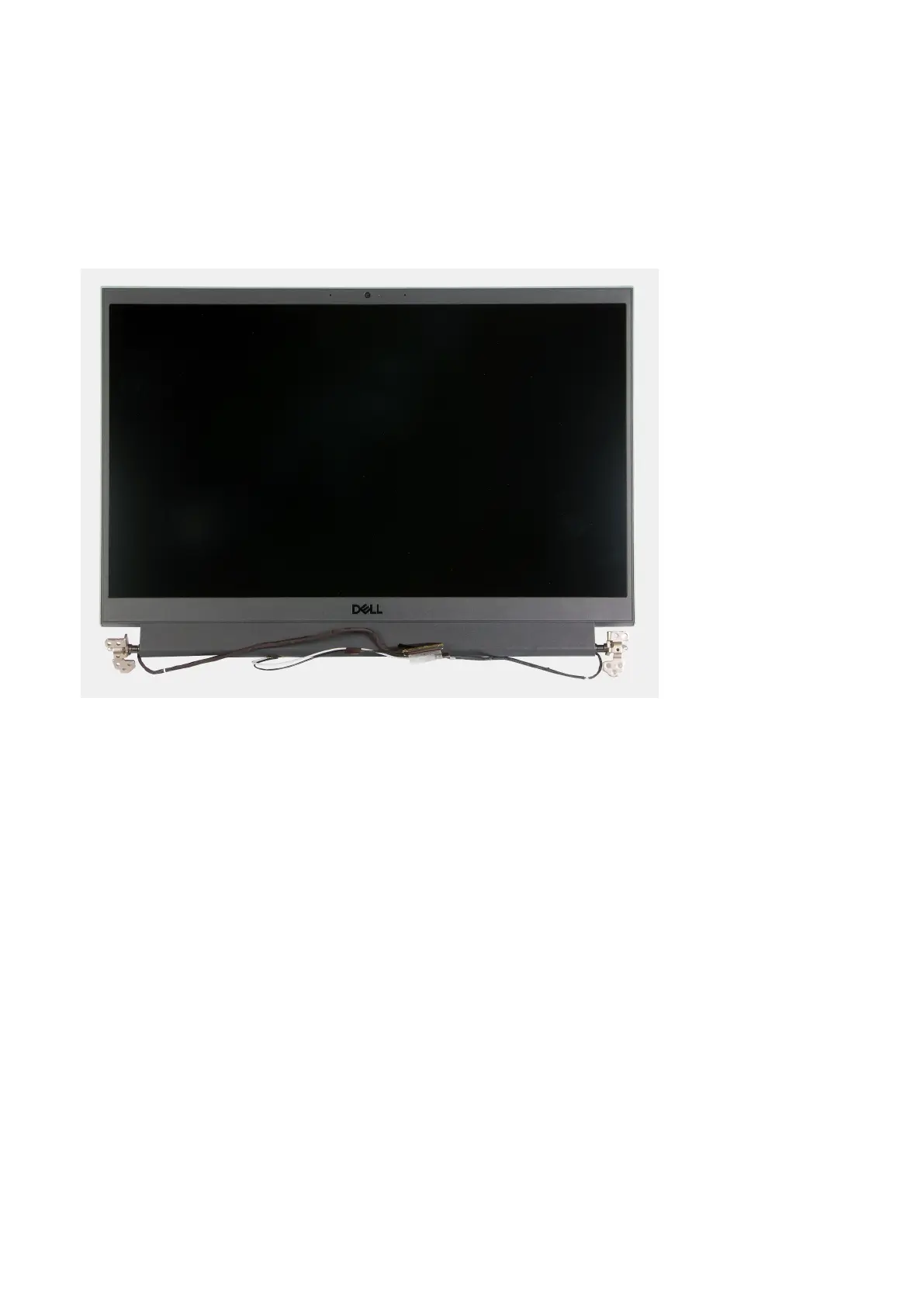

9. After performing all the above steps, you are left with the display assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the display assembly and provides a visual representation of the installation
procedure.
Removing and installing components
33

Dell G15 5510 Specifications

General

Operating System	Windows 10 Home
Graphics	NVIDIA GeForce GTX 1650
Display	15.6-inch FHD (1920 x 1080) 120Hz
RAM	8GB DDR4
Storage	256GB, 512GB, or 1TB SSD
Battery	3-Cell, 56 WHr, Integrated
Ports	1x Headphone/microphone combo jack
Wireless	Intel Wi-Fi 6 AX201, Bluetooth 5.1
Processor	10th Gen Intel Core i5-10200H, 10th Gen Intel Core i5-10500H, 10th Gen Intel Core i7-10870H
