4. Turn the display assembly over.
5. Connect the display cable to the connector on the system board and close the latch to secure the cable.
6. Adhere the tape that secures the display cable to the system board.
7. Route the wireless-card cable through the routing guides on the fan and adhere the tape that secures the wireless-card
cable to the system board .
Next steps
1. Install the wireless card.
2. Install the rear cover
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear cover.
About this task

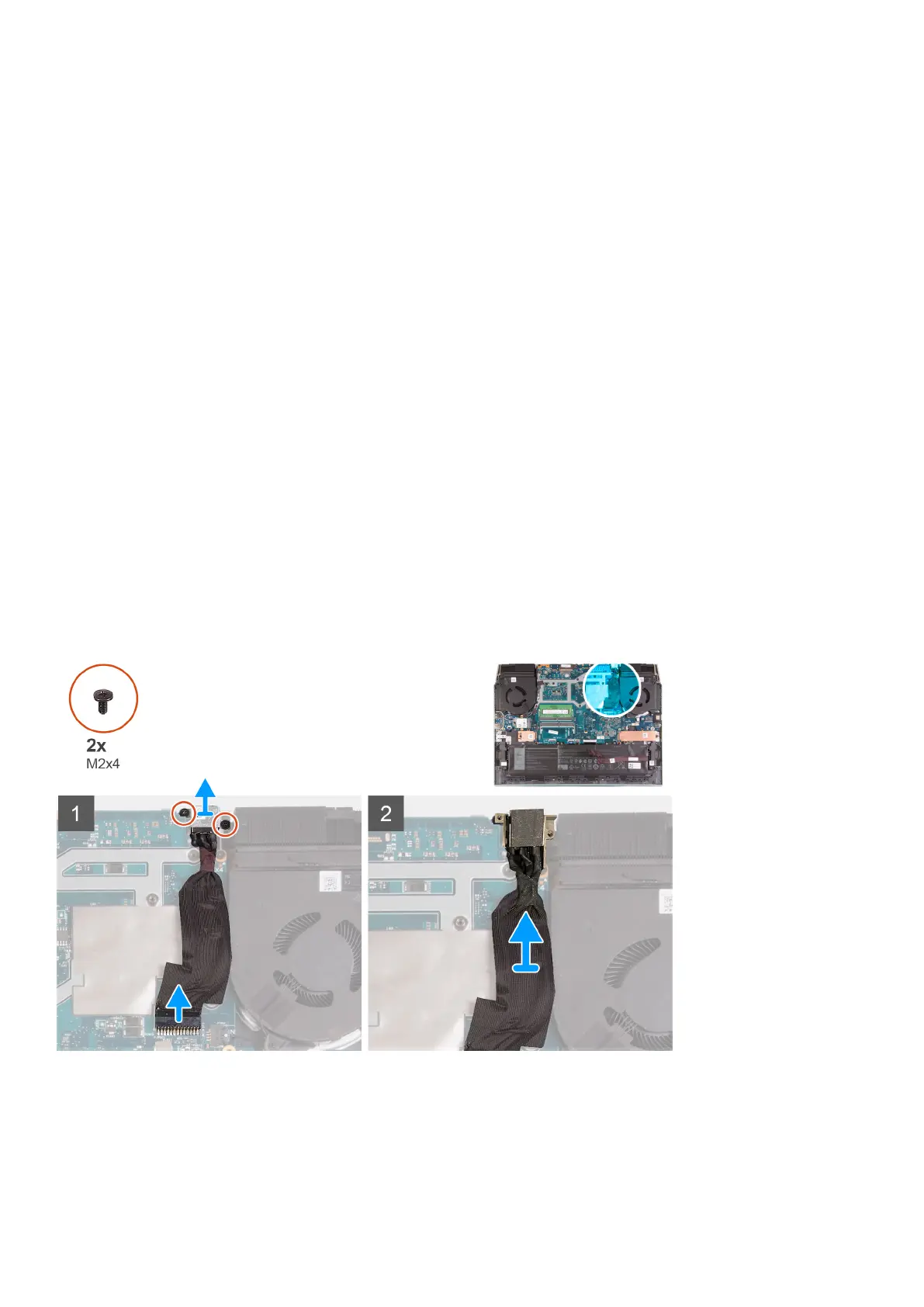

The following image indicates the location of the power-adapter port and provides a visual representation of the removal
procedure.
Steps
1. Remove the two screw (M2x4) on the power-adapter port-bracket that secures the power-adapter port to the system
board.
2. Remove the power-adapter port-bracket from the system board.
3. Disconnect the power-adapter port-cable from the system board.
Removing and installing components
35
