Dell Inspiron 14 5420 User Manual

Steps
1. Lift the Mylar to access the memory module.
2. Using your fingertips, carefully spread apart the securing-clips on each end of the memory-module slot until the memory
module pops-up.
3. Remove the memory module from the memory-module slot on the system board.
Installing the memory module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

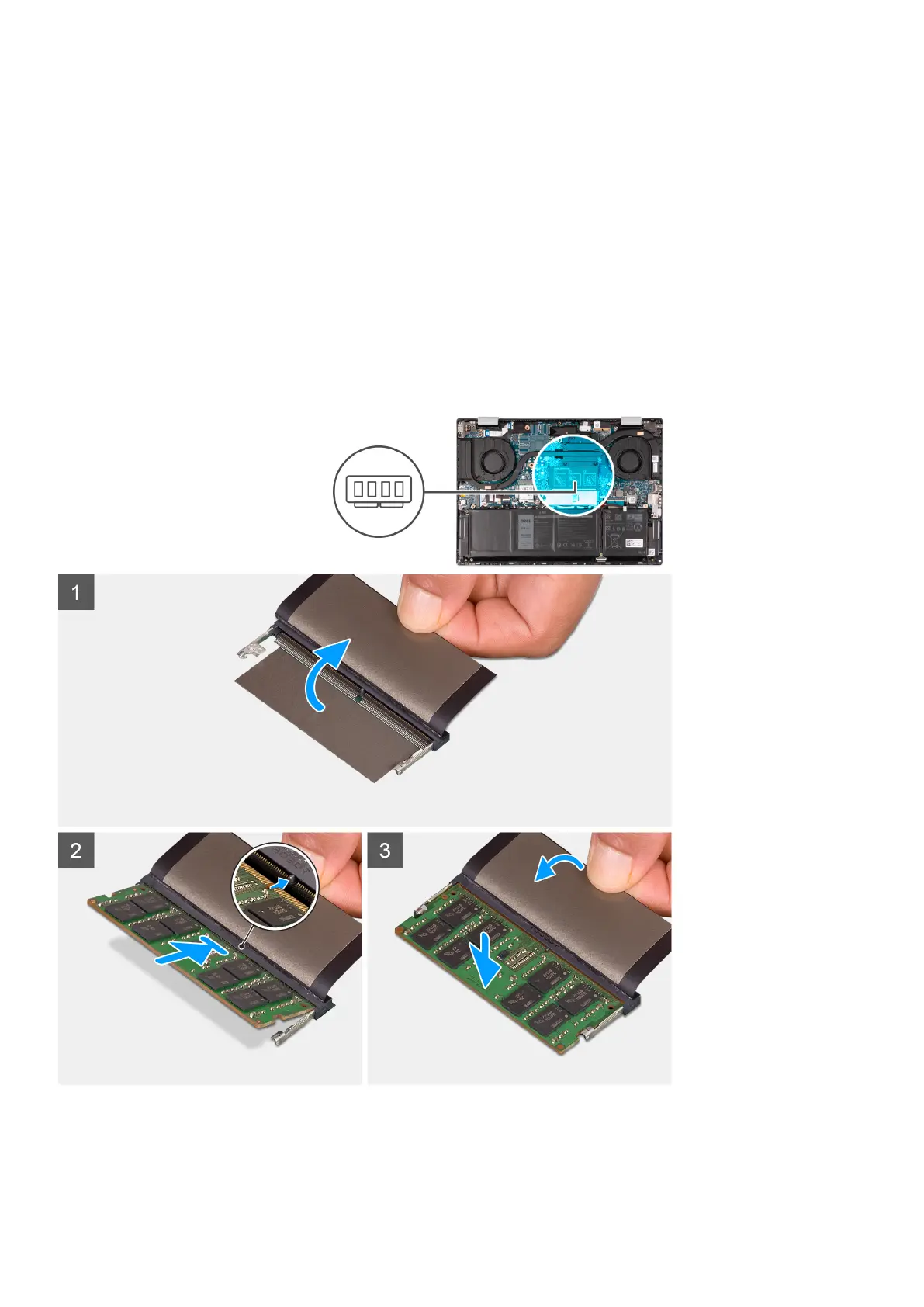

The following image(s) indicate the location of the memory module and provides a visual representation of the installation
procedure.
Steps
1. Lift the Mylar to access the memory-module slot.
2. Align the notch on the memory module with the tab on the memory-module slot on the system board.
Removing and installing components
25

Dell Inspiron 14 5420 Specifications

General

Graphics	Intel Iris Xe Graphics
Operating System	Windows 11 Home
Battery	4-Cell Battery, 54WHr (Integrated)
Processor	12th Gen Intel Core i5-1235U
Display	14-inch FHD (1920 x 1080)
RAM	8GB DDR4
Storage	256GB/512GB/1TB SSD
Ports	2 x USB 3.2 Gen 1
Wireless	Bluetooth
