4. Remove the power-adapter port cable from the routing guide on the palm-rest and keyboard assembly.
5. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

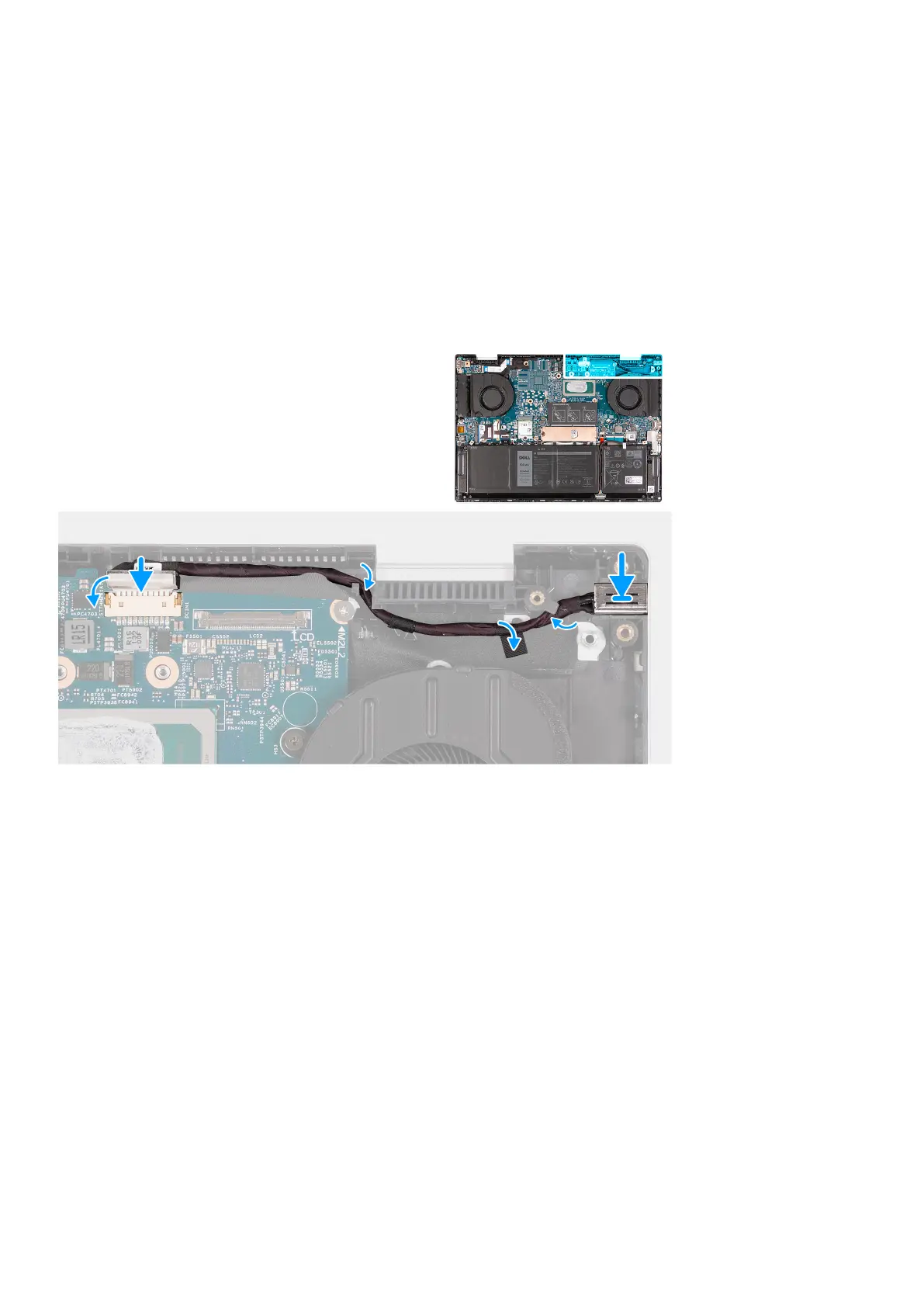

The following image(s) indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
Steps
1. Place the power-adapter port, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Route the power-adapter port cable through the routing guide on the palm-rest and keyboard assembly.
3. Adhere the tape that secures the power-adapter port cable to the palm-rest and keyboard assembly.
4. Connect the power-adapter port cable to the system board.
5. Adhere the tape that secures the power-adapter port cable to the system board.
Next steps
1. Install the heat sink.
2. Install the display assembly.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
