Dell Inspiron 14 5420 User Manual

Steps

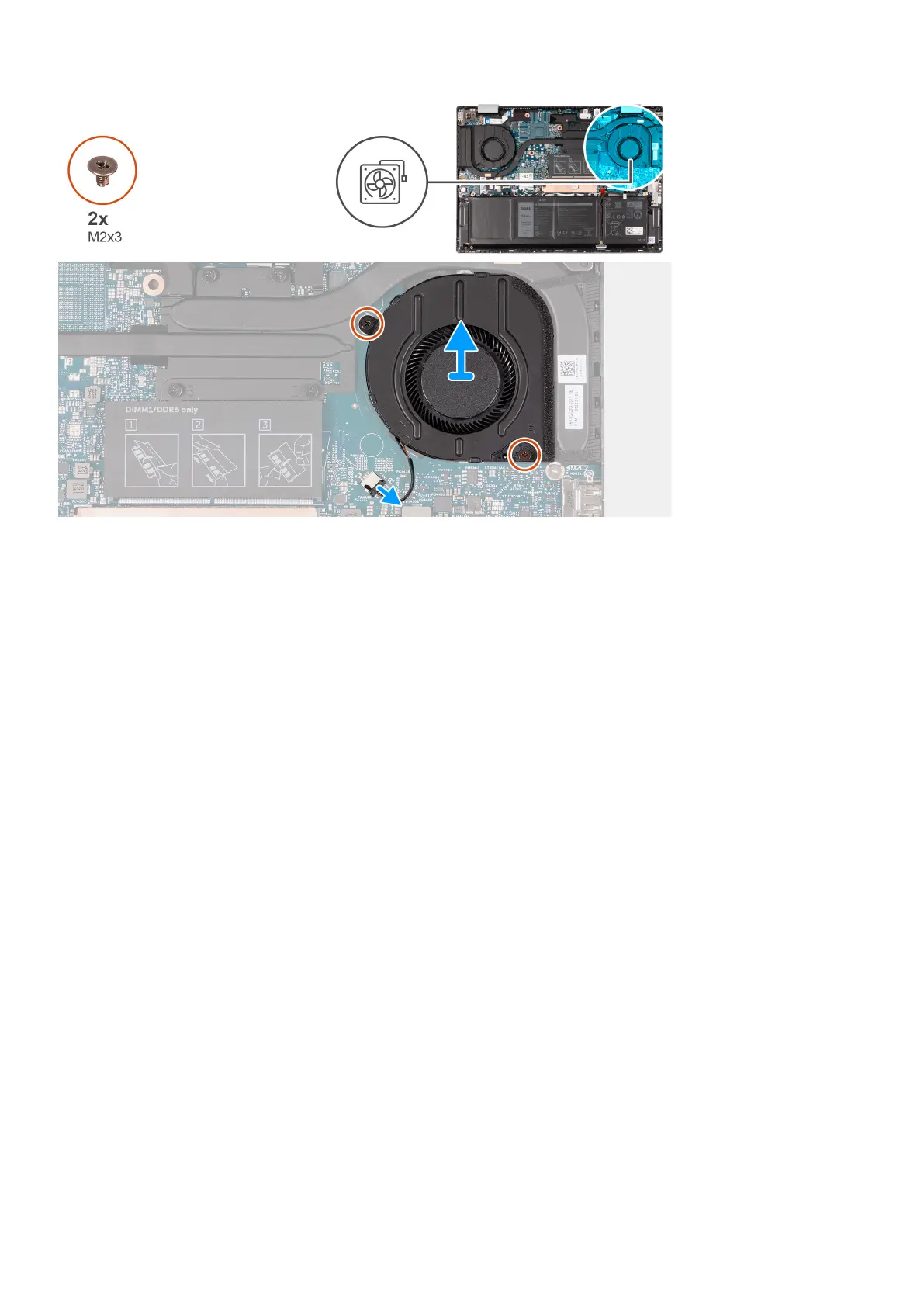

1. Disconnect the right fan cable from the system board.
2. Remove the two screws (M2x3) that secure the right fan to the palm-rest and keyboard assembly.
3. Lift the right fan off the palm-rest and keyboard assembly.
Installing the right fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the fan and provides a visual representation of the installation procedure.
Removing and installing components
37

Dell Inspiron 14 5420 Specifications

General

Graphics	Intel Iris Xe Graphics
Operating System	Windows 11 Home
Battery	4-Cell Battery, 54WHr (Integrated)
Processor	12th Gen Intel Core i5-1235U
Display	14-inch FHD (1920 x 1080)
RAM	8GB DDR4
Storage	256GB/512GB/1TB SSD
Ports	2 x USB 3.2 Gen 1
Wireless	Bluetooth
