Adding Parts 55
Connecting External Devices to the APR
HINT: If the cable
connector from the
external device has
thumbscrews, be sure to
tighten them to ensure a
proper connection.
1

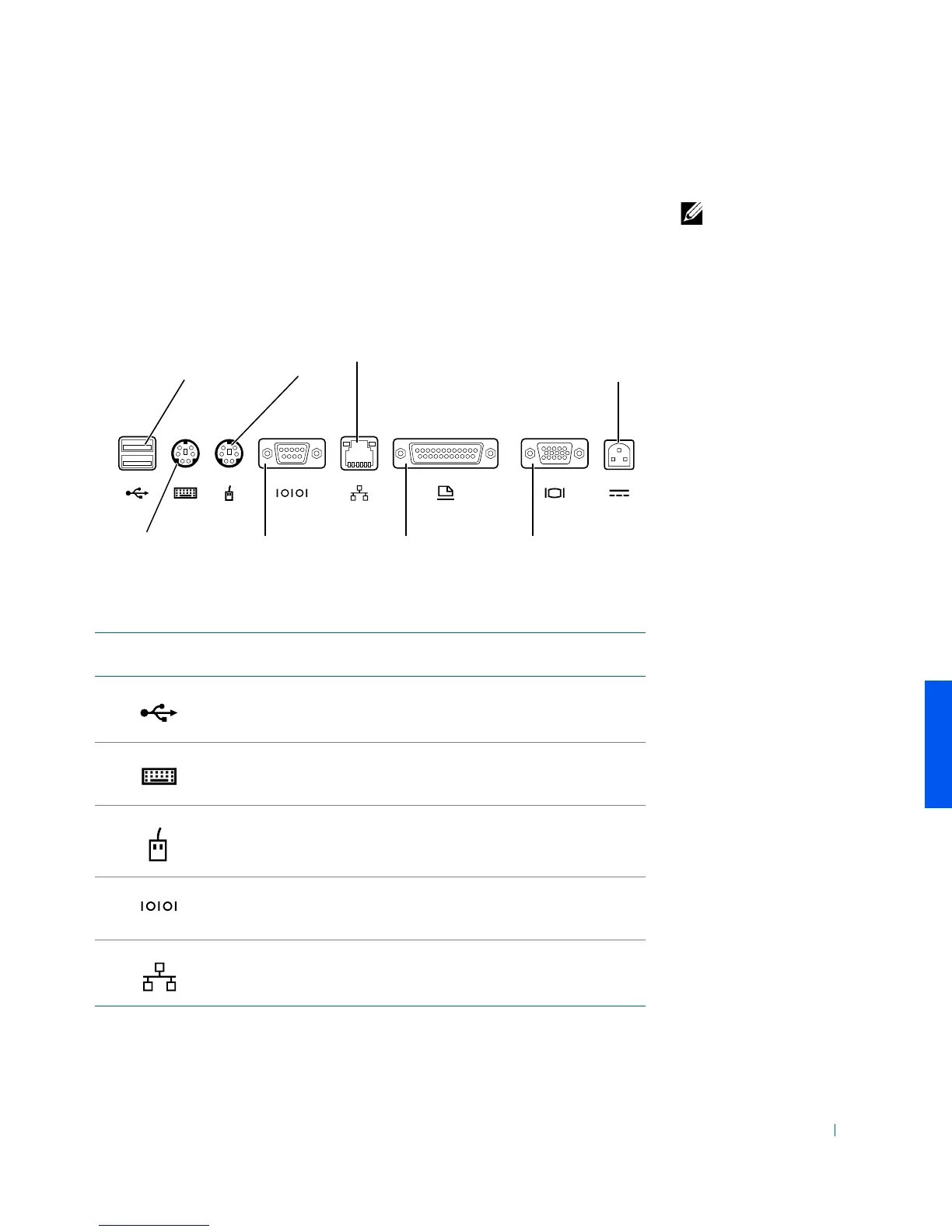

See the following illustrations for connector locations.
2
Connect the external devices to an electrical outlet, if applicable.
The I/O connectors on the back and side of the APR duplicate the primary
connectors on the back and side of your computer.
Connector Icon Connector Description
Connect one or two USB devices, such as a
USB mouse.
Connect a PS/2-style keyboard or numeric
keypad.
Connect a PS/2-compatible mouse.
Connect a serial device, such as a serial
mouse or digital camera.
Connect a network interface cable.
keyboard
connector
serial port
connector
U
B
connectors (2)
parallel port
connector
NI
connector
video
connector
mouse
connector
A
a
apter
connector
